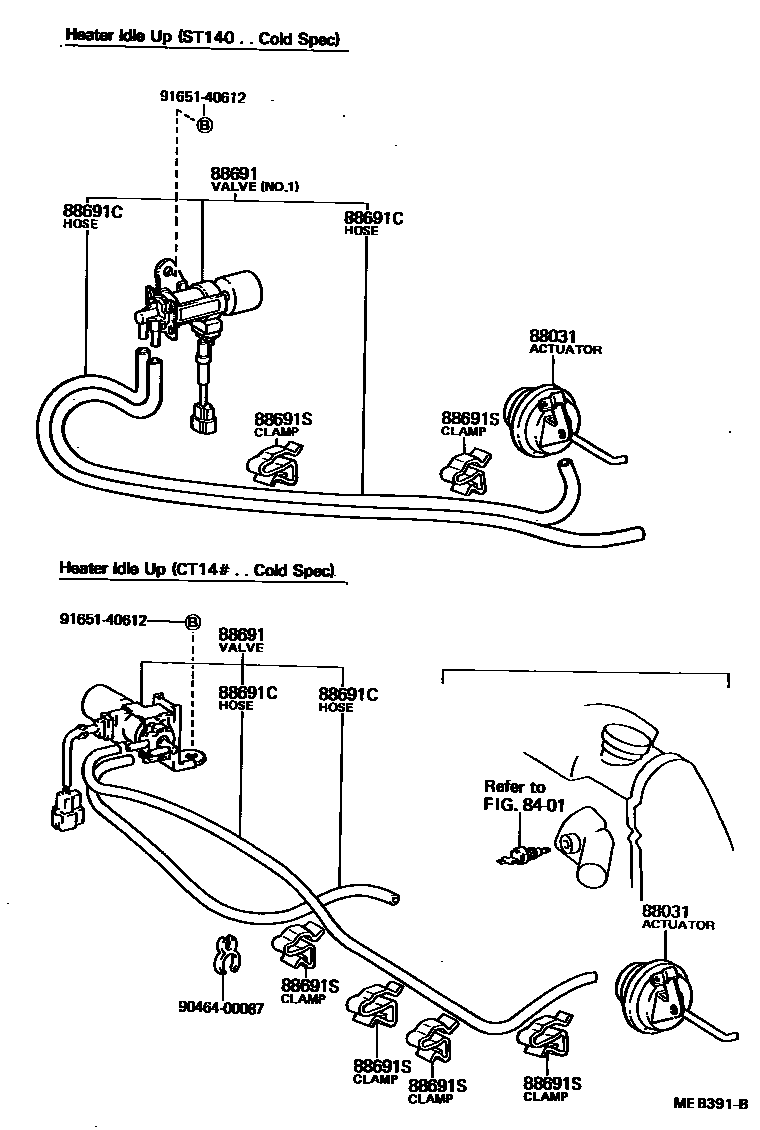

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

88031ACTUATOR SET, IDLE-UP

main21908-72010iYT140198209-199804

main88031-12060iTT147198201-198310

main88031-12090iAT140198201-198712

main88031-12110iKT147198310-198712

main88031-12120iCT14#198201-199111

HEATER IDLE UP

main88031-12150iCT14#198201-199111

COOLER IDLE UP

main88031-14010iST140198201-198712

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-14540iTT147198201-198310

main88690-14620iST140198201-198712

NO.1

main88690-14630iRT141198201-198210

main88690-14640iTT142..SX198201-198310

main88690-14690iST140..SED198306-198712

NO.2

main88690-14710iAT140198201-198712

main88690-14770iTT142198310-198508

W/PS

main88690-14790iAT141; TT142198310-198508

W/O PS

main88690-20430iCT14#198201-199111

HEATER IDLE UP

main88690-20440iCT14#198201-199111

COOLER IDLE UP

main88690-20450iYT140198209-198407

main88690-20460iST140..HT198306-198508

NO.2

main88690-20610iYT140198407-199804

main88690-24010iKT147198310-198712

88691CHOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

main90445-08209iCT14#198201-198505

main90445-08218iCT14#198508-198803

main90999-92003iCT141198803-199111

main90999-92004iYT140198803-199804

main90999-92007iCT141198803-199111

*H,L=1500,MARK=#*,*HIU

main95411-10030iAT140198201-198712

main95411-10060iCT141198612-198803

main95411-10095iYT140198209-198407

main95411-19930iST140198201-198712

main95411-19960iYT140198209-198407

main95411-19995iKT147198310-198712

88691SCLAMP (FOR IDLE UP DIVICE), NO.1

main90468-04021×4iCT14#,ST140198201-199111

9046400087

main90464-00087

9165140612

main91651-40612

7 parts on this diagram · 6 diagrams in section
