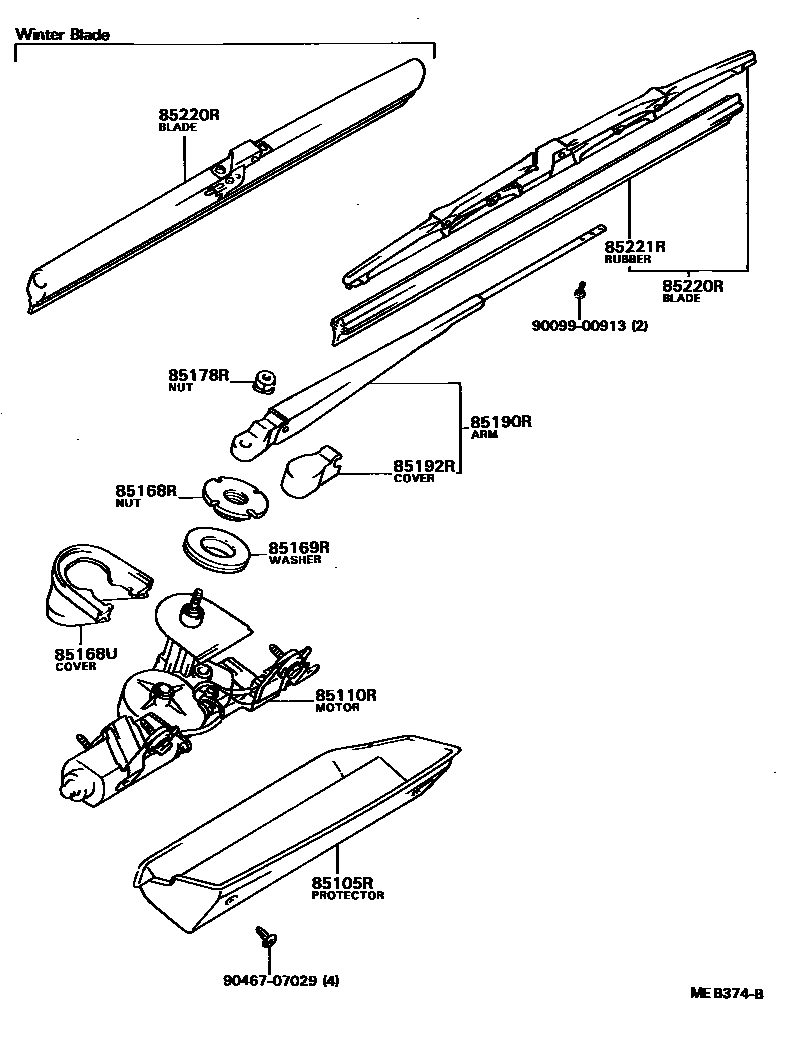

REAR WIPER

0001 1 0002 1

85105RPROTECTOR, REAR WIPER

main85105-91D01iAT141,RT141,TT142..HT198201-198508

85110RMOTOR ASSY, REAR WIPER

main85110-91D01iAT141,RT141,TT142..HT198201-198508

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05141iCT147,KT147,TT147..DLX,GX198201-198712

main90099-05150iAT141,RT141,TT142..HT198201-198502

main90179-22013iAT141,TT142..HT198502-198508

85168UCOVER, REAR WIPER

main85168-91D01iAT141,RT141,TT142..HT198201-198508

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-22130iAT141,RT141,TT142..HT198201-198508

main90099-01458iCT147,KT147,TT147..DLX,GX198201-198712

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iRT141,TT142..HT198201-198712

85190RARM ASSY, REAR WIPER

main85190-24021iAT141,TT142..HT198302-198508

main85190-91C01iCT147,TT147..DLX,GX198201-198308

main85190-91C03iCT147,KT147,TT147..DLX,GX198308-198712

main85190-91D01iRT141,TT142..HT198201-198302

85192RCOVER, REAR WIPER ARM

main85192-14020iAT141,RT141,TT142..HT198201-198712

sub85192-13060

85220RBLADE ASSY, REAR WIPER

main85220-14400iCT147,KT147..DLX,GX198310-198712

main85220-20080iAT141,RT141,TT142..HT198201-198508

WINTER BLADE

sub85220-20H90

main85220-22370iAT141,TT142..HT198302-198508

sub85220-22600

main85220-91C01iCT147,TT147..DLX,GX198201-198310

sub85220-14400

main85220-91D01iRT141,TT142..HT198201-198302

sub85220-22370

85221RBLADE, REAR WIPER

main85221-87002iAT141,TT142..HT198302-198508

sub85214-12H90

main85221-91C01iCT147,KT147,TT147..DLX,GX198201-198712

sub85214-12H90

main85221-91D01iRT141,TT142..HT198201-198302

sub85221-22090

9009900913

main90099-00913

9046707029

main90467-07029

12 parts on this diagram · 2 diagrams in section
