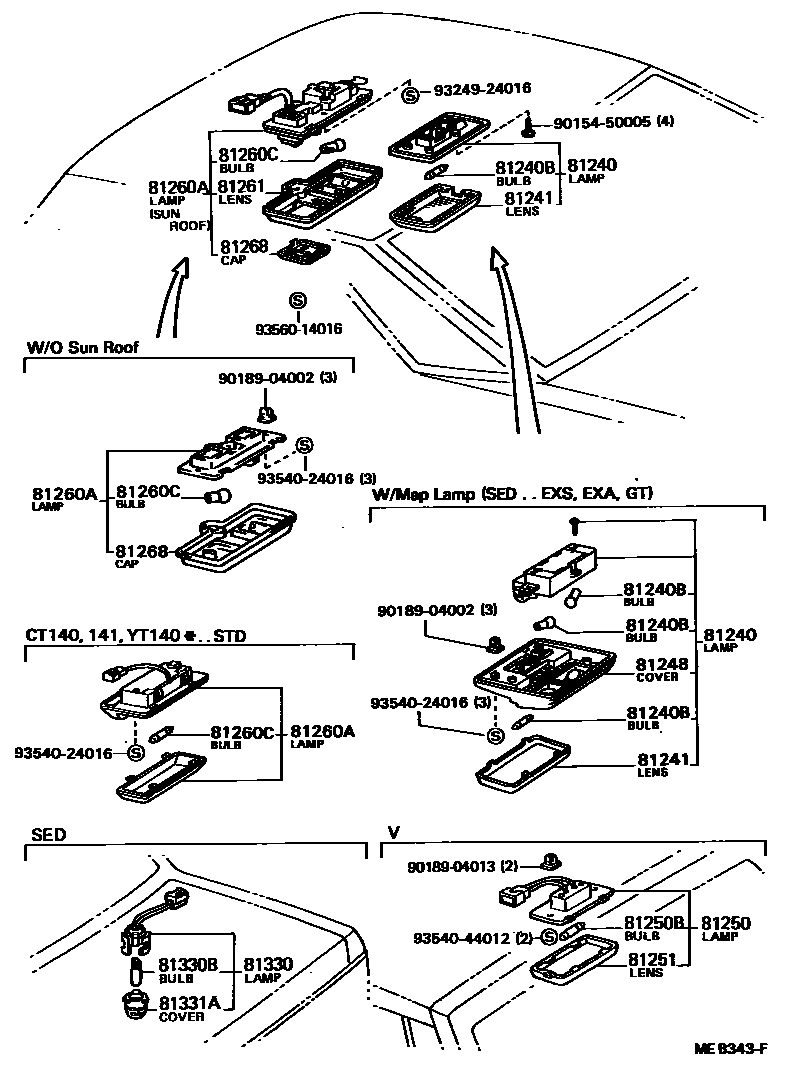

INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-16010-08iAT140,CT140,RT141,ST140,TT142..SED..(DLX,GT,GX,GXA,SX); CT140,ST140..SED..(EXA,EXS); RT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX)198201-198310

IVORY,IVORY,TRIM4#; IVORY,W/SUN ROOF,IVORY,TRIM4#

main81240-16010-13iAT14#,CT140,RT141,ST140,TT142,YT140..SED..(DLX,GT,GTT,GX,GXA,STD,SX)198201-198603

GRAY,GRAY,TRIM2#,8#

main81240-20060-08iCT147,KT147,TT147..DLX,GX198201-198603

IVORY,IVORY,TRIM4#

main81240-20060-13iCT147,KT147,TT147198201-198603

GRAY,GRAY,TRIM2#

main81240-20070-03iCT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT)198201-198211

W/MAP LAMP,GRAY,GRAY,TRIM2#,8#

main81240-20070-08iCT140,ST140..SED..(EXA,EXS)198211-198310

W/MAP LAMP,IVORY,IVORY,TRIM4#

main81240-22070-13iCT141,YT140198612-199804

GRAY,SHADOW GRAY,TRIM2#

main81240-22070-18iCT147,KT147..DLX,GX198603-198712

IVORY,IVORY,TRIM4#

main81240-22070-23iCT147,KT147198603-198712

GRAY,GRAY,TRIM2#

main81240-22080-23iAT140,CT140,ST140,YT140198603-198608

GRAY,GRAY,TRIM2#,8#

main81240-22081-23iAT140,ST140198612-198712

GRAY,GRAY,TRIM2#,8#

81240BBULB, ROOM LAMP, NO.1

main90981-12005×2iCT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT)198201-198211

main99132-12100iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

81241LENS, ROOM LAMP, NO.1

main81241-16010iAT141,RT141,ST140,TT142..HT198201-198508

main81241-20060iAT140,CT140,141,ST140,YT140198603-199804

main81241-20070iCT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT)198201-198211

W/MAP LAMP

81248COVER, ROOM LAMP, NO.1

main81248-20070-03iCT140,ST140..SED..(EXA,EXS)198211-198310

W/MAP LAMP,GRAY,GRAY,TRIM8#

main81248-20070-08iCT140,RT141,ST140..SED..(EXA,EXS,GT)198201-198211

W/MAP LAMP,IVORY,IVORY,TRIM4#

81250LAMP ASSY, ROOM, NO.2

main81250-91C01iCT147,KT147,TT147198201-198712

81250BBULB, ROOM LAMP, NO.2

main99132-12100iCT147,KT147,TT147198201-198712

81251LENS, ROOM LAMP, NO.2

main81251-23010iCT147,KT147,TT147198201-198712

81260LAMP ASSY, GLOVE BOX

main81260-22070iAT140..DLX198201-198310

81260ALAMP ASSY, MAP

main81260-14060-03iAT141,ST140,TT142..EXS,GT,GTT198401-198508

W/SUN ROOF,GRAY,GRAY,TRIM2#,8#

main81260-20060-03iAT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,SX198201-198401

W/SUN ROOF,GRAY,GRAY,TRIM2#,8#

main81260-20060-08iCT140,RT141,ST140,TT142..EXA,EXS,GT,SX; ST140..HT..GX198201-198310

W/SUN ROOF,IVORY,IVORY,TRIM4#

main81260-20070-03iCT140,ST140..SED..(EXA,EXS)198211-198310

GRAY,GRAY,TRIM8#

main81260-20070-08iCT140,RT141,ST140..SED..(EXA,EXS,GT)198201-198211

IVORY,IVORY,TRIM4#

main81260-20120iCT141,YT140198612-199804

main81260-30090-13iCT140,YT140..DLX,STD198201-198612

GRAY,GRAY,TRIM2#

81260CBULB(FOR MAP LAMP)

main90981-11019iAT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,SX198201-198401

12V 10W,W/SUN ROOF

main90981-12005×2iCT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT)198201-198211

main90981-12014iAT141,ST140,TT142..EXS,GT,GTT198401-198508

main90981-14004iCT141,YT140198612-199804

main99132-12100iCT140,YT140..DLX,STD198201-198612

81261LENS AND COVER, MAP LAMP

main81261-20060-03iCT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,SX; ST140..HT..GX198201-198310

W/SUN ROOF,GRAY,GRAY,TRIM2#,8#

main81261-20060-08iCT140,RT141,ST140,TT142..EXA,EXS,GT,SX; ST140..HT..GX198201-198310

W/SUN ROOF,IVORY,IVORY,TRIM4#

main81261-20061-03iAT141,ST140,TT142..EXS,GT,GTT198310-198508

W/SUN ROOF,GRAY,GRAY,TRIM2#,8#

main81261-20061-08iAT141,ST140,TT142..HT..(EXS,GT,GTT)198310-198508

W/SUN ROOF,IVORY,IVORY,TRIM4#

81268CAP MAP LAMP

main81268-20060-03iAT141,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,SX198201-198508

W/SUN ROOF,GRAY,GRAY,TRIM2#,8#

main81268-20060-08iCT140,RT141,ST140,TT142..EXA,EXS,GT,SX; ST140..HT..GX198201-198310

W/SUN ROOF,IVORY,IVORY,TRIM4#

main81268-20070-03iCT140,ST140..SED..(EXA,EXS)198211-198310

GRAY,GRAY,TRIM8#

main81268-20070-08iCT140,RT141,ST140..SED..(EXA,EXS,GT)198201-198211

IVORY,IVORY,TRIM4#

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-22030iCT140,ST140..EXA,EXS198201-198310

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iST140,TT142..EXS,GTT198310-198508

81331ACOVER, LUGGAGE COMPARTMENT LAMP

main81331-22030iCT140,ST140..EXA,EXS198201-198310

9015450005

main90154-50005

9018904002

main90189-04002

9018904013

main90189-04013

9324924016

main93249-24016

9354024016

main93540-24016

9354044012

main93540-44012

9356014016

main93560-14016

22 parts on this diagram · 2 diagrams in section
