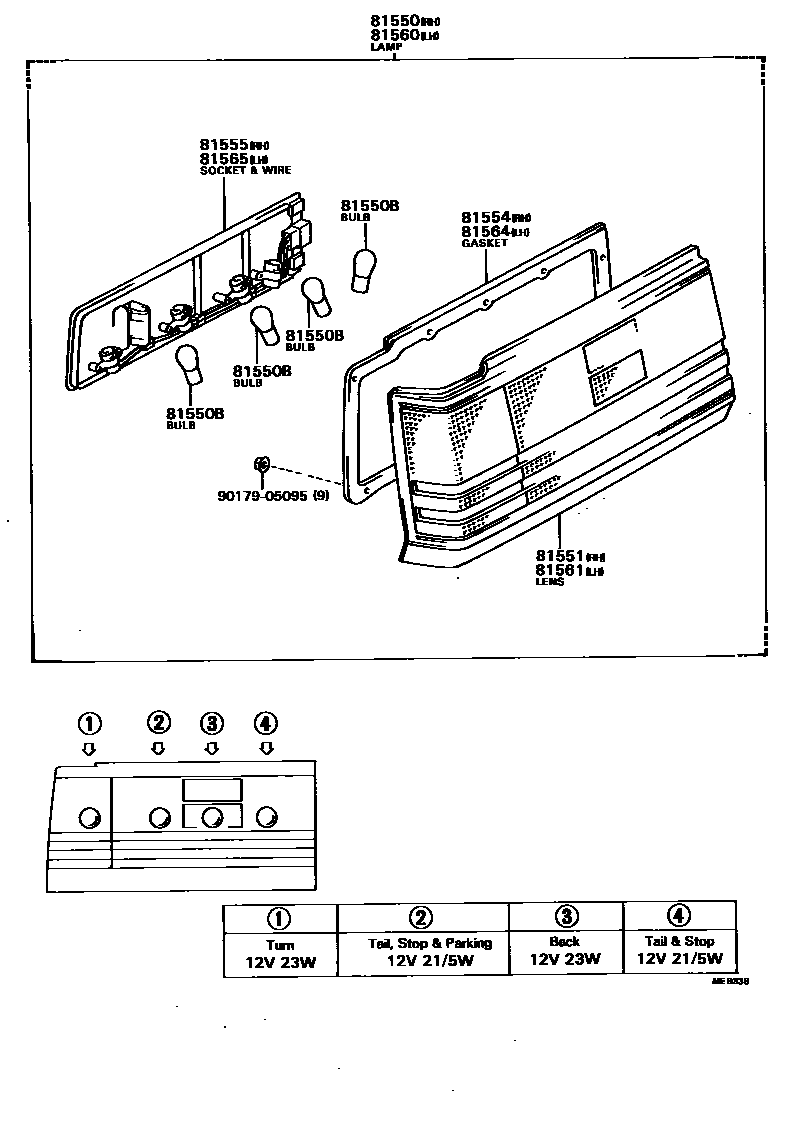

REAR COMBINATION LAMP

0001 1 0003 1 0004 1 0005 1 0006 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-20750iCT141,YT140..STD198612-199804

main81550-20830iYT140..DLX198612-199804

main81550-80124iCT140,YT140198310-198508

KOITO

main81550-80125iCT140,YT140198310-198508

IKI

main81550-80126iRT141,ST140,TT142..HT198201-198310

main81550-80127iCT147,TT147198201-198304

main81550-80196iCT147,KT147,TT147198304-198712

main81550-80198iAT141,ST140,TT142..HT198310-198508

main81550-80199iCT140,YT140198508-198612

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210×4iCT141,YT140198612-199804

main99132-11230×4iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-198612

main99132-21210×4iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

81551LENS, REAR COMBINATION LAMP, RH

main81551-20570iCT140,YT140198310-198508

KOITO

main81551-20580iCT140,YT140198310-198508

IKI

main81551-20630iAT14#,ST140,TT142..SED198310-198712

main81551-20750iCT141,YT140..STD198612-199804

main81551-20830iYT140..DLX198612-199804

main81551-91261iCT147,TT147198201-198304

main81551-91263iCT147,KT147,TT147198304-198712

main81551-91D01iRT141,ST140,TT142..HT198201-198310

main81551-91D02iAT141,ST140,TT142..HT198310-198508

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-20750iCT141,YT140198612-199804

main81554-20570iAT140,CT140,RT141,ST140,TT142,YT140..SED198201-198310

KOITO

main81554-20580iAT140,ST140198612-198712

main81554-91261iCT147,KT147,TT147198201-198712

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-20570iCT140,YT140198310-198508

KOITO

main81555-20580iAT14#,CT140,RT141,ST140,TT142,YT140..SED198201-198612

IKI

main81555-20750iCT141,YT140198612-199804

main81555-91261iCT147,KT147,TT147198201-198712

main81555-91D01iRT141,ST140,TT142..HT198201-198310

main81555-91D02iAT141,ST140,TT142..HT198310-198508

81560LAMP ASSY, REAR COMBINATION, LH

main81560-20690iCT141,YT140..STD198612-199804

main81560-20760iYT140..DLX198612-199804

main81560-80128iAT140,CT140,RT141,ST140,TT142,YT140..SED198201-198310

KOITO

main81560-80129iCT140,YT140198310-198508

IKI

main81560-80130iRT141,ST140,TT142..HT198201-198310

main81560-80131iCT147,TT147198201-198304

main81560-80201iCT147,KT147,TT147198304-198712

main81560-80203iAT141,ST140,TT142..HT198310-198508

main81560-80204iAT14#,ST140,TT142..SED198310-198712

81561LENS, REAR COMBINATION LAMP, LH

main81561-20510iCT140,YT140198310-198508

KOITO

main81561-20520iAT140,CT140,RT141,ST140,TT142,YT140..SED198201-198310

IKI

main81561-20570iAT14#,ST140,TT142..SED198310-198712

main81561-20690iCT141,YT140..STD198612-199804

main81561-20760iYT140..DLX198612-199804

main81561-91261iCT147,TT147198201-198304

main81561-91263iCT147,KT147,TT147198304-198712

main81561-91D01iRT141,ST140,TT142..HT198201-198310

main81561-91D02iAT141,ST140,TT142..HT198310-198508

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-20570iAT140,CT140,RT141,ST140,TT142,YT140..SED198201-198310

KOITO

main81562-20690iCT141,YT140198612-199804

main81564-20520iAT140,ST140198612-198712

main81564-91261iCT147,KT147,TT147198201-198712

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-91261iCT147,KT147,TT147198201-198712

main81565-20510iAT140,CT140,RT141,ST140,TT142,YT140..SED198201-198310

KOITO

main81565-20520iAT140,ST140198612-198712

main81565-20690iCT141,YT140198612-199804

main81565-91D01iRT141,ST140,TT142..HT198201-198310

main81565-91D02iAT141,ST140,TT142..HT198310-198508

9017905095

main90179-05095

10 parts on this diagram · 5 diagrams in section
