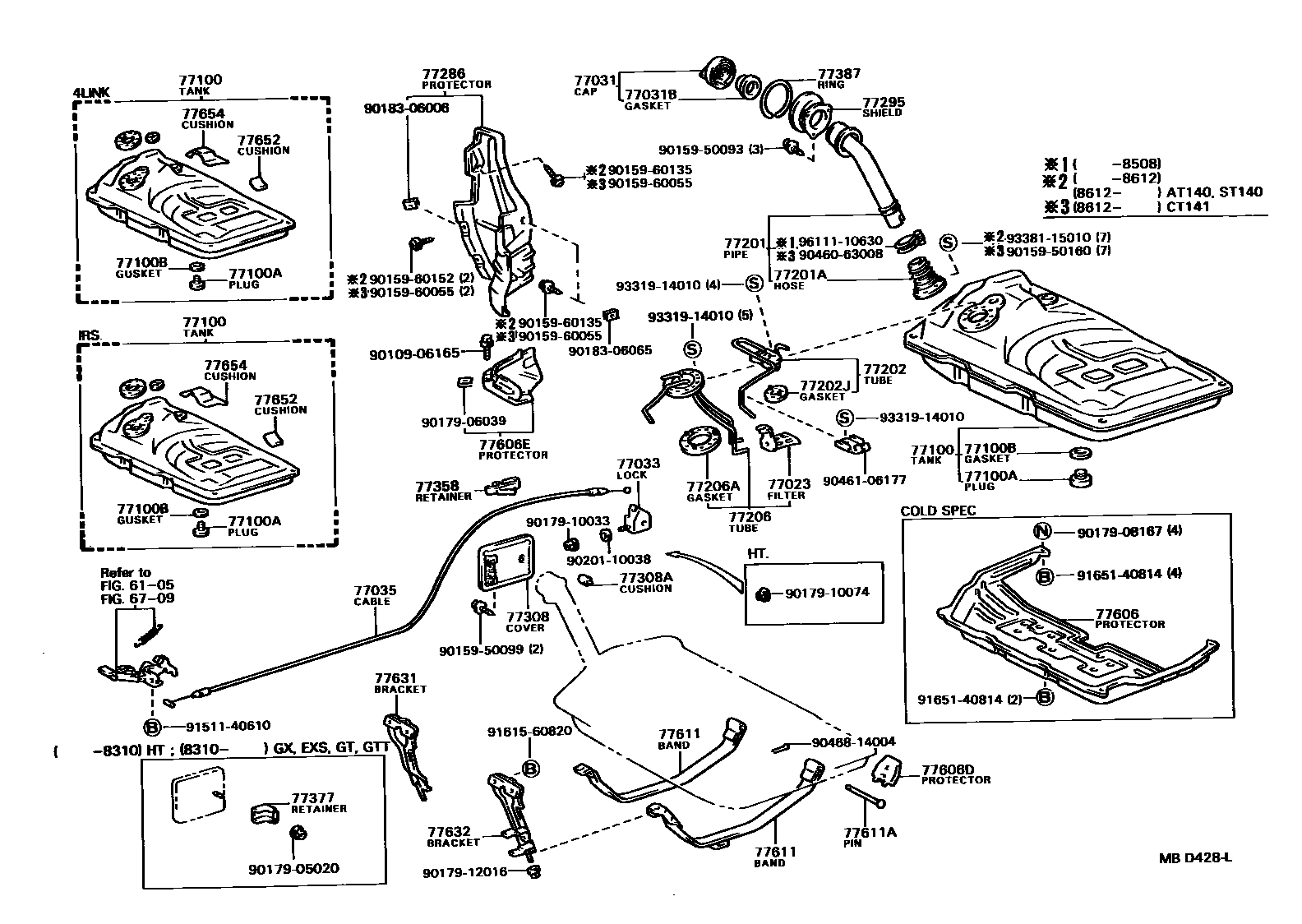

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

6105LUGGAGE COMPARTMENT DOOR & LOCK

→ Go to FIG 61-05

6709BACK DOOR LOCK & HANDLE

→ Go to FIG 67-09

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iKT147198312-198712

main77023-14030iAT140,ST140198312-198712

main77023-22040iCT14#198201-198508

main77023-30010iRT141,TT142198201-198310

main77023-32010iCT140198508-198612

77031CAP ASSY, FUEL TANK

main77310-12100iAT140,CT14#,RT141,ST140,TT14#198201-198205

main77310-35061iCT14#198205-198612

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iCT141198612-199111

77033LOCK SUB-ASSY, FUEL TANK CAP

main77037-14010iAT14#,CT140,KT147,ST140,TT14#..EXA,EXS,GT,GTT,GX,GXA,SX198304-198712

main77037-20010iYT140198209-198612

main77037-20020iYT140198612-199804

main77037-24010iAT140,CT140,RT141,ST140,TT14#..EXA,EXS,GT,GTT,GX,GXA,SX198201-198304

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-14110iAT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX198201-198712

main77035-91258iKT147,TT147..GX198201-198712

77100TANK ASSY, FUEL

main77001-19085iCT140198201-198206

main77001-19095iAT140,ST140198201-198307

main77001-19096iAT140,ST140198307-198712

main77001-19105iRT141,TT142198201-198307

main77001-19107iAT141,TT142198307-198508

main77001-19125iTT147198201-198302

main77001-19135iCT147198201-198302

main77001-19275iKT147,TT147198302-198712

main77001-19285iCT147198302-198712

main77001-29065iCT140198206-198209

main77001-29066iCT140198209-198307

main77001-29068iCT140198307-198612

77100APLUG(FOR FUEL TANK)

main90105-12018iCT147,KT147,TT147198201-198712

main90341-20003iAT14#,CT140,RT141,ST140,TT142198209-198412

OD=20

main90341-20004iAT14#,CT140,ST140,TT142198412-198712

OD=20

main90341-24036iAT140,CT140,RT141,ST140,TT142198201-198209

OD=24

77100BGASKET(FOR FUEL TANK)

main90430-12245iCT147,KT147,TT147198201-198712

main90430-20006iAT14#,CT140,RT141,ST140,TT142198209-198412

ID=20.3

main90430-20007iCT141198612-199111

ID=20.3

main90430-24047iAT140,CT140,RT141,ST140,TT142198201-198209

ID=24

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-14200iAT140,CT140,ST140198201-198612

main77201-14220iAT141,RT141,TT142198201-198508

main77201-20150iYT140198209-198612

main77201-20200iYT140198612-198908

main77201-20201iYT140198908-199804

main77201-20230iCT141198612-199111

main77201-91258iCT147,KT147,TT147198201-198712

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77213-14090iAT14#,CT140,RT141,ST140,TT142198201-198712

77202TUBE SUB-ASSY, BREATHER

main77012-14022iAT140,CT140,ST140198201-198307

main77012-14023iCT141198612-199111

main77012-14040iRT141,TT142198201-198307

main77012-14041iAT141,TT142198307-198508

77202JGASKET (FOR BREATHER TUBE)

main77179-14030iCT141198612-199111

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77203-14041iAT140,ST140198310-198712

main77203-14090iRT141,TT142198201-198208

main77203-14091iRT141,TT142198208-198310

main77203-14100iAT140,ST140198201-198310

main77203-14110iCT141198612-199111

main77203-20070iYT140198209-199804

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-14010iRT141,TT142198201-198310

main77169-14020iAT140,CT140,ST140198201-198712

77286PROTECTOR, FUEL TANK INLET PIPE

main77277-14090iST140..HT198201-198508

main77277-14100iAT141,RT141,TT142..HT198201-198508

main77277-20040iYT140198209-198612

main77277-20050iAT140,CT140,ST140..SED198201-198712

main77277-20060iAT141,RT141,TT142..SED198201-198508

main77277-20140iYT140198612-199804

77295SHIELD, FUEL FILLER PIPE

main77034-14010iCT141,YT140198612-199804

main77291-12010iCT147,KT147,TT147198201-198712

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-14040iCT141198612-199111

main77350-20030iYT140198209-198612

main77350-91257iCT147,KT147,TT147198201-198712

main77350-91D01iAT14#,ST140,TT142..SED..(GT,GTT,GX)198310-198712

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-05009×2iCT141,YT140198612-199804

main90541-05018×2iAT141,RT141,ST140,TT142..HT198201-198508

main90541-08003×2iCT147,KT147,TT147,YT140198201-198612

77358RETAINER, FUEL INLET CUSHION

main77358-20010iYT140198209-198211

main77358-20020iYT140198211-198612

main77360-24010iAT14#,CT14#,RT141,ST140,TT14#198201-198612

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20030iYT140198612-199804

main77377-24010iAT14#,ST140,TT142..EXS,GT,GTT,GX198310-198712

77387RING, FUEL INLET BOX

main77391-14020iAT14#,CT140,RT141,ST140,TT142198201-198712

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-14040iAT14#,CT140,RT141,ST140,TT142198201-198712

COLD SPEC

main77606-20030iYT140198209-198612

main77655-20040iYT140198612-199804

77606DPROTECTOR, FUEL TANK, NO.3

main77643-14030iAT140,CT140,ST140198201-198712

77606EPROTECTOR, FUEL TANK, NO.4

main77641-14080iAT14#,CT140,RT141,ST140,TT142198201-198712

77611BAND, FUEL TANK

main77601-14040×2iAT140,CT140,RT141,ST140,TT142198201-198206

main77601-14050×2iAT140,CT140,ST140198508-198712

main77601-14060×2iAT14#,CT140,ST140,TT142198206-198508

77611APIN (FOR FUEL TANK BAND)

main90240-08020×2iAT14#,CT140,RT141,ST140,TT142198201-198712

77631BRACKET, FUEL TANK, NO.1

main77613-14022iAT140,CT140,ST140198201-198712

main77613-14040iAT141,RT141,TT142198201-198508

77632BRACKET, FUEL TANK, NO.2

main77614-14021iAT140,CT140,ST140198201-198712

main77614-14040iAT141,RT141,TT142198201-198508

77652CUSHION, FUEL TANK, NO.1

main77651-14070×2iCT141198612-199111

main77651-91C01iCT147,KT147,TT147198302-198712

main77652-14080×6iAT14#,CT140,RT141,ST140,TT142198201-198712

77654CUSHION, FUEL TANK, NO.2

main77652-14090iAT141,RT141,TT142198201-198508

main77652-20010×2iCT141198612-199111

main77652-91602×4iCT147,KT147,TT147198201-198712

9010906165

main90109-06165

9015950093

main90159-50093

9015950099

main90159-50099

9015950160

main90159-50160

9015960055

main90159-60055

9015960135

main90159-60135

9015960152

main90159-60152

9017905020

main90179-05020

9017906039

main90179-06039

9017908167

main90179-08167

9017910033

main90179-10033

9017910074

main90179-10074

9017912016

main90179-12016

9018306006

main90183-06006

9018306065

main90183-06065

9020110038

main90201-10038

9046063008

main90460-63008

9046106177

main90461-06177

9046814004

main90468-14004

9151140610

main91511-40610

9161560820

main91615-60820

9165140814

main91651-40814

9331914010

main93319-14010

9338115010

main93381-15010

9611110630

main96111-10630

57 parts on this diagram · 13 diagrams in section
