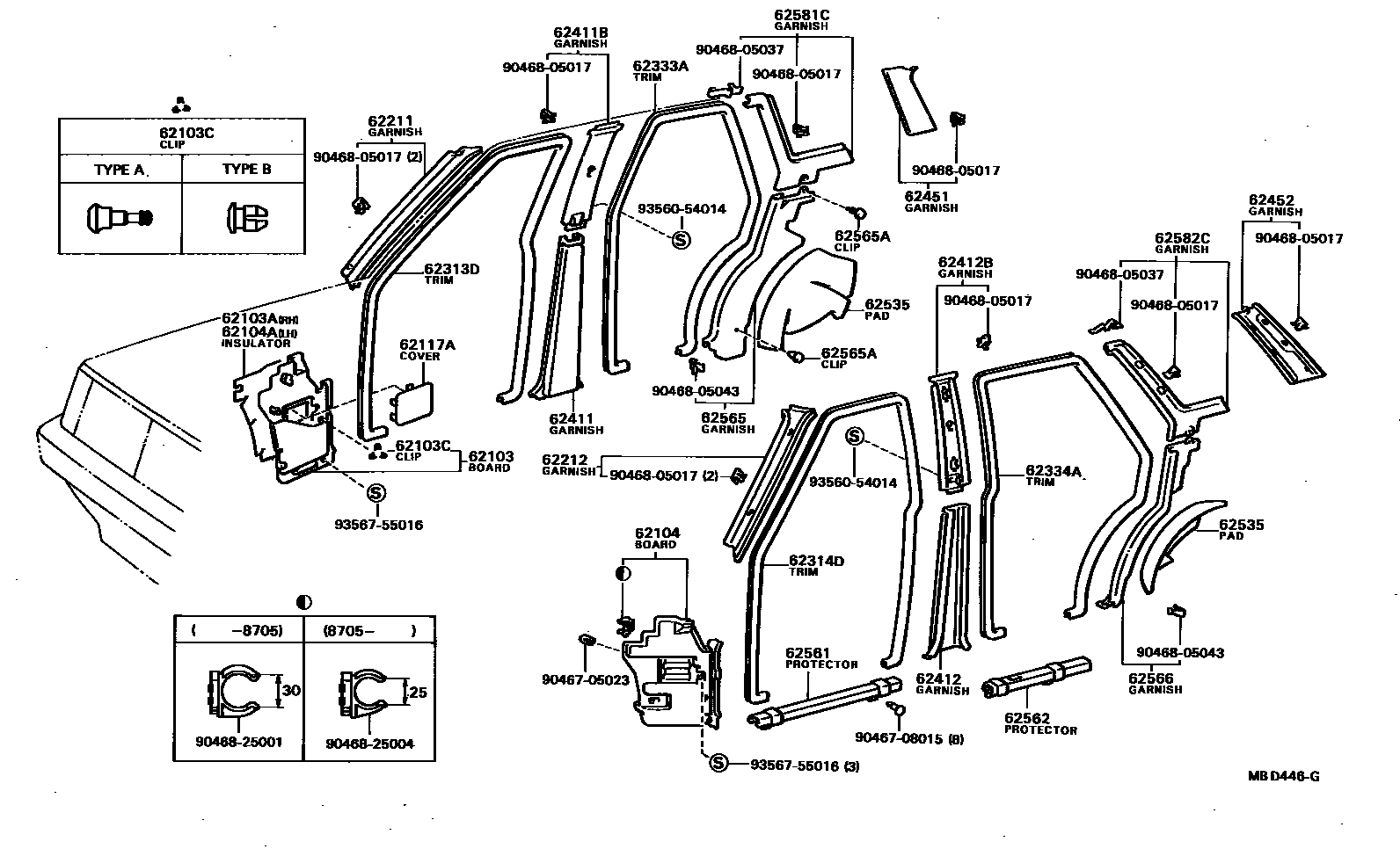

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0003 1 0004 1 0005 1

62103BOARD SUB-ASSY, COWL SIDE TRIM, RH

main62101-14101-01iAT140,CT140..STD198201-199804

BLACK,BLACK,TRIM2#

sub62101-14101

main62101-14101-01iAT140..GX198205-198206

EVENT,BLACK,BLACK,TRIM2#

sub62101-14101

main62101-14101-01iAT140..GX198208-198310

GX EXTRA,BLACK,BLACK,TRIM2#

sub62101-14101

main62101-14101-04iAT140,ST140..SED..GX198201-198712

BLUE,BLUE,TRIM8#

sub62101-14101

main62101-14101-06iCT147,KT147..DLX,GX198310-198712

DARK BROWN,BROWN,TRIM4#

sub62101-14101

main62101-14101-16iAT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198310

SADDLE BROWN,BROWN,TRIM4#

sub62101-14101

main62101-14131-01iRT141,ST140,TT142..HT198201-198508

BLACK,BLACK,TRIM2#

sub62101-14131

main62101-14131-04iRT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX)198201-198508

BLUE,BLUE,TRIM8#

sub62101-14131

main62101-14131-16iRT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX)198201-198310

SADDLE BROWN,BROWN,TRIM4#

sub62101-14131

62103AINSULATOR SUB-ASSY, COWL SIDE, RH

main62105-14030iAT140,CT147,KT147,ST140198201-199804

62103CCLIP, COWL SIDE TRIM BOARD SET

main90467-05015-01iAT140,TT142..SED..(GTT,STD);CT147,RT141,ST140,TT14#..HT,V198201-199804

TYPE A,BLACK,BLACK,TRIM2#

sub90467-05015

main90467-05015-01iAT140..GX198205-198206

EVENT,TYPE A,BLACK,BLACK,TRIM2#

sub90467-05015

main90467-05015-01iAT140..GX198208-198310

GX EXTRA,TYPE A,BLACK,BLACK,TRIM2#

sub90467-05015

main90467-05015-04iAT141,TT142..HT;AT140,ST140..EXS,GX198201-198712

TYPE A,BLUE,BLUE,TRIM8#

sub90467-05015

main90467-05015-16iAT140,CT14#,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX198201-198310

TYPE A,SADDLE BROWN,BROWN,TRIM4#

sub90467-05015

main90467-05015-16iCT147,KT147..DLX,GX198310-198712

TYPE A,DARK BROWN,BROWN,TRIM4#

sub90467-05015

main90467-08031-01iCT141,YT140198201-199804

TYPE B,BLACK,BLACK,TRIM2#

sub90467-08031

main90467-08031-01iAT140..GX198205-198206

EVENT,TYPE B,BLACK,BLACK,TRIM2#

sub90467-08031

main90467-08031-01iAT140..GX198208-198310

GX EXTRA,TYPE B,BLACK,BLACK,TRIM2#

sub90467-08031

main90467-08031-04iAT141,TT142..HT;AT140,ST140..EXS,GX198201-198712

TYPE B,BLUE,BLUE,TRIM8#

sub90467-08031

main90467-08031-06iCT147,KT147..DLX,GX198310-198712

TYPE B,DARK BROWN,BROWN,TRIM4#

sub90467-08031

main90467-08031-16iAT140,CT14#,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX198201-198310

TYPE B,SADDLE BROWN,BROWN,TRIM4#

sub90467-08031

62104BOARD SUB-ASSY, COWL SIDE TRIM, LH

main62102-14130-01iAT140,CT147,KT147,ST140198201-198705

BLACK,BLACK,TRIM2#

main62102-14130-01iAT140..GX198205-198206

EVENT,BLACK,BLACK,TRIM2#

main62102-14130-01iAT140..GX198208-198310

GX EXTRA,BLACK,BLACK,TRIM2#

main62102-14130-04iAT140,ST140..SED..GX198201-198705

BLUE,BLUE,TRIM8#

main62102-14130-06iCT147,KT147..DLX,GX198310-198705

DARK BROWN,BROWN,TRIM4#

main62102-14130-16iAT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198310

SADDLE BROWN,BROWN,TRIM4#

main62102-14131-01iAT140,CT147,KT147,ST140198705-199804

BLACK,BLACK,TRIM2#

main62102-14131-04iAT140,ST140..GX198705-198712

BLUE,BLUE,TRIM8#

main62102-14131-06iCT147,KT147..DLX,GX198705-198712

DARK BROWN,BROWN,TRIM4#

main62102-14150-01iAT141,ST140..HT198201-198508

BLACK,BLACK,TRIM2#

sub62102-14150

main62102-14150-04iAT141,ST140..HT198201-198508

BLUE,BLUE,TRIM8#

sub62102-14150

main62102-14150-16iRT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX)198201-198310

SADDLE BROWN,BROWN,TRIM4#

sub62102-14150

main62102-14190-01iTT142..HT198210-198508

BLACK,BLACK,TRIM2#

sub62102-14190

main62102-14190-04iTT142..HT198310-198508

BLUE,BLUE,TRIM8#

sub62102-14190

main62102-14200iTT142..SED..GTT198210-198310

BLACK

main62102-14200-01iTT142..SED198310-198508

BLACK,BLACK,TRIM2#

sub62102-14200

62104AINSULATOR SUB-ASSY, COWL SIDE, LH

main62106-14030iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-14010-01iYT140;CT147,RT141,ST140,TT14#..HT,V;AT140,CT140,TT142..SED..(GTT,STD)198201-198310

BLACK,BLACK,TRIM2#

sub62117-14010

main62117-14010-01iAT140..GX198205-198206

EVENT,BLACK,BLACK,TRIM2#

sub62117-14010

main62117-14010-01iAT140..GX198208-198310

GX EXTRA,BLACK,BLACK,TRIM2#

sub62117-14010

main62117-14010-04iAT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX198201-198310

BLUE,BLUE,TRIM8#

sub62117-14010

main62117-14010-16iAT140,CT14#,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX198201-198310

SADDLE BROWN,BROWN,TRIM4#

sub62117-14010

main62117-14030-01iAT14#,CT14#,KT147,ST140,TT142,YT140198310-198408

BLACK,BLACK,TRIM2#

sub62117-14030

main62117-14030-04iAT141,TT142..HT;AT140,ST140..EXS,GX198310-198408

BLUE,BLUE,TRIM8#

sub62117-14030

main62117-14030-06iCT147,KT147..DLX,GX198310-198408

DARK BROWN,BROWN,TRIM4#

sub62117-14030

main62117-14031-01iAT14#,CT14#,KT147,ST140,TT142,YT140198408-198712

BLACK,BLACK,TRIM2#

main62117-14031-04iAT141,TT142..HT;AT140,ST140..EXS,GX198408-198712

BLUE,BLUE,TRIM8#

main62117-14031-06iCT147,KT147..DLX,GX198408-198712

DARK BROWN,DARK BROWN,TRIM4#

main62117-20060-01iCT141,YT140198612-199804

BLACK,BLACK,TRIM2#

62211GARNISH, FRONT PILLAR, RH

main62210-91D01-01iRT141,ST140,TT142..HT198201-198508

BLACK,BLACK,TRIM2#

main62210-91D01-04iAT141,ST140,TT142..HT198201-198508

BLUE,BLUE,TRIM8#

main62210-91D01-06iRT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX)198201-198310

SADDLE BROWN,BROWN,TRIM4#

main62211-14100-03iCT147,KT147,TT147198201-198712

GRAY,GRAY,TRIM2#

sub62211-20150

main62211-14100-08iCT147,KT147,TT147..DLX,GX198201-198712

IVORY,IVORY,TRIM4#

sub62211-20150

main62211-20120-03iAT14#,CT140,RT141,ST140,TT142,YT140..SED198201-198712

GRAY,GRAY,TRIM2#,8#

main62211-20120-08iAT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198310

IVORY,IVORY,TRIM4#

main62211-20150-03iCT141,YT140198612-199804

GRAY,GRAY,TRIM2#

62212GARNISH, FRONT PILLAR, LH

main62212-14100-03iCT147,KT147,TT147198201-198712

GRAY,GRAY,TRIM2#

sub62212-20150

main62212-14100-08iCT147,KT147,TT147..DLX,GX198201-198712

IVORY,IVORY,TRIM4#

sub62212-20150

main62212-20120-03iAT140,ST140198201-198712

GRAY,GRAY,TRIM2#,8#

main62212-20120-08iAT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198310

IVORY,IVORY,TRIM4#

main62212-20150-03iCT141,YT140198612-199804

GRAY,GRAY,TRIM2#

main62220-91D01-01iRT141,ST140,TT142..HT198201-198508

BLACK,BLACK,TRIM2#

main62220-91D01-04iAT141,ST140,TT142..HT198201-198508

BLUE,BLUE,TRIM8#

main62220-91D01-06iRT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX)198201-198310

SADDLE BROWN,BROWN,TRIM4#

62313DTRIM, FRONT DOOR OPENING, RH

main62313-14070-01iAT140..GX198208-198310

GX EXTRA,BLACK,BLACK,TRIM2#

main62313-14070-01iAT140..GX198205-198206

EVENT,BLACK,BLACK,TRIM2#

main62313-14070-01iCT147,TT147,YT140;AT140,CT140,TT142..SED..(GTT,STD)198201-198712

BLACK,BLACK,TRIM2#

main62313-14070-04iAT140,ST140..SED..GX198201-198712

BLUE,BLUE,TRIM8#

main62313-14070-06iCT147,KT147..DLX,GX198310-198712

DARK BROWN,BROWN,TRIM4#

main62313-14070-16iAT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198310

SADDLE BROWN,BROWN,TRIM4#

main62313-20090-01iCT141,YT140198612-199804

BLACK,BLACK,TRIM2#

62314DTRIM, FRONT DOOR OPENING, LH

main62313-14070-01iAT140..GX198208-198310

GX EXTRA,BLACK,BLACK,TRIM2#

main62313-14070-01iAT140..GX198205-198206

EVENT,BLACK,BLACK,TRIM2#

main62313-14070-01iCT147,TT147,YT140;AT140,CT140,TT142..SED..(GTT,STD)198201-198712

BLACK,BLACK,TRIM2#

main62313-14070-04iAT140,ST140..SED..GX198201-198712

BLUE,BLUE,TRIM8#

main62313-14070-06iCT147,KT147..DLX,GX198310-198712

DARK BROWN,BROWN,TRIM4#

main62313-14070-16iAT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198310

SADDLE BROWN,BROWN,TRIM4#

main62313-20090-01iCT141,YT140198612-199804

BLACK,BLACK,TRIM2#

62333ATRIM, REAR DOOR OPENING, RH

main62333-14030-01iAT140,ST140198201-198712

BLACK,BLACK,TRIM2#

sub62313-14070

main62333-14030-01iAT140..GX198205-198206

EVENT,BLACK,BLACK,TRIM2#

sub62313-14070

main62333-14030-01iAT140..GX198208-198310

GX EXTRA,BLACK,BLACK,TRIM2#

sub62313-14070

main62333-14030-04iAT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198712

BLUE,BLUE,TRIM8#

sub62313-14070

main62333-14030-16iAT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198310

SADDLE BROWN,BROWN,TRIM4#

sub62313-14070

main62333-20050-01iCT141,YT140198612-199804

BLACK,BLACK,TRIM2#

sub62313-20090

main62333-91C01-01iCT147,KT147,TT147198201-198712

BLACK,BLACK,TRIM2#

main62333-91C01-06iCT147,KT147..DLX,GX198310-198712

DARK BROWN,BROWN,TRIM4#

main62333-91C01-16iCT147,TT147..DLX,GX198201-198310

SADDLE BROWN,BROWN,TRIM4#

62334ATRIM, REAR DOOR OPENING, LH

main62333-14030-01iAT140,ST140198201-198712

BLACK,BLACK,TRIM2#

sub62313-14070

main62333-14030-01iAT140..GX198205-198206

EVENT,BLACK,BLACK,TRIM2#

sub62313-14070

main62333-14030-01iAT140..GX198208-198310

GX EXTRA,BLACK,BLACK,TRIM2#

sub62313-14070

main62333-14030-04iAT140,ST140..SED..GX198201-198712

BLUE,BLUE,TRIM8#

sub62313-14070

main62333-14030-16iAT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198310

SADDLE BROWN,BROWN,TRIM4#

sub62313-14070

main62333-20050-01iCT141,YT140198612-199804

BLACK,BLACK,TRIM2#

sub62313-20090

main62333-91C01-01iCT147,KT147,TT147198201-198712

BLACK,BLACK,TRIM2#

main62333-91C01-06iCT147,KT147..DLX,GX198310-198712

DARK BROWN,BROWN,TRIM4#

main62333-91C01-16iCT147,TT147..DLX,GX198201-198310

SADDLE BROWN,BROWN,TRIM4#

62411GARNISH, CENTER PILLAR, RH

main62411-14050-01iAT140,CT147,KT147,ST140198201-199804

BLACK,BLACK,TRIM2#

main62411-14050-01iAT140..GX198205-198206

EVENT,BLACK,BLACK,TRIM2#

main62411-14050-01iAT140..GX198208-198310

GX EXTRA,BLACK,BLACK,TRIM2#

main62411-14050-04iAT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198712

BLUE,BLUE,TRIM8#

main62411-14050-06iCT147,KT147..DLX,GX198310-198712

DARK BROWN,BROWN,TRIM4#

main62411-14050-16iAT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198310

SADDLE BROWN,BROWN,TRIM4#

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-20200-03iAT140,ST140198201-198712

GRAY,GRAY,TRIM2#,8#

main62411-20200-08iAT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198310

IVORY,IVORY,TRIM4#

62412GARNISH, CENTER PILLAR, LH

main62412-14050-01iCT141,YT140198201-199804

BLACK,BLACK,TRIM2#

main62412-14050-01iAT140..GX198205-198206

EVENT,BLACK,BLACK,TRIM2#

main62412-14050-01iAT140..GX198208-198310

GX EXTRA,BLACK,BLACK,TRIM2#

main62412-14050-04iAT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198712

BLUE,BLUE,TRIM8#

main62412-14050-06iCT147,KT147..DLX,GX198310-198712

DARK BROWN,BROWN,TRIM4#

main62412-14050-16iAT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198310

SADDLE BROWN,BROWN,TRIM4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-20200-03iAT140,ST140198201-198712

GRAY,GRAY,TRIM2#,8#

main62412-20200-08iAT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198310

IVORY,IVORY,TRIM4#

62451GARNISH, ROOF SIDE INNER, RH

main62405-20010-03iAT140,CT140,RT141,ST140,TT142,YT140..SED..(DLX,GT,GTT,GX,GXA,STD,SX)198201-198612

GRAY,GRAY,TRIM2#

main62405-20010-03iAT140,ST140198612-198712

GRAY,GRAY,TRIM2#,8#

main62405-20010-08iAT140,CT140,RT141,ST140,TT142..SED..(DLX,GT,GX,GXA,SX)198201-198310

IVORY,IVORY,TRIM4#

main62405-91D01-01iAT141,ST140,TT142..HT198201-198508

BLACK,BLACK,TRIM2#

main62405-91D01-04iRT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX)198201-198508

BLUE,BLUE,TRIM8#

main62405-91D01-06iRT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX)198201-198310

SADDLE BROWN,BROWN,TRIM4#

main62470-20110-03iCT140,ST140..SED..(EXA,EXS)198201-198310

GRAY,GRAY,TRIM8#

main62470-20110-03iTT142..SED198310-198508

GT-TR PACKAGE,GRAY,GRAY,TRIM2#

main62470-20110-08iCT140,ST140..SED..(EXA,EXS)198201-198310

IVORY,IVORY,TRIM4#

main62471-20260-01iCT141,YT140198612-199804

BLACK,BLACK,TRIM2#

62452GARNISH, ROOF SIDE INNER, LH

main62406-20010-03iAT14#,CT140,ST140,TT142,YT140..SED198310-198712

GRAY,GRAY,TRIM2#,8#

main62406-20010-03iAT140,CT140,RT141,ST140,TT142,YT140..SED..(DLX,GT,GTT,GX,GXA,STD,SX)198201-198310

GRAY,GRAY,TRIM2#

main62406-20010-08iAT140,CT140,RT141,ST140,TT142..SED..(DLX,GT,GX,GXA,SX)198201-198310

IVORY,IVORY,TRIM4#

main62406-91D01-01iRT141,ST140,TT142..HT198201-198508

BLACK,BLACK,TRIM2#

main62406-91D01-04iAT141,ST140,TT142..HT198201-198508

BLUE,BLUE,TRIM8#

main62406-91D01-06iRT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX)198201-198310

SADDLE BROWN,BROWN,TRIM4#

main62472-20270-01iCT141,YT140198612-199804

BLACK,BLACK,TRIM2#

main62480-20110-03iTT142..SED198310-198508

GT-TR PACKAGE,GRAY,GRAY,TRIM2#,8#

main62480-20110-03iCT140,ST140..SED..(EXA,EXS)198201-198310

GRAY,GRAY,TRIM8#

main62480-20110-08iCT140,ST140..SED..(EXA,EXS)198201-198310

IVORY,IVORY,TRIM4#

62535PAD, QUARTER WHEEL HOUSE TRIM

main62611-14020iAT14#,CT140,RT141,ST140,TT142,YT140..SED198201-199804

62561PROTECTOR, ROCKER PANEL, INNER FRONT

main62561-14070iAT140,CT147,KT147,ST140198201-199804

RH

main62562-14060iTT142..SED198310-198508

LH

main62562-14070iAT140,CT147,KT147,ST140198201-199804

LH

62562PROTECTOR, ROCKER PANEL, INNER REAR

main62563-14060iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

RH

main62564-14020iAT140,CT147,KT147,ST140198201-199804

LH

62565GARNISH, REAR SEAT SIDE, RH

main62551-20040-01iAT140..GX198205-198206

EVENT,BLACK,BLACK,TRIM2#

main62551-20040-01iYT140;AT140,CT140,TT142..SED..(GTT,STD)198201-199804

BLACK,BLACK,TRIM2#

main62551-20040-01iAT140..GX198208-198310

GX EXTRA,BLACK,BLACK,TRIM2#

main62551-20040-04iAT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198712

BLUE,BLUE,TRIM8#

main62551-20040-06iAT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198310

SADDLE BROWN,BROWN,TRIM4#

62565ACLIP (FOR REAR SEAT SIDE GARNISH)

main90467-05004-03iAT140,CT140,RT141,ST140,TT142..SED198201-198206

UPR,GRAY,GRAY,TRIM2#,8#

sub90467-05004

main90467-05004-08iAT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198206

UPR,IVORY,IVORY,TRIM4#

sub90467-05004

main90467-05020-01iAT140,ST140198206-199804

UPR,BLACK,BLACK,TRIM2#

sub90467-05020

sub90467-05027

main90467-13016iAT140,ST140198201-199804

LWR

62566GARNISH, REAR SEAT SIDE, LH

main62552-20030-01iAT14#,CT140,ST140,TT142,YT140..SED198201-199804

BLACK,BLACK,TRIM2#

main62552-20030-01iAT140..GX198205-198206

EVENT,BLACK,BLACK,TRIM2#

main62552-20030-01iAT140..GX198208-198310

GX EXTRA,BLACK,BLACK,TRIM2#

main62552-20030-04iAT140,ST140..SED..GX198201-198712

BLUE,BLUE,TRIM8#

main62552-20030-06iAT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198310

SADDLE BROWN,BROWN,TRIM4#

62581CGARNISH, REAR WINDOW SIDE, RH

main62581-20030-03iAT14#,CT140,RT141,ST140,TT142,YT140..SED198201-198712

GRAY,GRAY,TRIM2#,8#

main62581-20030-08iAT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198310

IVORY,IVORY,TRIM4#

62582CGARNISH, REAR WINDOW SIDE, LH

main62582-20040-03iAT14#,CT140,RT141,ST140,TT142,YT140..SED198201-198712

GRAY,GRAY,TRIM2#,8#

main62582-20040-08iAT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198310

IVORY,IVORY,TRIM4#

9046705023

main90467-05023

9046708015

main90467-08015

9046805017

main90468-05017

9046805037

main90468-05037

9046805043

main90468-05043

9046825001

main90468-25001

9046825004

main90468-25004

9356054014

main93560-54014

9356755016

main93567-55016

35 parts on this diagram · 4 diagrams in section
