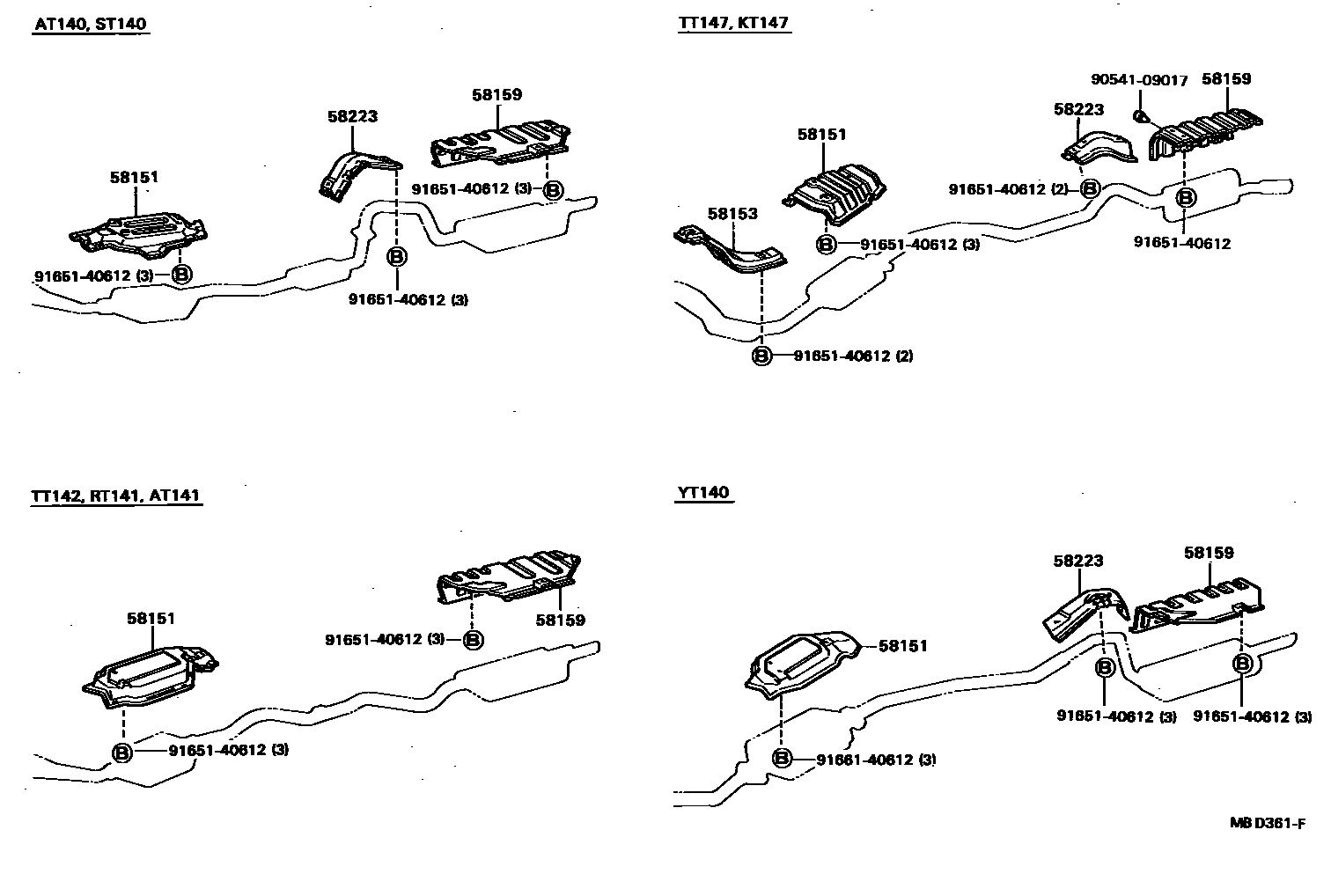

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58041-14070iRT141,TT142,YT140..DLX,GT,STD,SX198201-199804

main58041-24010iAT140,ST140198201-198712

main58151-14070iAT141,TT142..GT,GTT198210-198508

main58151-91C01iKT147,TT147198201-198712

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-14040iKT147,TT147198201-198712

58159INSULATOR, MAIN MAFFLAR HEAT

main58327-14020iAT14#,RT141,ST140,TT142198201-198712

main58327-20020iYT140198209-199804

main58368-21020iKT147,TT147198201-198712

58223INSULATOR, CENTER FLOOR HEAT, NO.2

main58223-14030iAT140,ST140198201-198712

main58223-20050iYT140198209-199804

main58223-91255iKT147,TT147198201-198712

9054109017

main90541-09017

9165140612

main91651-40612

9166140612

main91661-40612

7 parts on this diagram · 1 diagram in section
