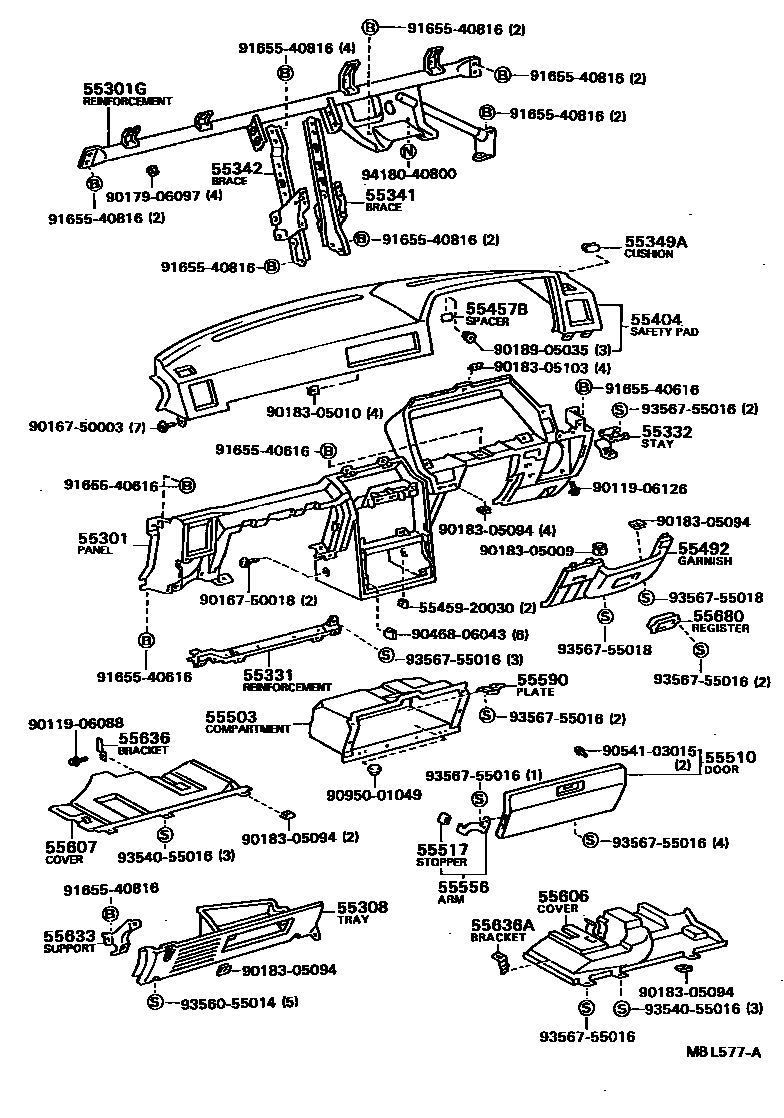

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0003 1 0004 1 0005 1

55301PANEL SUB-ASSY, INSTRUMENT

main55312-20120-01iCT141,YT140198612-199804

BLACK,BLACK,TRIM2#

main55312-20120-04iAT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198310

BLUE,BLUE,TRIM8#

main55312-20120-06iAT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198310

SADDLE BROWN,BROWN,TRIM4#

main55312-20120-16iCT147,KT147..DLX,GX198310-198712

DARK BROWN,BROWN,TRIM4#

55301GREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL

main55305-14060iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V198201-198612

main55305-20110iCT141,YT140198612-199804

55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main55601-14180-01iAT141,RT141,ST140,TT142..HT198201-198508

BLACK,BLACK,TRIM2#

main55601-14180-04iAT141,ST140,TT142..HT198310-198508

BLUE,BLUE,TRIM8#

main55601-14180-16iRT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX)198201-198310

SADDLE BROWN,BROWN,TRIM4#

main55601-20030-01iAT140..GX198208-198310

GX EXTRA,BLACK,BLACK,TRIM2#

main55601-20030-04iAT140,ST140..SED..GX198310-198712

BLUE,BLUE,TRIM8#

main55601-20030-06iAT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198310

SADDLE BROWN,BROWN,TRIM4#

main55601-20030-16iCT147,KT147..DLX,GX198310-198712

DARK BROWN,BROWN,TRIM4#

main55601-20080-01iYT140199001-199804

BLACK,BLACK,TRIM2#

55331REINFORCEMENT, INSTRUMENT PANEL

main55306-20040iRT141,ST140,TT142..SED..(EXA,GT,GTT)198201-198310

main55330-14010iAT141,RT141,ST140,TT142..HT198201-198508

main55332-20080iCT141,YT140198612-199804

55332STAY, INSTRUMENT PANEL

main55303-20050iCT141,YT140198612-199804

55341BRACE, INSTRUMENT PANEL, NO.1

main55306-14030iAT141,RT141,ST140,TT142..HT198201-198508

main55306-14070iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V198201-198612

55342BRACE, INSTRUMENT PANEL, NO.2

main55307-14080iAT141,RT141,ST140,TT142..HT198201-198508

main55307-14110iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V198201-198612

55349ACUSHION, INSTRUMENT PANEL

main55349-14050iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V198201-198612

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-20400-01iAT14#,CT14#,KT147,ST140,TT142,YT140..SED,V198310-198612

BLACK,BLACK,TRIM2#

main55401-20400-04iAT140,ST140..SED..GX198310-198712

BLUE,BLUE,TRIM8#

main55401-20400-06iAT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198310

SADDLE BROWN,BROWN,TRIM4#

main55401-20400-16iCT147,KT147..DLX,GX198310-198712

DARK BROWN,BROWN,TRIM4#

main55401-20430-04iRT141,ST140..EXA,GT198201-198206

W/NAVICON,BLUE,BLUE,TRIM8#

main55401-20430-06iRT141,ST140..EXA,GT198201-198206

W/NAVICON,SADDLE BROWN,BROWN,TRIM4#

main55401-20500-01iCT141,YT140198612-199804

BLACK,BLACK,TRIM2#

main55401-91D01-01iAT141,RT141,ST140,TT142..HT198201-198508

BLACK,BLACK,TRIM2#

main55401-91D01-04iRT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX)198201-198310

BLUE,BLUE,TRIM8#

main55401-91D01-06iRT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX)198201-198310

SADDLE BROWN,BROWN,TRIM4#

55457BSPACER, INSTRUMENT PANEL SAFETY PAD

main55457-20060×6iAT14#,CT14#,KT147,ST140,TT14#,YT140198302-198612

20X130

main55457-22030×4iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-198612

16X30

55492GARNISH OR SAFETY PAD, LOWER, RH

main55432-20110-01iCT141198612-199111

BLACK,BLACK,TRIM2#

main55432-20110-04iAT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198310

BLUE,BLUE,TRIM8#

main55432-20110-06iAT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198310

SADDLE BROWN,BROWN,TRIM4#

main55432-20110-16iCT147,KT147..DLX,GX198310-198712

DARK BROWN,BROWN,TRIM4#

main55432-20130-01iYT140..4H198209-199804

BLACK,BLACK,TRIM2#

55503COMPARTMENT SUB-ASSY, GLOVE

main55581-20060iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V198201-198612

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-14110-01iAT141,RT141,ST140,TT142..HT198201-198508

BLACK,BLACK,TRIM2#

main55550-14110-04iRT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX)198201-198310

BLUE,BLUE,TRIM8#

main55550-14110-16iRT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX)198201-198310

SADDLE BROWN,BROWN,TRIM4#

main55550-20070-01iCT141,YT140198612-199804

BLACK,BLACK,TRIM2#

main55550-20070-04iAT140,CT140,RT141,ST140,TT142..SED..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198310

BLUE,BLUE,TRIM8#

main55550-20070-06iAT140,CT14#,RT141,ST140,TT14#..(SED,V)..(DLX,EXA,EXS,GT,GX,GXA,SX)198201-198310

SADDLE BROWN,BROWN,TRIM4#

main55550-20070-16iCT147,KT147..DLX,GX198310-198712

DARK BROWN,BROWN,TRIM4#

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-14010iAT140,CT147,KT147,ST140198612-198712

55556ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-14080iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-198612

55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER

main55590-14010iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-198412

main55590-14020iAT14#,CT14#,KT147,ST140,TT142,YT140198412-198612

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-20010iCT14#198201-198612

main55606-20020iCT141198612-199111

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-14030iST140..HT..(EXA,EXS)198201-198508

main55607-20010iCT140,147;ST140..SED..(EXA,EXS)198201-198712

55633SUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.2

main55633-20020iCT141199001-199111

main55633-20060iYT140199001-199804

55636BRACKET, INSTRUMENT PANEL UNDER COVER, NO.1

main55636-24010iCT141198612-199111

55636ABRACKET, INSTRUMENT PANEL UNDER COVER, NO.2

main55636-14030iCT14#198201-198612

main55636-24010iST140..HT..(EXA,EXS)198201-198508

main55637-20060iCT141198612-199111

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-14010-01iYT140;CT147,RT141,ST140,TT14#..HT,V;AT140,CT140,TT142..SED..(GTT,STD)198201-198310

BLACK,BLACK,TRIM2#

main55680-14010-04iAT141,TT142..HT;AT140,ST140..EXS,GX198310-198712

BLUE,BLUE,TRIM8#

main55680-14010-06iCT147,KT147..DLX,GX198310-198508

DARK BROWN,BROWN,TRIM4#

main55680-14010-16iAT140,CT14#,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX198201-198310

SADDLE BROWN,BROWN,TRIM4#

5545920030BASE, TRANSMISSION CONTROL SWITCH

main55459-20030

9011906088

main90119-06088

9011906126

main90119-06126

9016750003

main90167-50003

9016750018

main90167-50018

9017906097

main90179-06097

9018305009

main90183-05009

9018305010

main90183-05010

9018305094

main90183-05094

9018305103

main90183-05103

9018905035

main90189-05035

9046806043

main90468-06043

9054103015

main90541-03015

9095001049

main90950-01049

9165540616

main91655-40616

9165540816

main91655-40816

9354055016

main93540-55016

9356055014

main93560-55014

9356755016

main93567-55016

9356755018

main93567-55018

9418040800

main94180-40800

43 parts on this diagram · 4 diagrams in section
