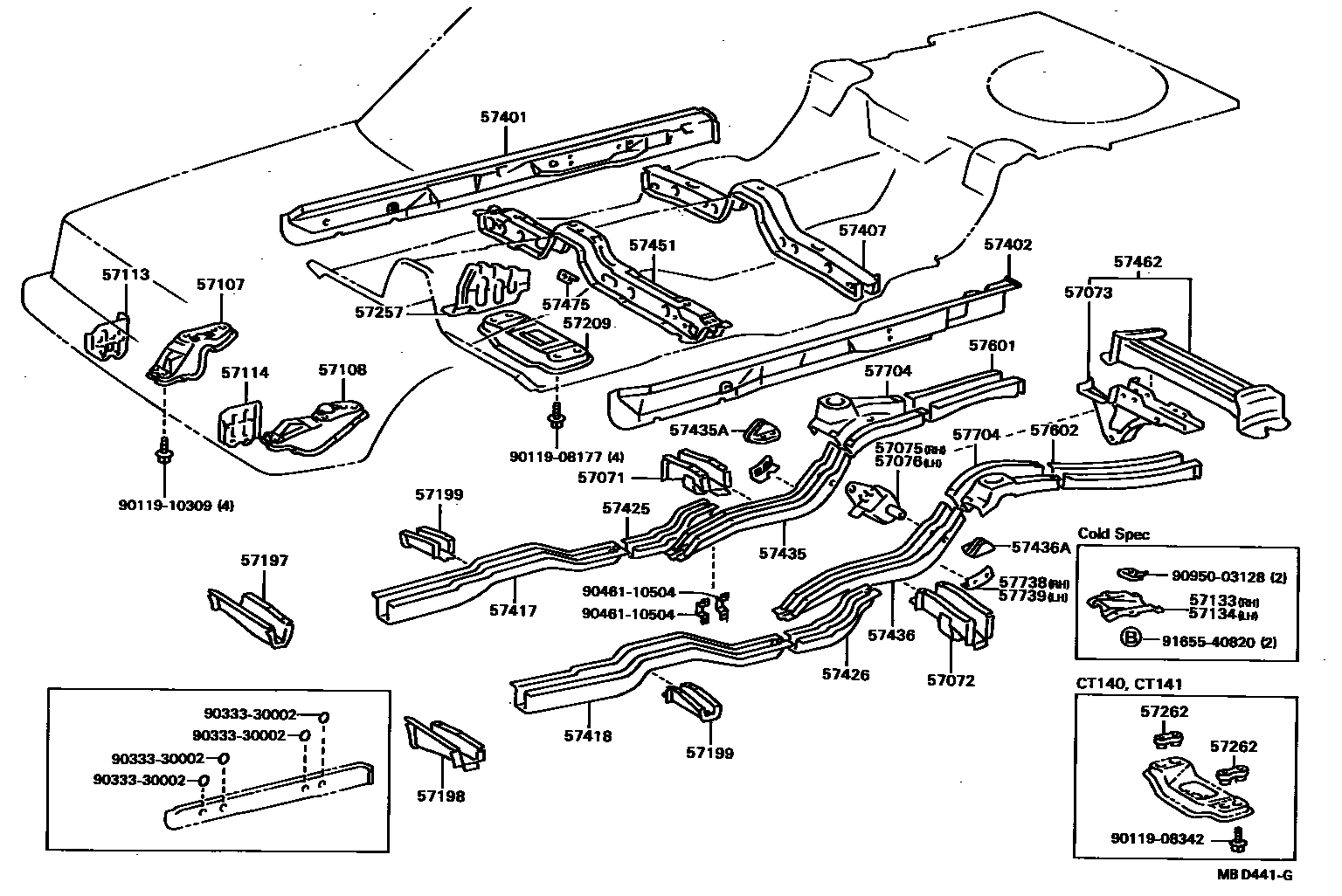

FLOOR SIDE MEMBER

0001 1 0002 1 0003 1 0004 1

57071BOX SUB-ASSY, TORQUE, REAR RH

main57071-14020iAT140,CT140,ST140198201-198712

main57071-14030iAT141,RT141,TT142198201-198508

57072BOX SUB-ASSY, TORQUE, REAR LH

main57072-14020iAT140,CT140,ST140198201-198712

main57072-14030iAT141,RT141,TT142198201-198508

57073BRACKET SUB-ASSY, LATERAL ROD

main57073-14040iCT141198612-199111

57075BRACKET SUB-ASSY, UPPER CONTROL LINK, RH

main57075-14030iCT141198612-199111

57076BRACKET SUB-ASSY, UPPER CONTROL LINK, LH

main57076-14030iAT140,CT140,ST140198201-198712

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-14080iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-198612

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-14080iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-198612

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-14070iAT140,CT147,KT147,ST140198612-198712

main57113-14090iAT141,RT141,ST140,TT142..HT198201-198508

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-14030iCT141,YT140198612-199804

main57114-14050iAT141,RT141,ST140,TT142..HT198201-198508

57133PROTECTOR, STRUT BAR BRACKET, RH

main57133-14030iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-198612

COLD SPEC

57134PROTECTOR, STRUT BAR BRACKET, LH

main57134-14020iCT141,YT140198612-199804

COLD SPEC

57197BOX, TORQUE, FRONT RH

main57197-14010iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-198612

57198BOX, TORQUE, FRONT LH

main57198-14010iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-198612

57199BOX, TORQUE, FRONT, NO.2

main58173-14010×2iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-198612

57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main57209-14170iTT14#..MTM..(DLX,GX,STD,SX)198201-198310

main57209-14180iAT140,KT147,ST140..MTM198201-198712

main57209-14190iTT14#..ATM..(GX,SX)198201-198310

main57209-14200iAT140,KT147..3FC198201-198712

main57209-14210iST140..4FC198201-198712

main57209-14220iCT14#..5F198201-198508

main57209-14230iCT140..4FC198201-198310

main57209-14270iTT142..4FC..GTT198209-198508

main57209-14290iAT141198310-198508

main57209-20120iYT140198209-198612

main57209-20150iCT14#198508-198612

main57209-20160iYT140198612-199804

57257BRACKET, ENGINE REAR SUPPORT MEMBER

main57257-14050iCT141,YT140198612-199804

RH

main57257-24010iTT142..4FC..GTT198210-198508

RH

main57258-24010iAT140,CT147,KT147,ST140198612-198712

LH

57262CUSHION, ENGINE REAR SUPPORT MEMBER

main57264-14010×2iCT147198612-198712

UPR

main57264-14020×2iCT140..4FC198201-198310

UPR

main57265-14010×2iCT141198612-199111

LWR

main57265-14020×2iCT140..4FC198201-198310

LWR

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-14190iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-198505

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-14190iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-198505

57407CROSSMEMBER SUB-ASSY, CENTER FLOOR, NO.1

main57407-14010iAT14#,CT140,RT141,ST140,TT142198201-198712

main57407-91C01iCT147,KT147,TT147198201-198712

main57461-14020iYT140198209-199804

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-24010iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-198612

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-24010iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-198612

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-14020iCT147,KT147,TT147198201-198712

main57425-24010iAT14#,CT140,RT141,ST140,TT142198201-198712

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-14020iCT147,KT147,TT147198201-198712

main57426-24010iCT141198612-199111

57435MEMBER, CENTER FLOOR SIDE, RH

main57435-14010iST140198201-198712

main57435-24010iAT141,RT141,TT142198201-198508

main57441-14010iCT141198612-199111

57435ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH

main58282-14010iAT140,CT140,ST140198201-198712

57436MEMBER, CENTER FLOOR SIDE, LH

main57436-14010iST140198201-198712

main57436-14020iAT141,RT141,TT142198201-198508

main57441-14010iAT140,CT140198201-198712

57436ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH

main58283-14010iAT140,CT140,ST140198201-198712

57451MEMBER, FRONT FLOOR CROSS

main57451-24010iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-198612

57462MEMBER, CENTER FLOOR CROSS, NO.2

main57405-14080iAT140,CT140,ST140198201-198712

main57405-14100iAT141,RT141,TT142198201-198508

57475PLATE, FRONT FLOOR CROSSMEMBER

main57475-24010×4iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-198612

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-14100iAT140,CT140,ST140198201-198603

main57601-14110iAT141,RT141,TT142..HT198201-198508

main57601-14120iAT140,CT140,ST140198603-198712

main57601-14130iAT141,RT141,TT142..SED198201-198508

main57601-20120iYT140198209-198612

main57601-20121iYT140198612-199804

main57601-91790iCT147,KT147,TT147198201-198712

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-14090iAT140,CT140,ST140198201-198603

main57602-14100iAT141,RT141,TT142..HT198201-198508

main57602-14110iCT141198612-199111

main57602-14120iAT141,RT141,TT142..SED198201-198508

main57602-20120iYT140198209-198612

main57602-20121iYT140198612-199804

main57602-91790iCT147,KT147,TT147198201-198712

57704SUPPORT SUB-ASSY, REAR SUSPENSION SPRING

main57701-14010iCT141198612-199111

RH

main57704-14010iAT140,CT140,ST140198201-198712

LH

main57723-14030iAT141,RT141,TT142198201-198508

RH

main57724-14020iAT141,RT141,TT142198201-198508

LH

57738REINFORCEMENT, REAR STABILIZER BRACKET, RH

main57738-14020iST140198201-198712

57739REINFORCEMENT, REAR STABILIZER BRACKET, LH

main57739-14010iST140198201-198712

9011908177

main90119-08177

9011908342

main90119-08342

9011910309

main90119-10309

9033330002

main90333-30002

9046110504

main90461-10504

9095003128

main90950-03128

9165540820

main91655-40820

43 parts on this diagram · 4 diagrams in section
