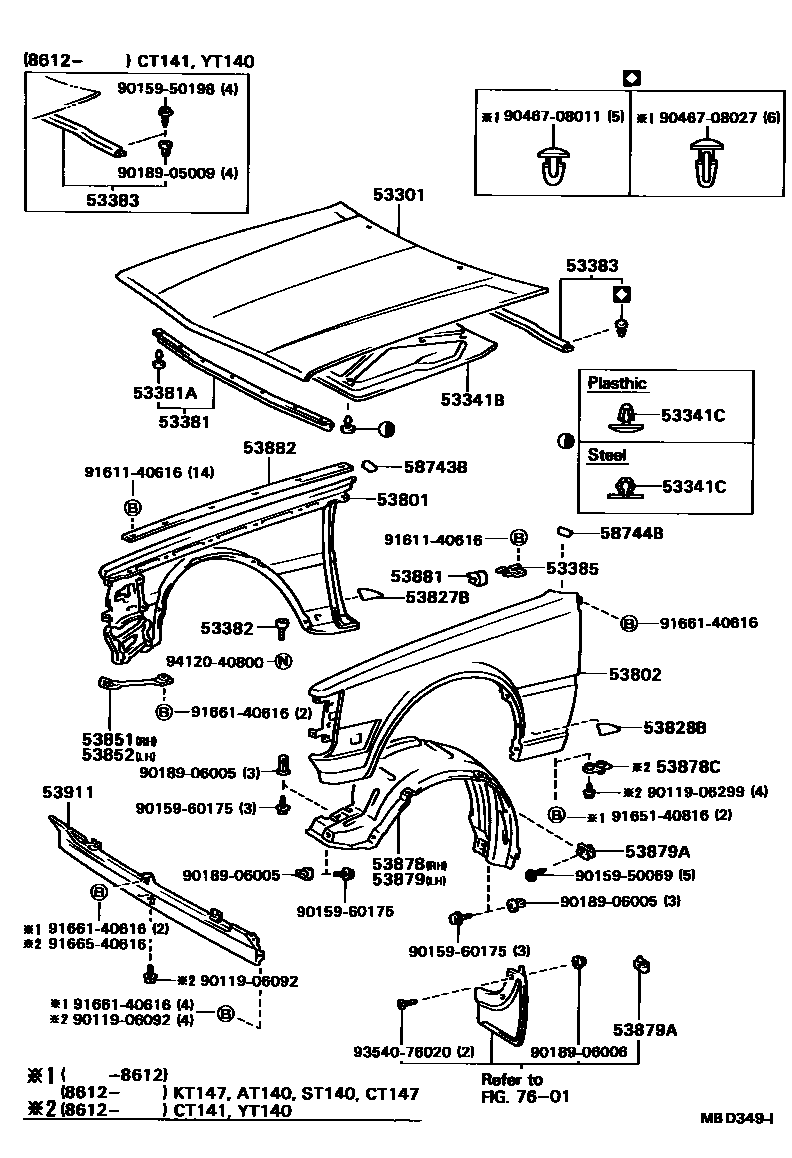

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-20140iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V198201-198612

main53301-20260iCT141,YT140198612-199804

main53301-91D01iAT141,RT141,ST140,TT142..HT198201-198508

53341BINSULATOR, HOOD

main53341-20050iCT147,ST140198612-198712

main53341-20070iTT142..SED..GTT198210-198508

main53341-20130iCT141198612-199111

main53341-91D01iAT141,RT141,ST140,TT142..HT..(EXA,EXS,GT,GX,SX)198201-198508

main53341-91D02iTT142..HT..GTT198210-198508

53341CCLIP(FOR HOOD INSULATOR)

main90467-09008×18iAT141,CT14#,RT141,ST140,TT142198201-198612

PLASTIC

main90467-09008-01×18iCT147,ST140198612-198712

PLASTIC,BLACK,BLACK,TRIM2#

main90467-11020×5iTT142..GTT198210-198508

STEEL

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-14090iAT140,CT147,KT147,ST140198612-198712

main53381-14100iAT141,RT141,ST140,TT142..HT198201-198508

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×7iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V198201-198612

main90467-08028×7iAT141,RT141,ST140,TT142..HT198201-198508

53382BUMPER, HOOD, FRONT

main53382-20011×2iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-198601

main53382-90A00×2iAT140,CT14#,KT147,ST140,YT140198601-198612

53383SEAL, HOOD TO COWL TOP

main53383-14080iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-198612

main53383-20070iCT140,YT140198508-198612

W/PANEL HEATER,TOHOKU SPEC

main53383-20100iCT141,YT140198612-199804

53385RETAINER, HOOD, BUMPER

main53385-14010iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-198612

RH

main53386-14010iAT140,CT147,KT147,ST140198612-198712

LH

53801FENDER SUB-ASSY, FRONT RH

main53801-20470iAT140,CT140,RT141,ST140,TT14#,YT140..(SED,V)..(EXA,EXS,GT,GTT,STD,SX)198201-198310

W/O ANTENA HOLE

main53801-20480iAT14#,TT142..SED..(GT,GTT,STD)198310-198508

W/DOOR MIRROR,W/O ANTENA HOLE

main53801-20490iAT140,CT14#,ST140,TT147,YT140..(SED,V)..(DLX,GX,GXA,STD)198201-198310

W/POLE TYPE ANTENNA

main53801-20570iAT140,ST140..GX198508-198712

W/DOOR MIRROR,ANTENA HOLE

main53801-2B010iCT141,YT140198612-199804

main53801-2B040iYT140..(3FC,5F)..DLX198612-199804

SUPER DLX

main53801-91D01iST140,TT142..HT..(GX,SX)198201-198310

W/O DOOR MIRROR

main53801-91D02iRT141,ST140,TT142..HT..(EXA,EXS,GT,GTT)198201-198310

W/O DOOR MIRROR

main53801-91D04iST140..HT..GX198310-198508

W/O DOOR MIRROR

main53801-91D05iAT141,ST140,TT142..HT..(EXS,GT,GTT)198310-198508

W/O DOOR MIRROR

main53801-91D07iST140..HT..GX198310-198508

W/DOOR MIRROR

main53801-91D08iAT141,ST140,TT142..HT..(EXS,GT,GTT)198310-198508

W/DOOR MIRROR

main53801-91D10iST140,TT142..HT..(GX,SX)198305-198310

W/DOOR MIRROR

main53801-91D11iST140,TT142..HT..(EXA,EXS,GTT)198305-198310

W/DOOR MIRROR

53802FENDER SUB-ASSY, FRONT LH

main53802-20550iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V198201-198612

W/O DOOR MIROOR

main53802-20570iAT14#,ST140,TT142..SED198310-198712

W/DOOR MIRROR

main53802-2B010iCT141,YT140198612-199804

main53802-2B030iYT140..(3FC,5F)..DLX198612-199804

SUPER DLX

main53802-91D01iST140,TT142..HT..(GX,SX)198201-198310

main53802-91D02iRT141,ST140,TT142..HT..(EXA,EXS,GT,GTT)198201-198310

main53802-91D04iST140..HT..GX198310-198508

W/O DOOR MIRROR

main53802-91D05iAT141,ST140,TT142..HT..(EXS,GT,GTT)198310-198508

W/O DOOR MIRROR

main53802-91D07iST140..HT..GX198310-198508

W/DOOR MIRROR

main53802-91D08iAT141,ST140,TT142..HT..(EXS,GT,GTT)198310-198508

W/DOOR MIRROR

main53802-91D10iST140,TT142..HT..(GX,SX)198305-198310

W/DOOR MIRROR

main53802-91D11iST140,TT142..HT..(EXA,EXS,GTT)198305-198310

W/DOOR MIRROR

53827BPROTECTOR, FRONT FENDER SIDE PANEL

main53827-20050iCT141,YT140199009-199804

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-20050iCT141,YT140199009-199804

53851BRACE, FRONT FENDER TO RADIATOR SUPPORT, RH

main53851-14010iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V198201-198612

main53851-91D01iAT141,RT141,ST140,TT142..HT198201-198508

53852BRACE, FRONT FENDER TO RADIATOR SUPPORT, LH

main53852-14010iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V198201-198612

main53852-91D01iAT141,RT141,ST140,TT142..HT198201-198508

53878LINER, FRONT FENDER, RH

main53875-14110iAT141,RT141,ST140,TT142..HT198201-198508

main53875-20040iCT141,YT140198612-199804

53878CSPACER, FRONT FENDER

main53878-22010×2iCT141,YT140198612-199804

53879LINER, FRONT FENDER, LH

main53876-14110iAT141,RT141,ST140,TT142..HT198201-198508

main53876-20050iAT140,CT147,KT147,ST140198612-198712

53879ARETAINER, FRONT FENDER LINER

main53879-14010×10iAT14#,CT140,147,KT147,ST140,TT142,YT140..SED,V198310-199804

TYPE A

main53879-91D01×4iAT141,ST140,TT142..HT198310-198508

TYPE B

53881BUMPER, FENDER TO HOOD

main53384-14030×2iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-198612

53882PACKING, FRONT FENDER MAIN

main53882-14090×2iAT140,CT147,KT147,ST140198612-198712

main53882-20070×2iCT141,YT140198612-199804

53911PANEL, FRONT VALANCE

main53901-91D01iRT141,ST140,TT142..HT198201-198310

main53901-91D02iAT141,ST140,TT142..HT198310-198508

main53911-14140iCT141,YT140198612-199008

main53911-20080iAT140,CT147,KT147,ST140198612-198712

main53911-20210iCT141,YT140199008-199804

58743BPROTECTER, FRONT FENDER PANEL, RH

main58743-20050iCT141,YT140199009-199804

58744BPROTECTER, FRONT FENDER PANEL, LH

main58743-20050iCT141,YT140199009-199804

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9011906092

main90119-06092

9011906299

main90119-06299

9015950069

main90159-50069

9015950198

main90159-50198

9015960175

main90159-60175

9018905009

main90189-05009

9018906005

main90189-06005

9018906006

main90189-06006

9046708011

main90467-08011

9046708027

main90467-08027

9161140616

main91611-40616

9165140816

main91651-40816

9166140616

main91661-40616

9166540616

main91665-40616

9354076020

main93540-76020

9412040800

main94120-40800

40 parts on this diagram · 2 diagrams in section
