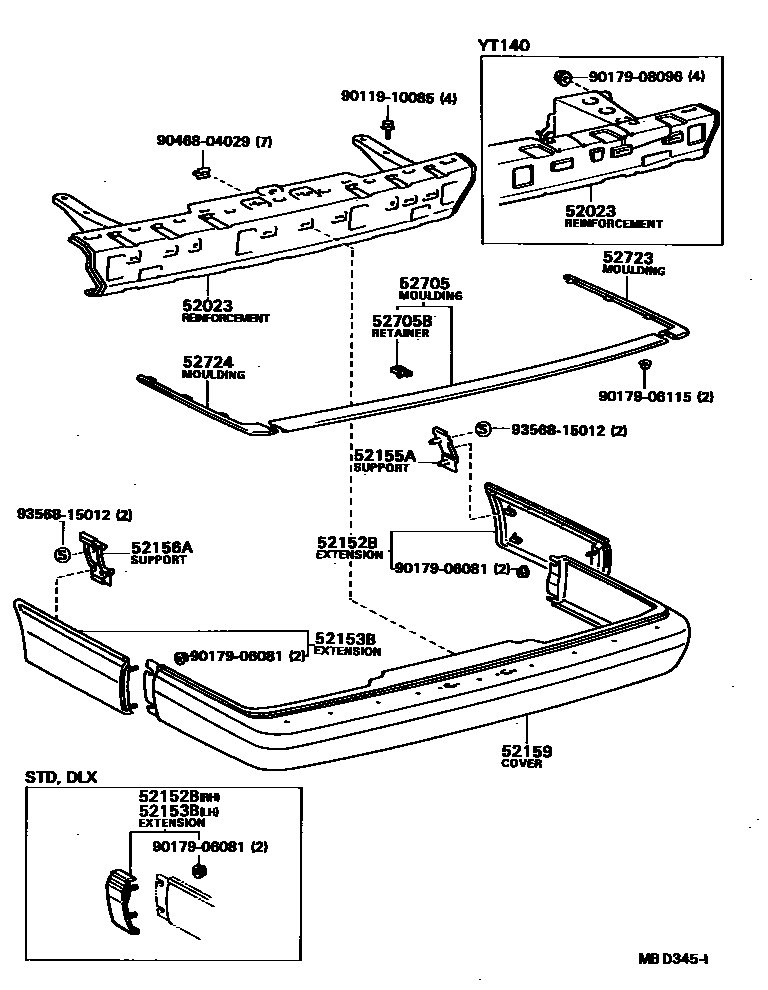

REAR BUMPER & BUMPER STAY

0001 1 0003 1 0004 1 0005 1 0006 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-20050iAT140,CT140,ST140..SED..(DLX,GX,GXA)198201-198207

main52023-20070iST140..SED..GX198208-198310

GX EXTRA

main52023-20080iYT140198209-198612

main52023-20090iCT140,ST140,TT142..SED..(EXA,EXS,GX,GXA,SX)198201-198310

W/BACK SONER

main52023-20100iAT140,CT140,ST140..SED..(DLX,GX,GXA,STD)198207-198712

main52023-20240iYT140198612-199804

main52023-20250iCT141198612-199111

main52023-91259iCT147,KT147,TT147198201-198712

main52023-91D01iAT141,RT141,ST140,TT142..HT198201-198508

52152BEXTENSION, REAR BUMPER, RH

main52106-29105iAT140,CT140,YT140..DLX,STD198201-198612

main52106-29115iAT140,CT140,ST140,TT142..SED..(EXA,EXS,GX,GXA,SX)198201-198712

52153BEXTENSION, REAR BUMPER, LH

main52107-29225iAT140,CT140,YT140..DLX,STD198201-198612

main52107-29235iAT140,CT140,ST140,TT142..SED..(EXA,EXS,GX,GXA,SX)198201-198712

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-14081iCT141,YT140198612-199804

main52155-20070iAT141,CT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT,SX)198201-198508

W/*UB

main52155-20080iAT140,CT140,ST140,TT142..SED..(EXA,EXS,GX,GXA,SX)198201-198712

main52155-91257iCT147,KT147,TT147198201-198712

52156ASUPPORT, REAR BUMPER SIDE, LH

main52155-91257iCT147,KT147,TT147198201-198712

main52156-14081iCT141,YT140198612-199804

main52156-20080iST140..SED..GX198208-198310

GX EXTRA

main52156-20090iAT140,CT140,ST140,TT142..SED..(EXA,EXS,GX,GXA,SX)198201-198712

52159COVER, REAR BUMPER

main52159-14110iCT141,YT140198612-199804

main52159-20050iAT140,CT140,ST140..SED..(DLX,GX,GXA)198201-198712

main52159-20060-02iCT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,SX)198201-198209

W/*UB,APRICOT-M,RED/MAROON,3B4

main52159-20060-03iCT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,SX)198201-198209

W/*UB,SILVER-M,GRAY,125 ,2G5

main52159-20060-04iCT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,SX)198201-198209

W/*UB,BLUE-M,BLUE,889

main52159-20060-05iST140..SED..GX198208-198209

GX EXTRA,BEIGE-M,BEIGE,4A5

main52159-20060-08iST140..SED..GX198208-198209

GX EXTRA,WHITE,IVORY,033

main52159-20061-02iCT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,SX)198209-198210

W/*UB,APRICOT-M,RED/MAROON,3B4

main52159-20061-03iCT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT,SX)198209-198310

W/*UB,SILVER-M,GRAY,125 ,2G5

main52159-20061-04iCT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT,SX); ST140..SED..GX198209-198310

GX EXTRA,BLUE-M,BLUE,889; W/*UB,BLUE-M,BLUE,889

main52159-20061-05iCT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT,SX)198209-198310

W/*UB,BEIGE-M,BEIGE,4A5 ,2E2

main52159-20061-08iCT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT,SX); ST140..SED..GX198209-198310

GX EXTRA,WHITE,IVORY,033; W/*UB,WHITE,IVORY,033

main52159-20061-12iCT140,ST140,TT142..SED..(EXA,EXS,GTT,SX)198210-198310

W/*UB,RED,RED/MAROON,391

main52159-20061-14iCT140,ST140,TT142..SED..(EXA,EXS,GTT,SX)198210-198310

W/*UB,BLUE-M,BLUE,896

main52159-20061-15iST140..SED..GX198306-198310

GX EXTRA,LIGHT BEIGE-M,BEIGE,4D2

main52159-20080iCT140,ST140,TT142..SED..(EXA,EXS,GX,GXA,SX)198201-198310

W/BACK SONER

main52159-20090iAT140..STD198612-198712

main52159-20200-02iAT141,TT142..SED198310-198508

RED,RED/MAROON,3D7

main52159-20200-03iAT141,TT142..SED198310-198508

SILVER-M,GRAY,2R9

main52159-20200-04iAT141,TT142..SED198310-198508

LIGHT BLUE-M,BLUE,894

main52159-20200-07iAT141,TT142..SED198310-198508

TURQUOISE-M,GREEN,718

main52159-20200-08iAT141,TT142..SED198310-198508

WHITE,IVORY,038

main52159-20200-14iAT141,TT142..SED198310-198508

DARK BLUE-M,BLUE,896

main52159-91257iKT147,TT147..GX198201-198712

main52159-91258iCT147,KT147,TT147..DLX,STD198201-198712

main52159-91D01-01iRT141,ST140,TT142..HT198201-198310

BLACK-M,BLACK,203 ,2E1

main52159-91D01-02iRT141,ST140,TT142..HT198201-198210

APRICOT-M,RED/MAROON,3B4

main52159-91D01-03iRT141,ST140,TT142..HT198201-198310

SILVER-M,GRAY,125 ,2G5

main52159-91D01-07iAT141,ST140,TT142..HT198310-198508

TURQUOISE-M,GREEN,722

main52159-91D01-08iRT141,ST140,TT142..HT198201-198310

WHITE,IVORY,033

main52159-91D01-12iRT141,ST140,TT142..HT198201-198310

RED,RED/MAROON,391

main52159-91D01-13iAT141,ST140,TT142..HT198310-198508

SILVER-M,GRAY,2S1

main52159-91D01-14iAT141,ST140,TT142..HT198210-198508

BLUE-M,BLUE,896

main52159-91D01-18iTT142..HT..GTT198306-198310

SUPER WHITE,IVORY,035

main52159-91D01-22iAT141,ST140,TT142..HT198310-198508

RED,RED/MAROON,3D7

main52159-91D01-28iAT141,ST140,TT142..HT198310-198508

WHITE,IVORY,038

52705MOULDING SUB-ASSY, REAR BUMPER

main52705-20030iTT147..GX;AT140,CT140,ST140,TT142..SED..(DLX,EXA,EXS,GX,GXA,SX)198201-198301

main52705-91255iKT147,TT147..GX198301-198712

main52751-14030iYT140..DLX198612-199804

main52751-14040iYT140..(3FC,5F)..DLX198612-199804

SUPER DLX

main52751-20180iCT141,YT140..STD198612-199804

52705BRETAINER, REAR BUMPER MOULDING

main52755-20010iKT147,TT147..GX198301-198712

CTR,W/BOLT

main52756-20010iKT147,TT147..GX;AT140,CT140,ST140,TT142..SED..(DLX,EXA,EXS,GX,GXA,SX)198201-198712

LH

main52757-20020×7iTT147..GX;AT140,CT140,ST140,TT142..SED..(DLX,EXA,EXS,GX,GXA,SX)198201-198209

CTR

52723MOULDING, REAR BUMPER EXTENSION, RH

main52752-20010iAT140,CT140,ST140,TT142..SED..(DLX,EXA,EXS,GX,GXA,SX)198201-198712

main52752-20021iYT140;AT140,CT140..STD198201-198612

main52752-91255iKT147,TT147..GX198201-198712

main52752-91256iCT147,KT147,TT147..DLX,STD198201-198712

52724MOULDING, REAR BUMPER EXTENSION, LH

main52753-20010iAT140,CT140,ST140,TT142..SED..(DLX,EXA,EXS,GX,GXA,SX)198201-198712

main52753-20021iAT140..STD198612-198712

main52753-91255iKT147,TT147..GX198201-198712

main52753-91256iCT147,KT147,TT147..DLX,STD198201-198712

9011910085

main90119-10085

9017906081

main90179-06081

9017906115

main90179-06115

9017908096

main90179-08096

9046804029

main90468-04029

9356815012

main93568-15012

16 parts on this diagram · 5 diagrams in section
