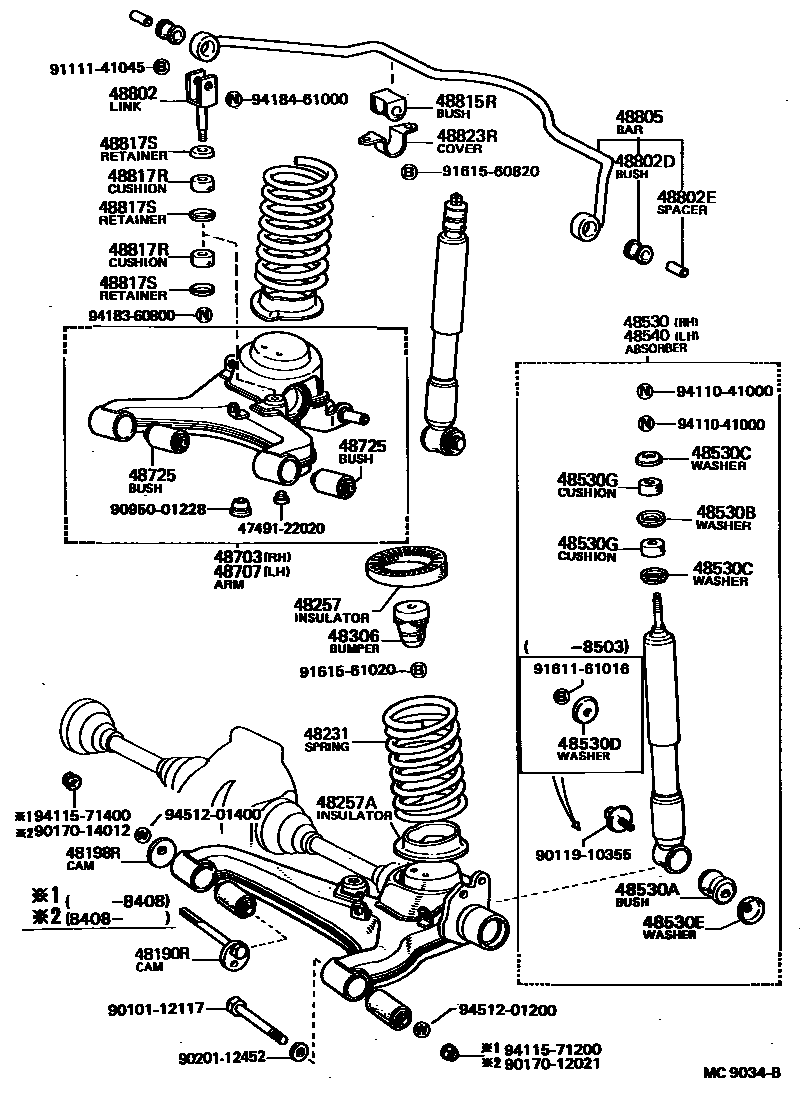

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1 0009 1

48190RCAM ASSY, CAMBER ADJUST

main48190-22010×2iAT141,RT141,TT142198201-198508

48198RCAM, REAR SUSPENSION CAMBER ADJUST, NO.2

main48198-22010×2iAT141,RT141,TT142198201-198508

48231SPRING, COIL, REAR

main48231-14410×2iRT141,TT142198201-198211

main48231-14500×2iAT140198310-198712

main48231-14570×2iCT140,ST140..EXA,EXS198301-198310

main48231-14660×2iAT141,TT142198211-198508

main48231-20110×2iCT140,ST140..EXA,EXS198209-198301

main48231-20130×2iCT140,ST140..EXA,EXS198201-198209

main48231-20150×2iCT140..STD198201-198310

main48231-20170×2iCT140,141198310-199111

main48231-20230×2iCT140..GX;AT140,ST140..DLX,GX,GXA,STD198209-198301

main48231-20350×2iST140198310-198712

48257INSULATOR, REAR COIL SPRING

main48257-12020×2iAT140,CT140,141,ST140198208-199111

main48257-14020×2iAT140,CT140,ST140198201-198208

main48257-22030×2iAT141,RT141,TT142198201-198508

48257AINSULATOR, REAR COIL SPRING, LOWER

main48258-14030×2iAT140,CT140,141,ST140198201-199111

main48258-22040iRT141,TT142198201-198305

RH

main48258-22041iAT141,TT142198305-198508

RH

main48258-22050iAT141,RT141,TT142198201-198508

LH

48306BUMPER SUB-ASSY, REAR SPRING

main48306-14030×2iAT140,CT140,141,ST140198201-199111

main48306-19055×2iCT147,KT147,TT147198201-198712

main48306-29035×2iYT140198209-199804

main48341-22060×2iAT141,RT141,TT142198201-198508

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-14590iST140198511-198712

main48531-19775iST140..HT198310-198508

main48531-19845iRT141,TT142198201-198301

main48531-19875iST140198201-198310

main48531-20210iYT140198511-198612

main48531-20250iAT140,CT140,141198511-198802

main48531-20290iYT140198612-198712

main48531-21050iCT147,KT147198511-198712

main48531-29885iCT147,KT147,TT147198201-198511

main48531-29895iYT140198209-198511

main48531-80001iAT140,CT140198201-198511

main48531-80033iAT141,TT142..GT,GTT198301-198508

main48531-80395iYT140198712-198801

main48531-80396iYT140198801-199308

main48531-80435iYT140199308-199804

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16004×2iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-198708

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02007×2iYT140198209-199804

main90948-02050×2iAT140,CT14#,RT141,ST140,TT14#198201-198302

main90948-02075×2iAT141,TT142198302-198508

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-02002×4iAT141,CT147,KT147,RT141,TT14#198201-198712

main90948-02045×2iAT140,CT140,141,ST140,YT140198201-199804

UPR

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03012×2iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-198503

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004×2iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90540-10002×2iAT140,CT140,141,ST140198201-199111

LWR

main90540-10004×2iYT140198209-199804

LWR

main90540-10005×2iYT140198209-199804

UPR

main90948-01003×4iCT147,KT147,TT147198201-198712

main90948-01019×2iAT141,RT141,TT142198201-198508

LWR

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-14590iST140198511-198712

main48531-19775iST140..HT198310-198508

main48531-19845iRT141,TT142198201-198301

main48531-19875iST140..SED198310-198511

main48531-20210iYT140198511-198612

main48531-20250iAT140,CT140,141198511-198802

main48531-20290iYT140198612-198712

main48531-21050iCT147,KT147198511-198712

main48531-29885iCT147,KT147,TT147198201-198511

main48531-29895iYT140198209-198511

main48531-80001iAT140,CT140198201-198511

main48531-80033iAT141,TT142..GT,GTT198301-198508

main48531-80395iYT140198712-198801

main48531-80396iYT140198801-199308

main48531-80435iYT140199308-199804

48703ARM SUB-ASSY, REAR SUSPENSION, RH

main48703-14900iTT142..SX198201-198310

main48703-22900iAT141,RT141,TT142..GT,GTT198201-198407

main48703-22904iAT141,TT142198407-198508

48707ARM SUB-ASSY, REAR SUSPENSION, LH

main48707-14900iTT142..SX198201-198310

main48707-22900iAT141,RT141,TT142..GT,GTT198201-198407

main48707-22904iAT141,TT142198407-198508

48725BUSH, LOWER CONTROL ARM

main48702-14020×4iAT140,CT140,ST140; AT140,ST140;CT140..EXS,GX198201-198712

ARM L=470; ARM L=475

main48702-20010×4iCT140,141..STD198201-199111

ARM L=475

main48725-22030×2iAT141,RT141,TT142198201-198508

OUTER

main48725-22040×2iAT141,RT141,TT142198201-198508

INNER

48802LINK SUB-ASSY, STABILIZER

main48802-14030×2iAT141,RT141,TT142198201-198508

main48802-14040×2iST140198201-198712

48802DBUSH, STABILIZER LINK

main90385-11021×4iAT141,RT141,ST140,TT142198201-199111

48802ESPACER(FOR REAR STABILIZER BAR)

main90560-10275×4iAT141,RT141,ST140,TT142198201-199111

48805BAR SUB-ASSY, REAR STABILIZER

main48805-14100iST140198201-198712

main48805-14140iAT141,RT141,TT142198201-198508

D=14

main48805-14170iAT141,TT142198311-198508

W/POWER STEERING,D=15

48815RBUSH, STABILIZER(FOR REAR)

main48815-14030×2iAT141,TT142..GT,GTT198210-198311

W/POWER STEERING,ID=15

main48815-14060×2iAT141,RT141,ST140,TT142198201-198712

ID=14

48817RCUSHION, STABILIZER(FOR REAR)

main48817-12010×4iAT141,RT141,ST140,TT142198201-198712

48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)

main90948-02024×4iAT141,RT141,ST140,TT142198201-198712

T=1.2

main90948-02025×2iAT141,RT141,ST140,TT142198201-198712

T=1.0

48823RCOVER, STABILIZER LINK(FOR REAR)

main48832-14020×2iAT141,RT141,TT142198201-198508

main48832-22020×2iST140198201-198712

4749122020PLUG, HOLE(FOR FRONT BRAKE)

main47491-22020

9010112117

main90101-12117

9011910355

main90119-10355

9017012021

main90170-12021

9017014012

main90170-14012

9020112452

main90201-12452

9095001228

main90950-01228

9111141045

main91111-41045

9161161016

main91611-61016

9161560820

main91615-60820

9161561020

main91615-61020

9411041000

main94110-41000

9411571200

main94115-71200

9411571400

main94115-71400

9418360800

main94183-60800

9418461000

main94184-61000

9451201200

main94512-01200

9451201400

main94512-01400

43 parts on this diagram · 8 diagrams in section
