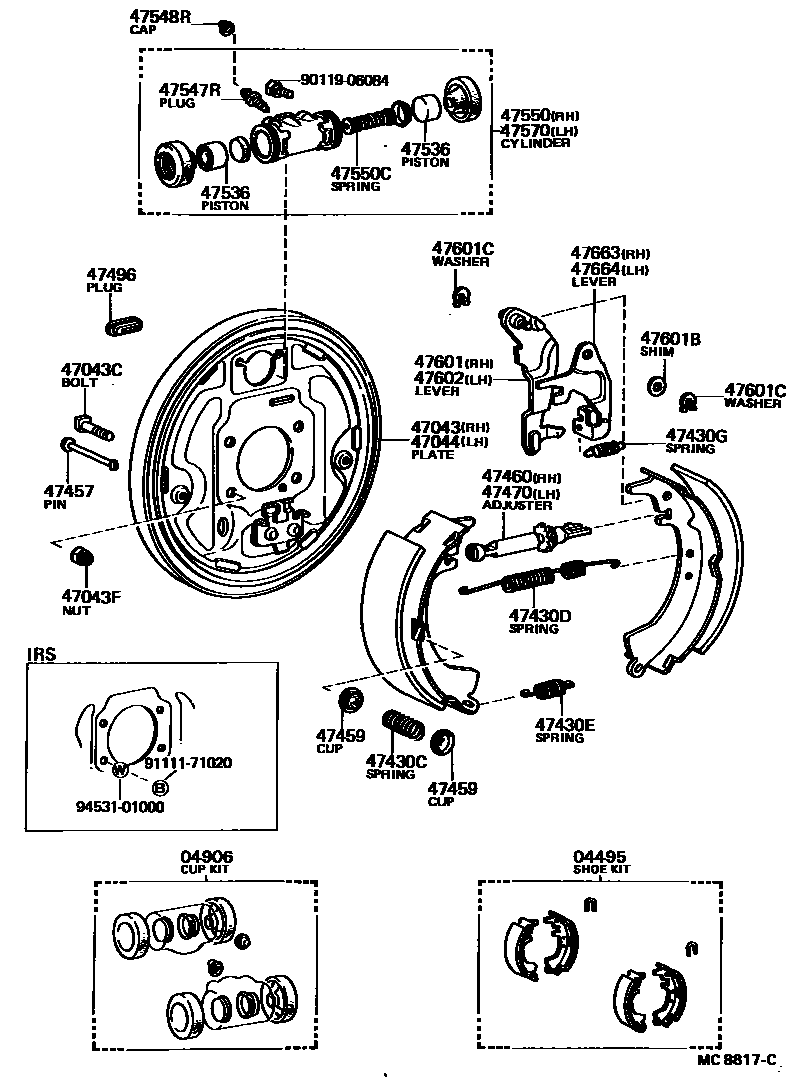

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04495SHOE KIT, REAR BRAKE

main04495-14010iAT140,CT140,147,KT147,ST140,TT147..DLX,EXS,GX198201-198712

main04495-14040iTT142..SX198201-198310

main04495-20060iCT140,141,YT140..DLX,STD198201-198809

FR DRUM BRAKE

main04495-20061iCT141,YT140198809-199306

FR DRUM BRAKE

main04495-20070iCT140,141,YT140..DLX,STD198201-198809

FR DISC BRAKE

main04495-20071iCT141,YT140198809-199804

FR DISC BRAKE

main04495-20160iYT140199306-199804

main04497-14010iAT140,CT140,147,KT147,ST140,TT147..DLX,EXS,GX198201-198712

REBUILT

main04497-14030iTT142..SX198201-198310

REBUILT

main04497-20040iCT140,141,YT140..DLX,STD198201-198809

REBUILT,FR DRUM BRAKE

main04497-20041iCT141,YT140198809-199306

REBUILT,FR DRUM BRAKE

main04497-20050iCT140,141,YT140..DLX,STD198201-198809

REBUILT,FR DISC BRAKE

main04497-20051iCT141,YT140198809-199804

REBUILT,FR DISC BRAKE

04906CUP KIT, REAR WHEEL CYLINDER

main04906-12040iAT140,CT14#,KT147,ST140,TT14#,YT140..DLX,EXA,EXS,GX,GXA,STD,SX198201-199804

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-14040iTT142..SX198201-198310

main47043-20050iAT140,CT140,147,KT147,ST140,TT147..DLX,EXS,GX198201-198712

main47043-20070iCT140,141,YT140..STD198201-199804

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-22011×8iAT140,CT14#,KT147,ST140,TT147,YT140198201-199804

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main94181-11000×8iAT140,CT14#,KT147,ST140,TT147,YT140198201-199804

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-14040iTT142..SX198201-198310

main47044-20050iAT140,CT140,147,KT147,ST140,TT147..DLX,EXS,GX198201-198712

main47044-20070iCT140,141,YT140..STD198201-199804

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-18017×4iAT140,CT14#,KT147,ST140,TT14#,YT140..DLX,EXA,EXS,GX,GXA,STD,SX198201-199804

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23375×2iAT140,CT14#,KT147,ST140,TT147,YT140198201-199804

main90506-29008iTT142..SX198201-198310

RH

main90506-29009iTT142..SX198201-198310

LH

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23346×2iAT140,CT14#,KT147,ST140,TT14#,YT140..DLX,EXA,EXS,GX,GXA,STD,SX198201-199804

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12011×2iAT140,CT14#,KT147,ST140,TT14#,YT140..DLX,EXA,EXS,GX,GXA,STD,SX198201-199804

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20030×4iAT140,CT140,KT147,ST140,TT14#..EXS,GX,SX198201-198712

main47447-30010×4iCT140,141,YT140..STD198201-199804

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iAT140,CT14#,KT147,ST140,TT14#,YT140..DLX,EXA,EXS,GX,GXA,STD,SX198201-199804

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-14021iAT140,CT14#,ST140,TT14#,YT140..DLX,EXA,EXS,GX,GXA,STD,SX198201-198308

main47061-14040iAT140,CT147,KT147,ST140198710-198712

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-14021iAT140,CT14#,KT147,ST140,TT147,YT140198308-198710

main47062-14040iAT140,CT147,KT147,ST140198710-198712

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iAT140,CT14#,KT147,ST140,TT14#,YT140..DLX,EXA,EXS,GX,GXA,STD,SX198201-199804

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-22040×4iAT140,CT14#,KT147,ST140,TT14#,YT140..DLX,EXA,EXS,GX,GXA,STD,SX198201-199804

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iAT140,CT14#,KT147,ST140,TT14#,YT140..DLX,EXA,EXS,GX,GXA,STD,SX198201-199804

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iAT140,CT14#,KT147,ST140,TT14#,YT140..DLX,EXA,EXS,GX,GXA,STD,SX198201-199804

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-12060iAT140,CT141,147,KT147,ST140,YT140198606-199804

main47550-19135iAT140,CT14#,KT147,ST140,TT14#,YT140..DLX,EXA,EXS,GX,GXA,STD,SX198201-198606

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-12020×2iAT140,CT14#,KT147,ST140,TT14#,YT140..DLX,EXA,EXS,GX,GXA,STD,SX198201-199804

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-12060iAT140,CT141,147,KT147,ST140,YT140198606-199804

main47550-19135iAT140,CT14#,KT147,ST140,TT14#,YT140..DLX,EXA,EXS,GX,GXA,STD,SX198201-198606

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-14010iAT140,CT14#,KT147,ST140,TT147,YT140198201-199804

main47601-14020iTT142..SX198201-198310

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150×2iAT140,CT14#,KT147,ST140,TT14#,YT140..DLX,EXA,EXS,GX,GXA,STD,SX198201-199804

main90564-08151×2iAT140,CT14#,KT147,ST140,TT14#,YT140..DLX,EXA,EXS,GX,GXA,STD,SX198201-199804

main90564-08152×2iAT140,CT14#,KT147,ST140,TT14#,YT140..DLX,EXA,EXS,GX,GXA,STD,SX198201-199804

main90564-08172×2iAT140,CT14#,KT147,ST140,TT14#,YT140..DLX,EXA,EXS,GX,GXA,STD,SX198201-199804

main90564-08173×2iAT140,CT140,KT147,ST140,TT14#..EXS,GX,SX198201-198712

main90564-08174×2iAT140,CT140,KT147,ST140,TT14#..EXS,GX,SX198201-198712

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013×4iAT140,CT14#,KT147,ST140,TT14#,YT140..DLX,EXA,EXS,GX,GXA,STD,SX198201-199804

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-14010iAT140,CT14#,KT147,ST140,TT147,YT140198201-199804

main47602-14020iTT142..SX198201-198310

47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47643-20020iAT140,CT14#,KT147,ST140,TT14#,YT140..DLX,EXA,EXS,GX,GXA,STD,SX198201-199804

47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47644-20020iAT140,CT14#,KT147,ST140,TT14#,YT140..DLX,EXA,EXS,GX,GXA,STD,SX198201-199804

9011906084

main90119-06084

9111171020

main91111-71020

9453101000

main94531-01000

30 parts on this diagram · 1 diagram in section
