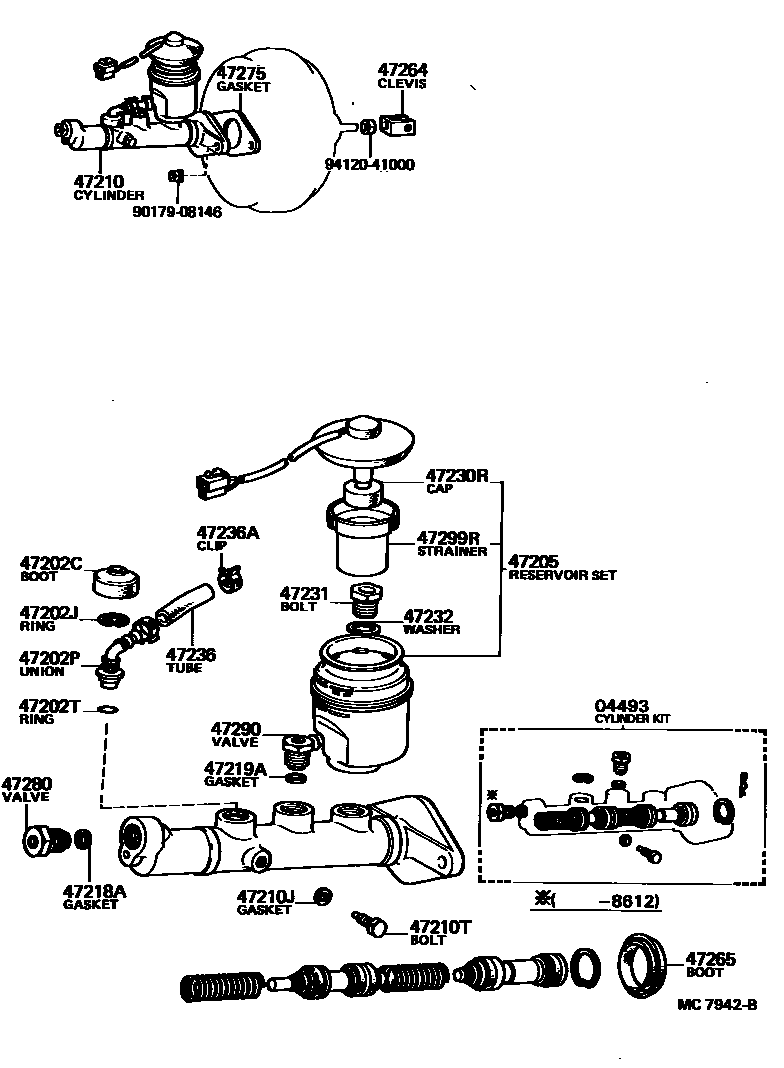

BRAKE MASTER CYLINDER

0001 1 0003 1

04493CYLINDER KIT, BRAKE MASTER

main04493-20100iAT140,CT14#,KT147,ST140,TT147,YT140198201-198712

main04493-20150iCT141,YT140198612-199804

main04493-24010iAT141,RT141,TT142198201-198508

47202CBOOT, RESERVOIR, NO.1(FOR BRAKE MASTER CYLINDER SIDE)

main47265-20060iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

47202JRING, SNAP(FOR BRAKE MASTER CYLINDER SIDE)

main96151-02000iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)

main90407-10003iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

sub90407-10004

47202TRING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1)

main90301-14001iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

47205RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE)

main47202-14250iAT141,RT141,TT142198201-198508

main47202-14270iAT140,CT14#,KT147,ST140,TT147,YT140198201-199804

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-14350iAT140,CT14#,KT147,ST140,TT147,YT140198201-198712

main47201-14420iRT141,TT142..GT,SX198201-198310

sub47201-14460

main47201-14440iTT142..GTT198210-198310

sub47201-14450

main47201-14450iTT142198310-198508

main47201-14460iAT141198310-198508

main47201-20440iCT141,YT140198612-199804

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-09253iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)

main90430-09253iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

47230RCAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE)

main84460-12011iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET

main47231-30010iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

47232WASHER, BRAKE RESERVOIR SET BOLT

main47232-30010iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

47236TUBE, RESERVOIR BRAKE

main47234-14010iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16001iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

sub96134-51500

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-20030iCT140,141,YT140..STD198201-199804

main47264-22010iAT140,CT140,KT147,ST140,TT147..EXS,GX198201-198712

47265BOOT, MASTER CYLINDER

main47265-20050iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

47275GASKET, BRAKE MASTER CYLINDER

main47275-14010iAT140,CT14#,KT147,ST140,TT147,YT140198201-198712

sub47275-26010

main47275-24010iAT141,RT141,TT142198201-199804

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47218-12040iAT140,CT14#,ST140,TT14#,YT140198307-199804

main47280-30030iAT140,CT14#,RT141,ST140,TT14#,YT140198201-198307

sub47280-14010

47290VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)

main47218-12040iAT140,CT14#,ST140,TT14#,YT140198308-199804

main47280-30030iAT140,CT14#,RT141,ST140,TT14#,YT140198201-198308

sub47280-14010

47299RSTRAINER, MASTER CYLINDER RESERVOIR, REAR

main47299-14010iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

9017908146

main90179-08146

9412041000

main94120-41000

24 parts on this diagram · 2 diagrams in section
