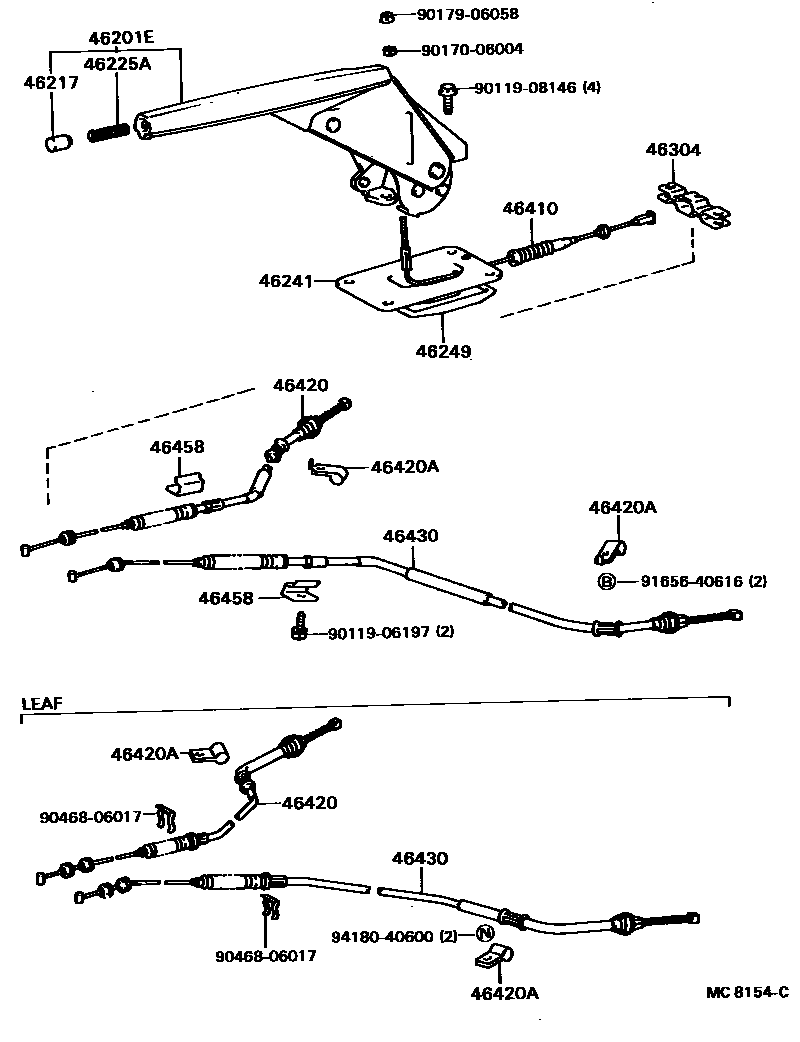

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-14110-01iCT147,TT147;AT140,CT140..STD; ST140,TT142..HT..(GX,SX)198201-198305

BLACK,BLACK,TRIM2#

main46201-14110-04iAT140,CT140,ST140,TT142..DLX,GX,GXA,SX198201-198305

BLUE,BLUE,TRIM8#

main46201-14110-16iAT140,CT14#,ST140,TT14#..DLX,GX,GXA,SX198201-198305

SADDLE BROWN,BROWN,TRIM4#

main46201-14130-01iCT147,KT147,TT147;AT140,CT140,141..STD; YT140..3FC,5F198305-198802

BLACK,BLACK,TRIM2#

main46201-14130-04iAT140,CT140,ST140,TT142..DLX,GX,GXA,SX198305-198508

BLUE,BLUE,TRIM8#

main46201-14130-16iAT140,CT140,147,KT147,ST140,TT14#..DLX,GX,GXA,SX198305-198802

SADDLE BROWN,BROWN,TRIM4#

main46201-14200-01iCT141198802-199111

BLACK,BLACK,TRIM2#

main46201-14200-16iCT141198802-199111

BROWN,BROWN,TRIM4#

main46201-24010-01iRT141,ST140..HT..(EXA,EXS,GT)198201-198310

BLACK,BLACK,TRIM2#

main46201-24010-04iAT141,ST140,TT142..HT..(EXS,GT,GTT)198310-198508

BLUE,BLUE,TRIM8#

main46201-24010-16iCT140,RT141,ST140..EXA,EXS,GT198201-198310

SADDLE BROWN,BROWN,TRIM4#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-10020-01iAT14#,CT14#,KT147,ST140,TT142198310-198802

BLACK,BLACK,TRIM2#

main46217-10020-14iAT140,CT140,147,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX198201-198712

BLUE,BLUE,TRIM8#

main46217-10020-36iAT140,CT140,147,RT141,ST140,TT14#..DLX,EXA,EXS,GT,GX,GXA,SX198201-198712

SADDLE BROWN,BROWN,TRIM4#

main46217-12020-01iCT141198802-199111

BLACK,BLACK,TRIM2#

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10745iYT140..3FC,5F198209-199804

46241BOOT, PARKING BRAKE LEVER

main46241-20060iAT140,CT140,TT147..STD198307-198508

main46241-24010iAT140,CT147,KT147,ST140..DLX,GX198508-198712

46249SHIELD, PARKING BRAKE HOLE

main46249-24010iAT14#,CT14#,KT147,RT141,ST140,TT14#198201-199111

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-12010iAT14#,CT14#,KT147,RT141,ST140,TT14#198201-199111

main46341-14010iYT140..4H198209-199804

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-20190iYT140..4H198209-199804

main46410-24010iAT14#,CT14#,KT147,RT141,ST140,TT14#198201-199111

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-14170iAT140,CT140,141,ST140198201-199111

main46420-14190iAT141,RT141,TT142..GT,GTT198201-198508

main46420-14210iTT142..SX198201-198310

main46420-14230iCT147,KT147,TT147198201-198712

main46420-20100iYT140..4H198209-199804

main46420-20110iYT140..3FC,5F198209-199804

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90461-12121×2iAT140,CT140,141,ST140198201-199111

main90461-12965×2iCT147,KT147,TT147198201-198712

main90461-14013×2iAT141,RT141,TT142198201-198508

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-14210iAT140,CT140,141,ST140198201-199111

main46430-14230iAT141,RT141,TT142..GT,GTT198201-198508

main46430-14250iTT142..SX198201-198310

main46430-14270iCT147,KT147,TT147198201-198712

main46430-20170iYT140..4H198209-199804

main46430-20180iYT140..3FC,5F198209-199804

46458RETAINER, CABLE

main46458-20020×2iAT14#,CT140,141,RT141,ST140,TT142,YT140198201-199804

9011906197

main90119-06197

9011908146

main90119-08146

9017006004

main90170-06004

9017906058

main90179-06058

9046806017

main90468-06017

9165640616

main91656-40616

9418040600

main94180-40600

18 parts on this diagram · 3 diagrams in section
