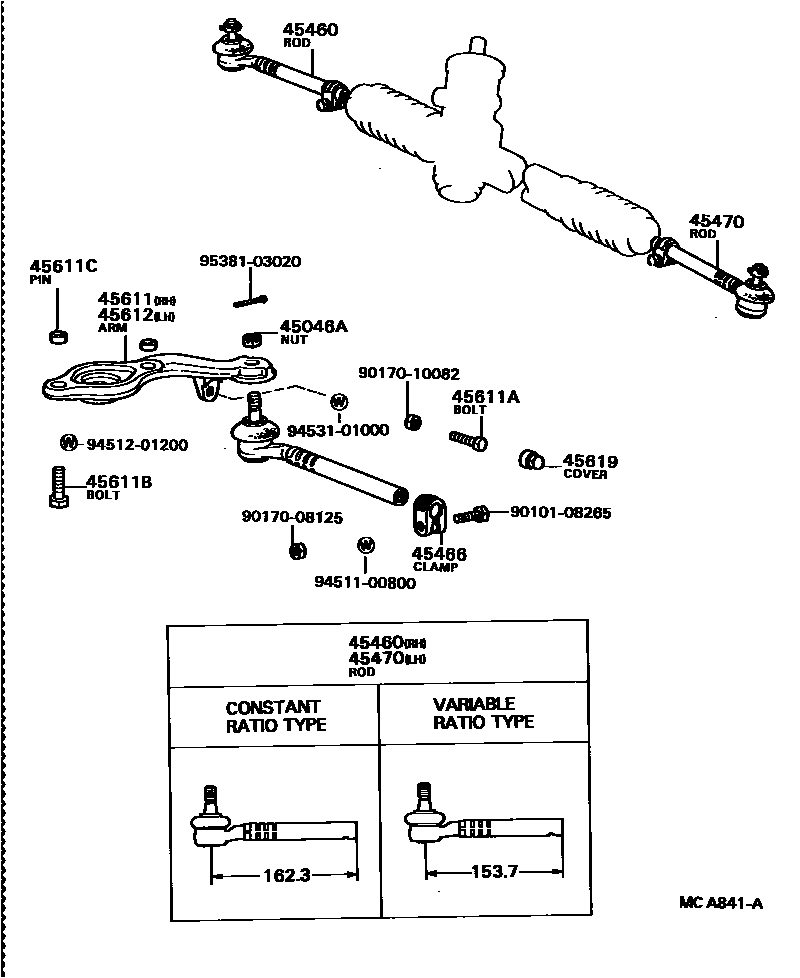

FRONT STEERING GEAR & LINK

0001 1 0002 1MANUAL STEERING 0004 1MANUAL STEERING 0006 1POWER STEERING 0007 1POWER STEERING 0008 1POWER STEERING 0009 1POWER STEERING 0010 1POWER STEERING 0011 1 0012 1MANUAL STEERING 0014 1MANUAL STEERING 0016 1POWER STEERING 0018 1POWER STEERING

45046END SUB-ASSY, TIE ROD, RH

main45046-29075iCT140,141,KT147,TT147,YT140; CT147198201-199804

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iCT140,141,KT147,TT14#,YT140; CT147198201-199804

45460ROD ASSY, TIE, RH

main45460-19155iAT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX198201-198712

W/POWER STEERING

main45460-19165iAT141198310-198508

CONSTANT RATIO STEERING GEAR

main45460-19175iCT140,141,KT147,TT147,YT140; CT147198201-199804

main45460-29225iAT140198310-198710

VARIABLE RATIO STEERING GEAR

45466CLAMP, TIE ROD END

main45466-22010×4iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

45470ROD ASSY, TIE, LH

main45460-19155iAT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX198201-198712

W/POWER STEERING

main45460-19165iAT140,ST140..DLX,GX,STD198201-198310

CONSTANT RATIO STEERING GEAR

main45460-29225iAT140198310-198712

VARIABLE RATIO STEERING GEAR

main45470-19025iCT140,141,KT147,TT147,YT140; CT147198201-199804

45611ARM, STEERING KNUCKLE, RH

main45611-14030iAT140,CT140,ST140..EXA,EXS,GX,GXA198201-198712

W/POWER STEERING

main45611-14040iAT140,ST140..DLX,GX,STD198201-198310

main45611-14060iCT14#,KT147,TT147,YT140198201-199804

main45611-14070iAT141,RT141,TT142198201-198508

W/POWER STEERING

main45611-14080iAT141198310-198508

main45611-14090iTT142198201-198508

45611ABOLT, KNUCKLE STOPPER

main90106-10002×2iAT140,CT140,ST140..EXS,GX198201-198712

L=31

main90106-10032×2iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

L=34

45611BBOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER)

main90101-12295×4iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

L=35

main90101-12379×4iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

L=39

main90101-12491×4iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

L=42

45611CPIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER)

main90253-15016×4iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

45612ARM, STEERING KNUCKLE, LH

main45612-14030iAT140,CT140,ST140..EXA,EXS,GX,GXA198201-198712

W/POWER STEERING

main45612-14040iAT140,ST140..DLX,GX,STD198201-198310

main45612-14060iCT14#,KT147,TT147,YT140198201-199804

main45612-14070iAT141,RT141,TT142198201-198508

W/POWER STEERING

main45612-14080iAT141198310-198508

main45612-14090iTT142198201-198508

45619COVER, KNUCKLE STOPPER

main45619-14020×2iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

9010108265

main90101-08265

9017008125

main90170-08125

9017010082

main90170-10082

9451100800

main94511-00800

9451201200

main94512-01200

9453101000

main94531-01000

9538103020

main95381-03020

18 parts on this diagram · 13 diagrams in section
