DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

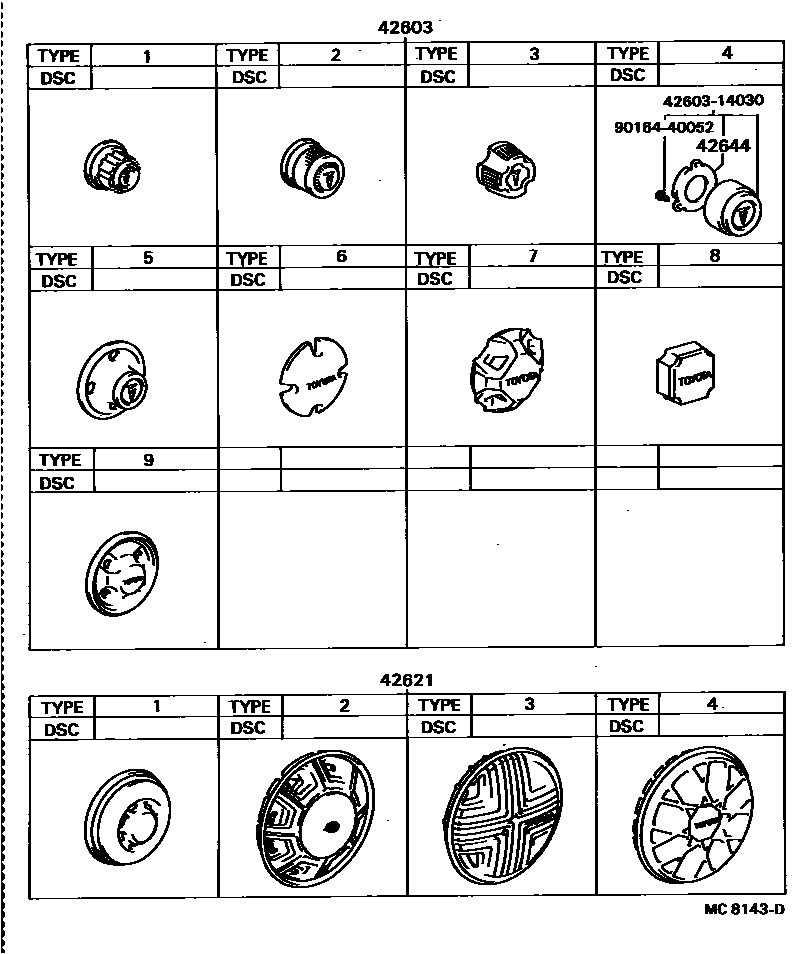

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12070×4iAT140..STD;CT147,KT147,TT147198201-198712

TYPE 1

main42603-12110×4iST140..HT..GX198201-198508

TYPE 5

main42603-12120×4iST140..HT198310-198508

W/ALUMI WHEEL,TYPE 6

main42603-12130×4iAT140..DLX,GX198201-198712

TYPE 2

main42603-14030×4iST140..EXA,GXA198201-198209

W/WHEEL CAP RING,TYPE 4

main42603-14150×4iAT141,RT141,TT142..GT,GTT198201-198508

W/WHEEL CAP RING,TYPE 3

main42603-14160×4iRT141,TT142198201-198307

W/ALUMI WHEEL,TYPE 7

main42603-14161×4iAT141,TT142198307-198508

W/ALUMI WHEEL,TYPE 7

main42603-14170×4iAT141,TT142198310-198508

W/6JJ-15 ALUMI WHEEL,TYPE 8

main42603-20070×4iTT142198201-198310

W/165SR14 TIRE,TYPE 9

42621CAP, WHEEL

main42602-20050×4iCT140,ST140..EXA,EXS198201-198310

TYPE 3

main42602-20060×4iST140..EXS198310-198508

TYPE 4

main42621-20200×4iAT140,CT140,ST140..SED..(GX,GXA)198201-198310

TYPE 2

main42621-22010×4iCT140,141..STD; YT140198201-199303

TYPE 1

main42621-22011×4iYT140199303-199804

TYPE 1

42644HOLDER, WHEEL HUB ORNAMENT

main42644-14041×4iST140..EXA,GXA198201-198209

4260314030ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14030

9016440052

main90164-40052

5 parts on this diagram · 3 diagrams in section
