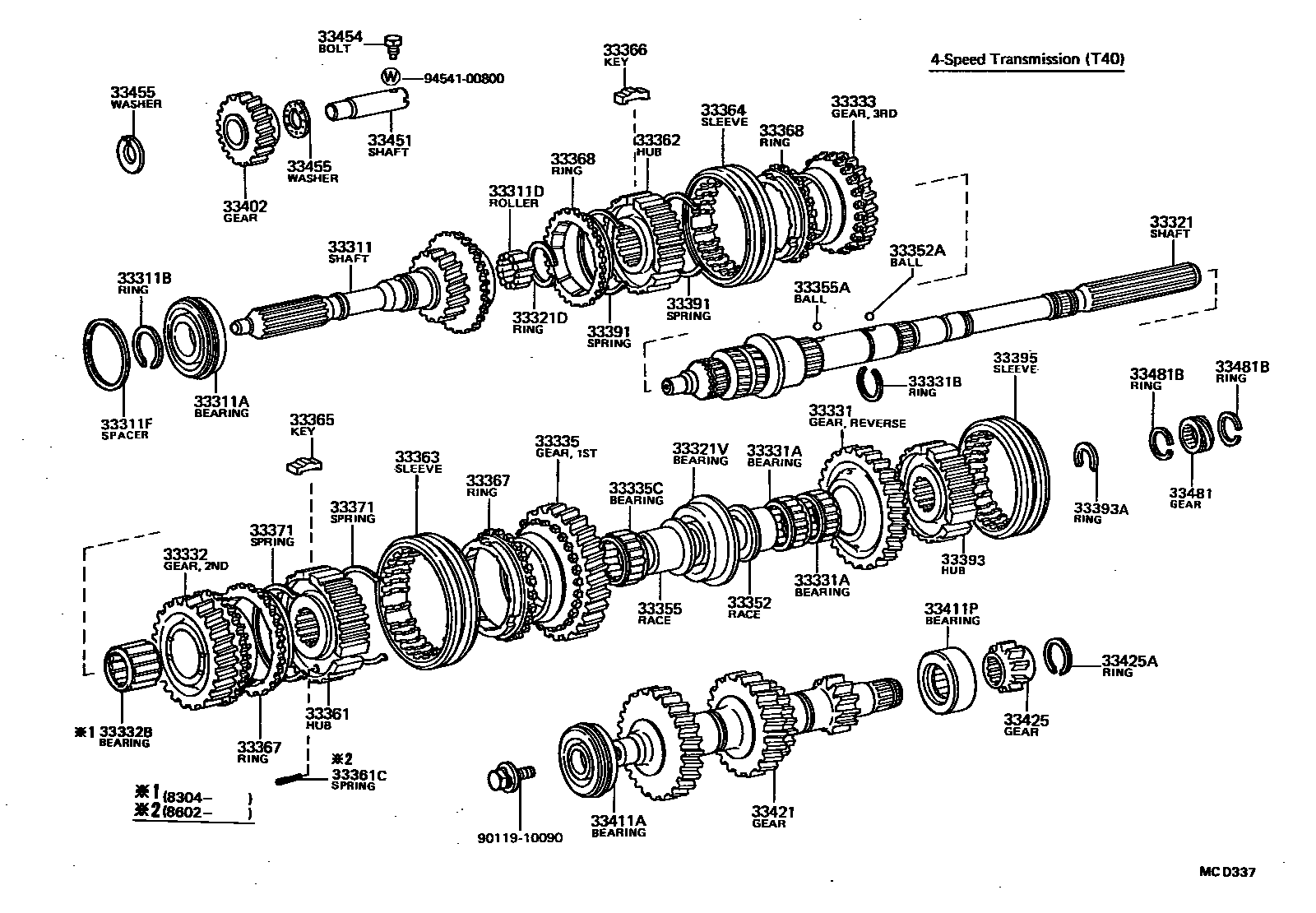

TRANSMISSION GEAR (MTM)

0001 1 0002 1 0005 1 0008 1 0009 1 0010 1

33311SHAFT, INPUT

main33301-12010iAT14#,KT147,ST140..MTM198310-198712

main33301-14010iAT140,ST140,TT14#..MTM..(DLX,EXS,GX,GXA,STD,SX)198201-198304

main33301-22020iRT141198201-198208

main33301-22021iRT141,TT142,YT140..5F..(DLX,GT,GTT,STD)198208-198307

main33301-22022iTT142,YT140..5F..(DLX,GTT,STD)198307-198402

main33301-22024iCT14#,YT140..5F198508-199110

main33301-30041iCT14#..5F198201-198508

main33301-30050iYT140..4H198209-198401

main33301-30060iYT140..4H198401-198601

main33301-30061iYT140..4H198601-199804

main33301-30080iYT140..5F199110-199804

33311ABEARING (FOR INPUT SHAFT FRONT)

main90363-30028iAT140,ST140,TT14#..MTM..(DLX,EXS,GX,GXA,STD,SX)198201-198304

main90363-30040iAT140,KT147,ST140,TT147..4F198305-198712

main90363-32005iCT14#..5F198201-198508

main90363-32008iYT140..4H198209-198401

OD=75

main90363-32024iYT140..4H199012-199804

main90363-32026iYT140..4H198401-199012

OD=80

main90363-35007iCT141199110-199111

main90363-35033iYT140..5F199110-199804

main90365-30020iAT14#,ST140,TT142..5F..(EXS,GT,GX,GXA,SX)198305-198712

33311BRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-28067iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

T=2.35-2.40

main90520-28068iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

T=2.45-2.50

main90520-28205iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main90520-28206iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

T=2.50-2.55

main90520-28207iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main90520-30214iCT14#..5F198201-198508

main90520-30215iYT140..4H198209-199804

main90520-30216iYT140..4H198209-199804

main90520-30217iYT140..4H198209-199804

main90520-30218iCT14#..5F198201-198508

main90520-30219iYT140..4H198209-199804

main90520-33107iRT141,TT142,YT140..5F..(DLX,GT,GTT,STD)198201-198508

main90520-33132iRT141,TT142,YT140..5F..(DLX,GT,GTT,STD)198201-198508

main90520-33168iRT141,TT142,YT140..5F..(DLX,GT,GTT,STD)198201-198508

main90520-33169iCT14#,YT140..5F198508-199804

main90520-33170iCT14#,YT140..5F198508-199804

main90520-33171iRT141,TT142,YT140..5F..(DLX,GT,GTT,STD)198201-198508

main90520-33172iRT141,TT142,YT140..5F..(DLX,GT,GTT,STD)198201-198508

33311DBEARING, INPUT SHAFT

main90361-06002×13iYT140..4H198401-199804

main90361-06047×14iYT140..4H198209-198401

main90364-19043iCT14#,RT141,TT142,YT140..5F..(DLX,EXS,GT,GTT,GX,STD)198201-199208

33311FSPACER (FOR INPUT SHAFT)

main90560-61001iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

T=1.825-1.875

main90560-61002iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

T=1.935-1.985

main90560-61003iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

T=2.045-2.095

main90560-61004iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

T=2.155-2.205

main90560-61005iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

T=2.265-2.315

main90560-61006iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

T=2.375-2.425

33321SHAFT, OUTPUT

main33321-12100iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198304-198712

main33321-14030iAT140,ST140,TT147..4F198201-198204

main33321-14031iAT140,ST140,TT147..4F198204-198206

main33321-14040iAT140,ST140,TT142..5F198201-198204

main33321-14041iAT140,ST140,TT142..5F198204-198206

main33321-20071iCT14#..5F198201-198508

main33321-22050iCT141199110-199111

main33321-30111iYT140..4H198209-198401

main33321-30112iYT140..4H198401-199804

main33321-30120iYT140..5F199110-199804

33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)

main90520-28012iCT141,YT140..MTM198803-199804

main90520-28014iRT141,TT142,YT140..5F..(DLX,GT,GTT,STD)198201-198508

main90520-28015iRT141,TT142,YT140..5F..(DLX,GT,GTT,STD)198201-198508

main90520-28016iRT141,TT142,YT140..5F..(DLX,GT,GTT,STD)198201-198508

main90520-28017iCT14#,YT140..MTM198508-199804

main90520-28018iRT141,TT142,YT140..5F..(DLX,GT,GTT,STD)198201-198508

main90520-28245iRT141,TT142,YT140..5F..(DLX,GT,GTT,STD)198201-198508

main90520-30200iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main90520-30201iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main90520-30202iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main90520-30203iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main90520-30204iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main90520-30214iCT14#..5F198201-198508

main90520-30215iCT14#..5F198201-198508

main90520-30216iCT14#..5F198201-198508

main90520-30217iCT14#..5F198201-198508

main90520-30218iCT14#..5F198201-198508

main90520-30238iCT14#..5F198201-198508

T=2.00-2.05

33321VBEARING (FOR OUTPUT SHAFT CENTER)

main90363-32005iCT14#..5F198201-198508

main90363-35009iCT14#,YT140..5F198508-199110

main90363-35036iYT140..5F199110-199804

main90369-30027iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

33331GEAR, REVERSE

main33031-30020iYT140..4H198209-199312

main33031-30030iYT140..4H199312-199804

main33331-14011iAT140,ST140,TT14#..MTM198201-198204

main33331-14013iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198204-198712

main33331-20031iCT14#..5F198201-198508

main33331-22021iRT141,TT142,YT140..5F..(DLX,GT,GTT,STD)198201-198304

main33331-22030iTT142,YT140..5F..(DLX,GTT,STD)198304-198508

main33331-30060iYT140..5F199110-199401

33331ABEARING (FOR REVERSE GEAR)

main90364-37002×2iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198204-198712

main90364-37061iAT140,ST140,TT14#..MTM198201-198204

main90364-38034iYT140..4H198209-199804

33331BRING, SET (FOR REVERSE GEAR)

main90520-27003iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198204-198712

T=2.70-2.75

main90520-27004iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198204-198712

T=2.75-2.80

main90520-27005iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198204-198712

T=2.80-2.85

main90520-27006iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198204-198712

T=2.85-2.90

main90520-27007iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198204-198712

T=2.90-2.95

main90520-27008iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198204-198712

T=2.95-3.00

main90520-27009iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198204-198712

T=3.00-3.05

main90520-27010iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198204-198712

T=3.05-3.10

main90520-27011iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198204-198712

T=3.10-3.15

main90520-27012iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198204-198712

T=3.15-3.20

33332GEAR, 2ND

main33033-12020iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198304-198602

main33033-12030iAT140,KT147,ST140..MTM198602-198712

main33033-14060iAT140,ST140,TT14#..MTM198201-198209

main33033-14061iAT140,ST140,TT14#..MTM..(DLX,EXS,GX,GXA,STD,SX)198209-198304

main33033-20050iCT14#..5F198201-198508

main33033-22020iRT141,TT142,YT140..5F..(DLX,GT,GTT,STD)198201-198307

main33033-22021iTT142,YT140..5F..(DLX,GTT,STD)198307-198508

main33033-30020iYT140..4H198209-198601

main33033-30021iYT140..4H198601-199804

main33033-35080iYT140..5F199110-199804

33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)

main90364-35005iYT140..4H198209-199804

main90364-37004iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198304-198712

main90364-43004iCT141199110-199111

main90364-43006iYT140..5F199110-199804

33333GEAR, 3RD

main33034-12040iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198304-198712

main33034-14030iAT140,ST140,TT14#..MTM..(DLX,EXS,GX,GXA,STD,SX)198201-198304

main33034-20020iCT14#..5F198201-198508

main33034-22020iRT141,TT142,YT140..5F..(DLX,GT,GTT,STD)198201-198307

main33034-22021iCT14#,YT140..5F198508-199110

main33034-35070iYT140..5F199110-199804

33335GEAR, 1ST

main33032-14011iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198602

main33032-14070iAT140,KT147,ST140..MTM198602-198712

main33032-20030iCT14#..5F198201-198508

main33032-22020iRT141,TT142,YT140..5F..(DLX,GT,GTT,STD)198201-198307

main33032-22021iCT141199110-199111

main33032-22030iCT140,147198508-198712

main33032-30020iYT140..4H198209-198807

main33032-30021iYT140..4H198807-199804

main33032-30030iYT140..5F199110-199804

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90364-37004iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198304-198712

main90364-37041iAT140,ST140,TT14#..MTM..(DLX,EXS,GX,GXA,STD,SX)198201-198304

main90364-38002iYT140..4H198209-199804

main90364-43004iTT142,YT140..5F..(DLX,GTT,STD)198307-199110

main90364-43006iYT140..5F199110-199804

main90364-43042iCT14#..5F198201-198301

33352RACE, REVERSE GEAR BEARING INNER

main33344-14010iAT140,ST140,TT14#..MTM198201-198204

main33344-14012iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198204-198712

33352AKEY OR BALL, REVERSE GEAR BEARING INNER RACE LOCK

main90360-05012iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

33355RACE, 1ST GEAR BEARING INNER

main33345-14011iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main33355-31010iCT14#..5F198201-198508

33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK

main90360-05012iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main90360-06004iCT14#..5F198201-198508

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-14010iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198602

main33361-14012iAT140,KT147,ST140..MTM198602-198712

main33361-20030iCT14#..5F198201-198508

main33361-22020iCT14#,YT140..5F198508-199110

main33361-30030iYT140..5F199110-199804

main33361-35020iYT140..4H198209-199804

33361CSPRING COMPRESSION (FOR CLUTCH HUB)

main90501-05773×3iAT140,KT147,ST140..MTM198602-198712

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-14010iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main33362-22020iRT141,TT142,YT140..5F..(DLX,GT,GTT,STD)198201-198508

main33362-30040iYT140..4H198209-199804

main33362-30050iYT140..5F199110-199804

main33362-31011iCT14#..5F198201-198508

33363SLEEVE, TRANSMISSION HUB, NO.1

main33363-14012iAT140,ST140,TT14#..MTM198201-198209

main33363-14013iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198209-198712

main33363-20030iCT14#..5F198201-198508

main33363-22020iRT141,TT142,YT140..5F..(DLX,GT,GTT,STD)198201-198307

main33363-22021iCT14#,YT140..5F198508-199110

main33363-35030iYT140..5F199110-199804

main33364-30020iYT140..4H198209-198601

main33364-30021iYT140..4H198601-198906

main33364-30022iYT140..4H198906-199804

33364SLEEVE, TRANSMISSION HUB, NO.2

main33364-14010iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main33364-20013iCT14#..5F198201-198508

main33364-22020iRT141,TT142,YT140..5F..(DLX,GT,GTT,STD)198201-198307

main33364-22021iTT142,YT140..5F..(DLX,GTT,STD)198307-198508

main33364-30020iYT140..4H198209-198601

main33364-30021iYT140..4H198601-198906

main33364-30022iYT140..4H198906-199804

main33364-35040iYT140..5F199110-199804

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-14011×3iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main33365-30050×3iYT140..4H198209-199804

main33365-30060×3iYT140..5F199110-199804

main33366-20011×3iCT141199110-199111

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33365-30060×3iYT140..5F199110-199804

main33366-14010×3iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main33366-20011×3iCT14#,RT141,TT142,YT140..5F..(DLX,EXS,GT,GTT,GX,STD)198201-199110

main33366-30030×3iYT140..4H198209-198601

main33366-30031×3iYT140..4H198601-199804

33367RING, SYNCHRONIZER, NO.1

main33367-22020×2iRT141,TT142,YT140..5F..(DLX,GT,GTT,STD)198201-198307

main33367-22021×2iCT14#,YT140..5F198508-199110

main33367-30040iYT140..4H198209-199804

1ST GEAR SIDE

main33367-30060iYT140..5F199110-199804

1ST GEAR SIDE

main33367-35020iYT140..5F199110-199804

2ND GEAR SIDE

main33368-12030×2iAT140,KT147,ST140..MTM198602-198712

main33368-20012×2iAT14#,CT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198508

main33369-30020iYT140..4H198209-199804

REVERSE

33368RING, SYNCHRONIZER, NO.2

main33367-14010×2iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main33368-20012×2iCT14#..5F198308-198508

main33368-20013×2iCT14#,YT140..5F198508-199110

main33368-30120×2iYT140..5F199110-199804

main33368-30140×2iYT140..4H199209-199804

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-12030×2iAT140,KT147,ST140..MTM198602-198712

main33371-14031×2iAT140,KT147,ST140..MTM198508-198602

main33371-22030×2iRT141,TT142,YT140..5F..(DLX,GT,GTT,STD)198201-198307

main33371-22033×2iTT142,YT140..5F..(DLX,GTT,STD)198307-198508

main33391-22020×2iYT140..4H198401-199804

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33371-14010×2iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main33371-14031×2iCT14#,RT141,TT142,YT140..MTM..(DLX,EXS,GT,GTT,GX,STD)198201-198307

main33391-22020×2iYT140..4H198401-199804

main33391-22030×2iTT142,YT140..5F..(DLX,GTT,STD)198307-198508

33393HUB, TRANSMISSION CLUTCH, NO.3

main33393-14020iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main33393-22020iCT14#,YT140..5F198508-199110

main33393-30020iCT14#..5F198201-198508

main33393-30040iYT140..5F199110-199804

33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)

main90520-24002iCT14#,YT140..5F198508-199804

main90520-24003iRT141,TT142,YT140..5F..(DLX,GT,GTT,STD)198201-198508

main90520-24004iCT14#,YT140..5F198508-199804

main90520-24005iRT141,TT142,YT140..5F..(DLX,GT,GTT,STD)198201-198508

main90520-24009iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main90520-24010iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main90520-24011iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main90520-24012iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main90520-24013iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main90520-24014iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main90520-24015iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main90520-24016iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main90520-24017iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main90520-24018iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main90520-24019iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main90520-24020iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main90520-24021iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main90520-24022iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main90520-24023iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

33395SLEEVE, TRANSMISSION HUB, NO.3

main33395-14013iYT140..4H198209-199804

main33395-22010iRT141,TT142,YT140..5F..(DLX,GT,GTT,STD)198201-198307

main33395-22011iCT141199110-199111

main33395-30020iYT140..5F199110-199804

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-14011iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main33402-22022iRT141,TT142,YT140..5F..(DLX,GT,GTT,STD)198201-198508

main33402-22023iCT141198612-199111

main33402-30030iYT140..5F199110-199401

main33402-30031iYT140..5F199401-199804

main33461-30030iYT140..4H198209-199303

main33461-30031iYT140..4H199303-199804

33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)

main90363-20033iAT140,KT147..4F198408-198712

RADIAL BALL BEARING

main90365-20004iAT14#,ST140..MTM198408-198712

CYLINDRICAL ROLLER BEARING

main90365-25002iCT14#..5F198201-198508

main90365-25010iYT140..4H198209-198808

main90365-25014iRT141,TT142,YT140..5F..(DLX,GT,GTT,STD)198201-198508

main90365-25025iYT140..4H198808-199804

33411PBEARING, COUNTERSHAFT CENTER

main33430-22010iRT141,TT142,YT140..5F..(DLX,GT,GTT,STD)198201-198508

main33430-30010iYT140..5F199110-199804

main90365-28015iCT14#..5F198201-198508

main90365-30015iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main90365-31002iYT140..4H198209-199804

33421GEAR, COUNTER

main33421-14070iAT140,KT147,ST140,TT147..4F198201-198712

main33421-14080iAT140,ST140,TT142..5F..(EXS,GX,GXA,SX)198201-198310

main33421-20060iCT14#..5F198201-198508

main33421-22020iRT141,TT142,YT140..5F..(DLX,GT,GTT,STD)198201-198402

main33421-22021iCT141,TT142,YT140..5F198402-199110

main33421-30090iYT140..4H198209-198308

main33421-30120iYT140..4H198308-198401

main33421-30130iYT140..4H198401-198807

main33421-30131iYT140..4H198807-199804

main33421-30150iYT140..5F199110-199401

main33421-30151iYT140..5F199401-199804

33425GEAR, COUNTERSHAFT REVERSE

main33425-14010iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

33425ARING, SHAFT SNAP (FOR COUNTER GEAR)

main90520-21198iAT140,KT147,ST140,TT147..4F198201-198712

T=1.90-1.95

main90520-21199iAT140,KT147,ST140,TT147..4F198201-198712

T=1.80-1.85

33451SHAFT, REVERSE IDLER GEAR

main33450-30010iYT140..4H199303-199804

main33451-14010iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main33451-14020iCT14#..5F198201-198508

main33451-22021iRT141,TT142,YT140..5F..(DLX,GT,GTT,STD)198201-198508

main33451-30040iYT140..4H198209-199303

main33451-30060iYT140..5F199110-199804

33454BOLT, SHAFT RETAINING

main33454-12010iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

33455WASHER, REVERSE IDLER GEAR THRUST

main33455-14010×2iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-14040iAT140,TT14#..MTM..(DLX,GX,STD,SX)198201-198310

main33481-14050iST140..MTM198201-198310

main33481-22010iYT140..4H198209-199804

main33481-22030iRT141,TT142,YT140..5F..(DLX,GT,GTT,STD)198201-198508

main33481-30040iCT147198201-198508

33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)

main90520-23025×2iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main90520-26179×2iCT14#..5F198201-198508

9011910090

main90119-10090

9454100800

main94541-00800

47 parts on this diagram · 6 diagrams in section
