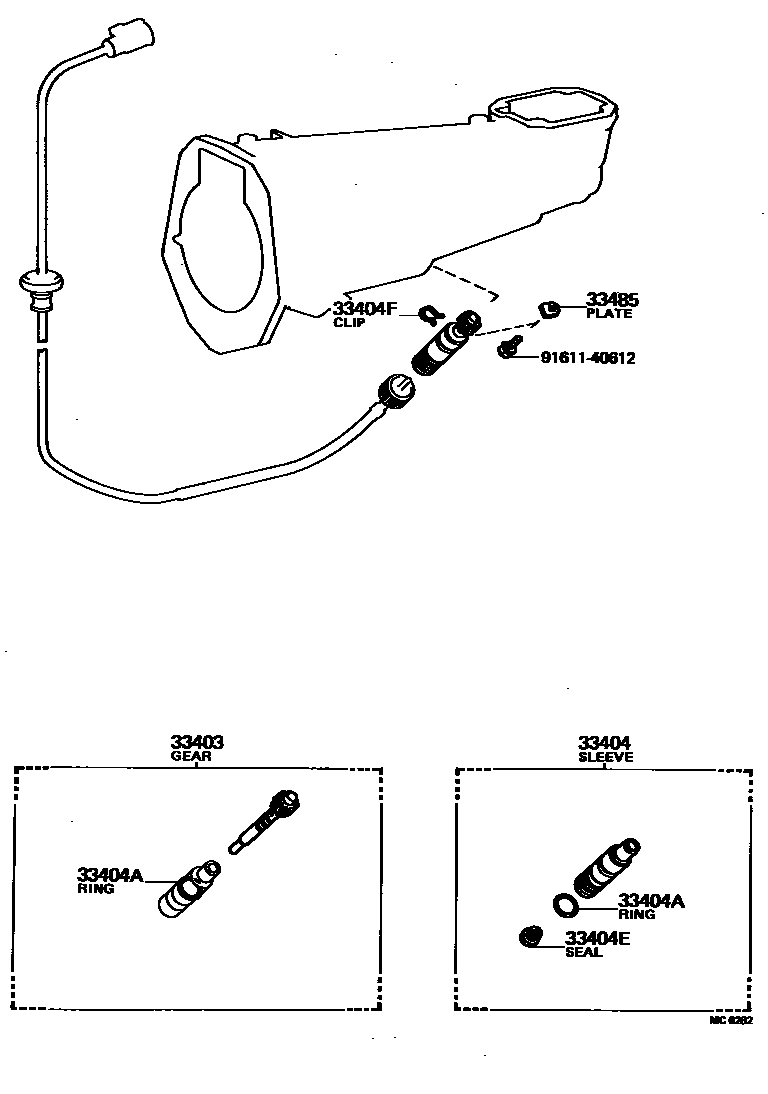

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1 0004 1

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19155iAT140,TT147..4F; TT142..5F..SX198201-198310

main33403-19165iAT141; KT147..4F198310-198508

N=21; N=21,W/165SR13-6 TIRE

main33403-19185iAT140,KT147..4F198508-198712

main33403-19195iST140..SED..MTM..(GX,GXA)198201-198712

main33403-29125iYT140..5F198209-198508

main33403-29135iCT14#198508-199111

main33403-29145iYT140..5F198508-199804

main33482-39025iYT140..4H198209-199804

main33482-39035iCT147198201-198508

main33482-39045iCT14#..5F198201-198508

main33482-39135iYT140..4H198209-199804

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-16010iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main33404-22010iRT141,TT142,YT140..5F..(DLX,GT,GTT,STD)198201-198508

main33404-35010iYT140..4H198209-199804

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iYT140..4H198209-199804

main96710-02018iAT140,ST140,TT14#..MTM198201-198209

main96711-24018iAT140,KT147,ST140,TT14#..MTM..(DLX,EXS,GX,GXA,STD,SX)198209-198712

main96711-24030iCT14#,YT140..5F198508-199804

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM198201-199804

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM198201-199804

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-14010iAT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198712

main33485-30020iCT14#,RT141,TT142,YT140..MTM..(DLX,EXS,GT,GTT,GX,STD)198201-199804

9161140612

main91611-40612

7 parts on this diagram · 2 diagrams in section
