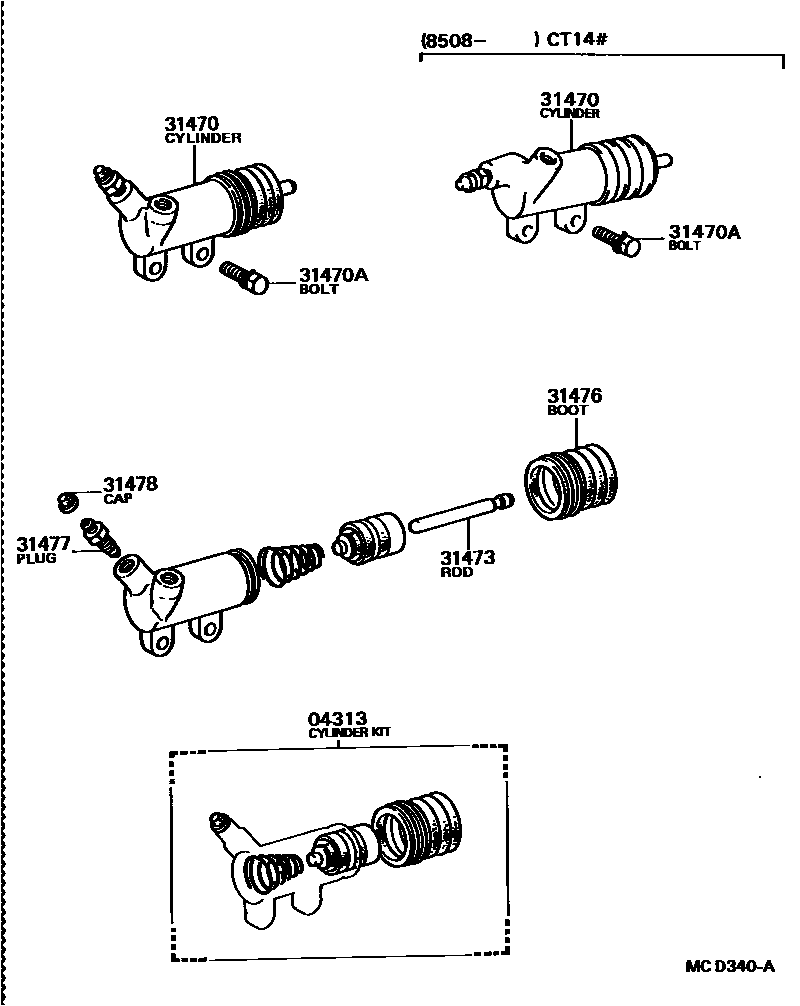

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iYT140..MTM198805-199103

main04313-17010iYT140..MTM199103-199804

main04313-22020iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM198201-198805

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12050iAT141198310-198508

main31470-12080iCT14#198508-199111

main31470-14021iRT141,TT142,YT140..MTM..(DLX,GT,GTT,STD)198201-198805

main31470-14040iAT140,CT14#,ST140..MTM198201-198508

main31470-20151iKT147,TT14#..MTM..(DLX,GX,STD,SX)198201-198712

main31470-20190iYT140..MTM198805-199103

main31470-20191iYT140..MTM199103-199804

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825×2iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM198201-199804

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iAT14#,CT14#,KT147,ST140,TT14#..MTM..(DLX,EXS,GT,GX,GXA,STD,SX)198201-198508

main31473-22010iCT14#,YT140..MTM198508-199103

main31473-22030iYT140..MTM199110-199804

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM198201-199804

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM198201-199804

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM198201-199804

7 parts on this diagram · 2 diagrams in section
