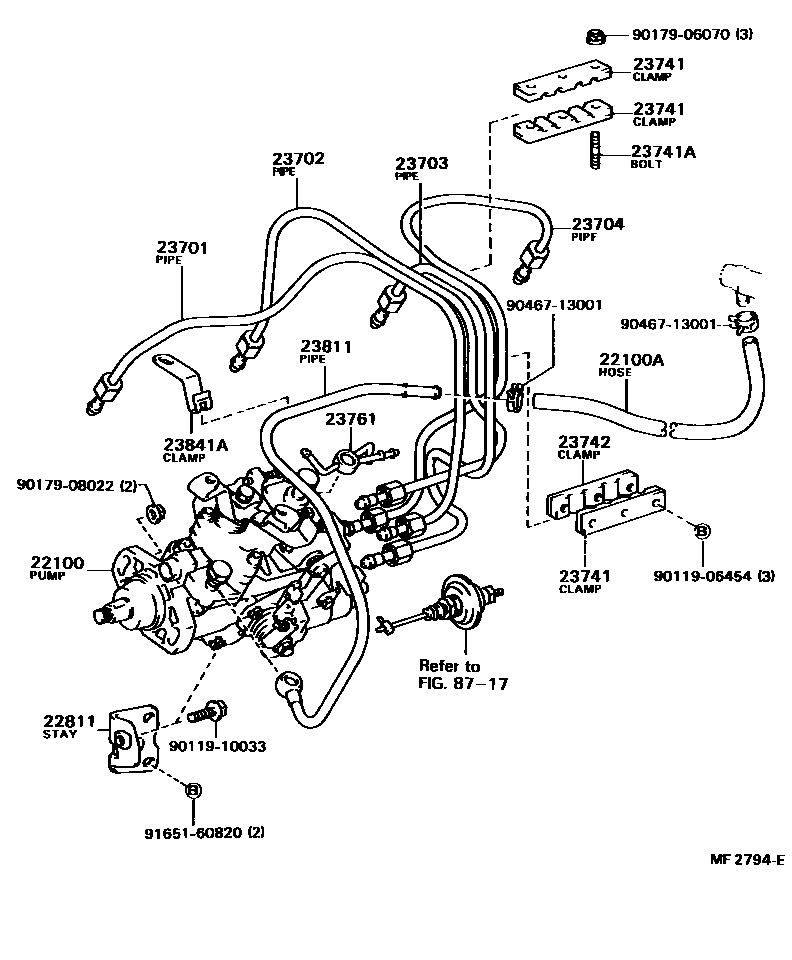

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-64010i1C..CT14#..5F..(DLX,GX,STD)198201-198310

sub22100-64020

main22100-64020i1C..CT140..5F..EXS198201-198310

main22100-64030i1C..CT14#..5F..(DLX,GX,STD)198201-198310

COLD SPEC

sub22100-64020

sub88031-12120

main22100-64040i1C..CT140..5F..EXS198201-198310

COLD SPEC

sub22100-64020

sub88031-12120

main22100-64050i1C..CT140..4FC..GX198201-198310

sub22100-64060

main22100-64060i1C..CT140..4FC..EXS198201-198310

main22100-64070i1C..CT140..4FC..GX198201-198310

COLD SPEC

sub22100-64060

sub88031-12120

main22100-64080i1C..CT140..4FC..EXS198201-198310

COLD SPEC

sub22100-64060

sub88031-12120

main22100-64230i1C..CT14#198310-198508

sub22100-64280

main22100-64240i1C..CT14#198310-198501

COLD SPEC

sub22100-64230

sub88031-30070

main22100-64820i1C..CT140,147198508-198712

main22100-6A290i2C..CT141198612-199111

main22100-6A300i2C..CT141198612-199111

COLD SPEC

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main95332-08030i1C,2C..CT14#198201-198702

sub95333-08030

main95333-08030i1C,2C..CT14#198702-199111

22811STAY, INJECTION PUMP, NO.1

main22811-64010i1C,2C..CT14#198201-199111

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-64010i1C,2C..CT14#198201-199111

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-64020i1C,2C..CT14#198201-199111

sub23702-64010

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-64010i1C,2C..CT14#198201-199111

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-64020i1C,2C..CT14#198201-199111

sub23704-64010

23741CLAMP, INJECTION PIPE, NO.1

main23741-64010i1C,2C..CT14#198201-199111

sub23741-64011

23741ABOLT, STUD(FOR INJECTION PIPE CLAMP)

main92122-60622i1C,2C..CT14#198201-199111

23742CLAMP, INJECTION PIPE, NO.2

main23742-64010i1C,2C..CT14#198201-199111

23761PIPE, NOZZLE LEAKAGE, NO.1

main23764-64011i1C,2C..CT14#198201-199111

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-64011i1C,2C..CT14#198201-199102

sub23811-64012

main23811-64012i2C..CT141199102-199111

23841ACLAMP, FUEL PIPE, NO.1(FOR INJECTION PUMP)

main90929-01018i1C,2C..CT14#198201-199111

8717

9011906454

main90119-06454

9011910033

main90119-10033

9017906070

main90179-06070

9017908022

main90179-08022

9046713001

main90467-13001

9165160820

main91651-60820

20 parts on this diagram · 1 diagram in section
