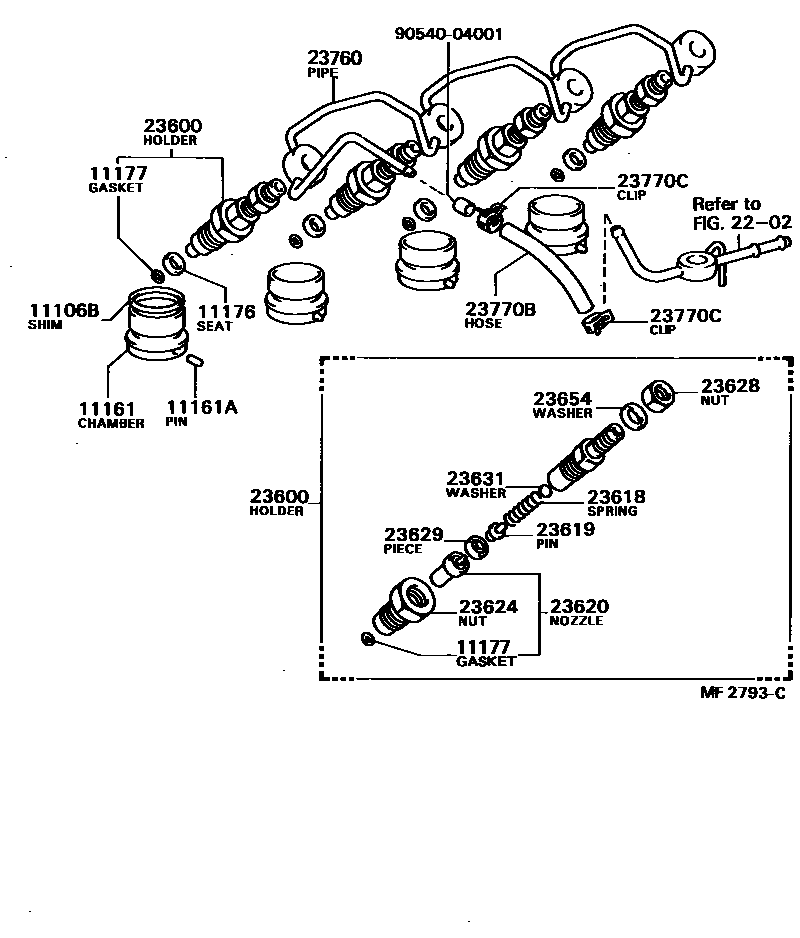

INJECTION NOZZLE

11106BSHIM(FOR COMBUSTION CHAMBER)

main11165-64010i1C,2C..CT14#198201-199111

sub11165-64011

main11166-64010i1C,2C..CT14#198201-199111

sub11166-64011

11161CHAMBER, COMBUSTION

main11161-64010i1C..CT14#198201-198508

main11161-64040i1C..CT140,147198508-198712

main11161-64080i2C..CT141198612-199111

11161APIN, STRAIGHT(FOR COMBUSTION CHAMBER)

main90250-02046i1C,2C..CT14#198201-199111

11176SEAT, INJECTION NOZZLE

main11176-64010i1C,2C..CT14#198201-199111

11177GASKET, INJECTION NOZZLE SEAT

main11177-64010i1C,2C..CT14#198201-199111

2202

23600HOLDER & NOZZLE SET, NOZZLE

main23600-69015i1C..CT14#198201-198508

main23600-69045i1C..CT140,147198508-198712

main23600-69055i2C..CT141198612-199111

23618SPRING, NOZZLE HOLDER PRESSURE

main23618-64010i1C,2C..CT14#198508-198705

main23618-64020i1C,2C..CT14#198201-199111

23619PIN, NOZZLE HOLDER PRESSURE

main23619-64010i1C,2C..CT14#198201-199111

23620NOZZLE ASSY

main23620-69015i1C..CT14#198201-198508

main23620-69035i1C..CT140,147198508-198712

main23620-69045i2C..CT141198612-199111

23624NUT, NOZZLE RETAINING

main23624-64010i1C..CT14#198201-198508

sub23624-55010

main23624-64040i1C,2C..CT14#198508-199111

sub23624-64041

23628NUT(FOR RING PACKING SETTING)

main23628-64010i1C,2C..CT14#198201-199111

23629PIECE, DISTANCE(FOR NOZZLE)

main23629-64010i1C,2C..CT14#198201-199111

23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)

main23631-64010i1C,2C..CT14#198201-199111

main23631-64011i1C,2C..CT14#198201-199111

main23631-64012i1C,2C..CT14#198201-199111

main23631-64013i1C,2C..CT14#198201-199111

main23631-64014i1C,2C..CT14#198201-199111

main23631-64015i1C,2C..CT14#198201-199111

main23631-64016i1C,2C..CT14#198201-199111

main23631-64017i1C,2C..CT14#198201-199111

main23631-64018i1C,2C..CT14#198201-199111

main23631-64019i1C,2C..CT14#198201-199111

main23632-64010i1C,2C..CT14#198201-199111

main23632-64011i1C,2C..CT14#198201-199111

main23632-64012i1C,2C..CT14#198201-199111

main23632-64013i1C,2C..CT14#198201-199111

main23632-64014i1C,2C..CT14#198201-199111

main23632-64015i1C,2C..CT14#198201-199111

main23632-64016i1C,2C..CT14#198201-199111

main23632-64017i1C,2C..CT14#198201-199111

main23632-64018i1C,2C..CT14#198201-199111

main23632-64019i1C,2C..CT14#198201-199111

main23633-64010i1C,2C..CT14#198201-199111

main23633-64011i1C,2C..CT14#198201-199111

main23633-64012i1C,2C..CT14#198201-199111

main23633-64013i1C,2C..CT14#198201-199111

main23633-64014i1C,2C..CT14#198201-199111

main23633-64015i1C,2C..CT14#198201-199111

main23633-64016i1C,2C..CT14#198201-199111

main23633-64017i1C,2C..CT14#198201-199111

main23633-64018i1C,2C..CT14#198201-199111

main23633-64019i1C,2C..CT14#198201-199111

main23634-64010i1C,2C..CT14#198201-199111

main23634-64011i1C,2C..CT14#198201-199111

main23634-64012i1C,2C..CT14#198201-199111

main23634-64013i1C,2C..CT14#198201-199111

main23634-64014i1C,2C..CT14#198201-199111

main23634-64015i1C,2C..CT14#198201-199111

main23634-64016i1C,2C..CT14#198201-199111

main23634-64017i1C,2C..CT14#198201-199111

main23634-64018i1C,2C..CT14#198201-199111

main23634-64019i1C,2C..CT14#198201-199111

main23635-64010i1C,2C..CT14#198201-199111

main23635-64011i1C,2C..CT14#198201-199111

main23635-64012i1C,2C..CT14#198201-199111

23654WASHER(FOR RING PACKING)

main23654-64010i1C,2C..CT14#198201-199111

23760PIPE ASSY, NOZZLE LEAKAGE

main23761-64010i1C,2C..CT14#198201-199111

23770BHOSE, FUEL

main95332-04010i1C,2C..CT14#198201-198702

sub95333-04010

main95333-04010i1C,2C..CT14#198702-199111

23770CCLAMP OR CLIP(FOR FUEL HOSE SET)

main96132-30400i1C,2C..CT14#198201-199111

sub96132-51000

9054004001

main90540-04001

19 parts on this diagram · 1 diagram in section
