ALTERNATOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

27020ALTERNATOR ASSY

main27020-13170i5KJ..KT147198310-198712

main27020-15140i3AU..AT140198201-198712

main27020-34021i12TJ..TT147198201-198310

main27020-63010i1SU..ST140198201-198712

main27020-64010i1C..CT140,147..DLX,EXS,GX198201-198712

main27020-64030i1C,2C..CT140,141..STD198201-199101

main27020-64031i2C..CT141199101-199111

main27060-16010i4AGEU..AT141198310-198508

main27060-28030i3TEU..TT142..5F198201-198310

main27060-28050i3TEU..TT142..4FC198201-198310

main27060-34040i18RGEU..RT141198201-198210

main27060-35050i3TGTEU..TT142198210-198508

main27060-72020i2YPU..YT140198209-198902

main27060-72220i2YPU..YT140198902-199804

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27212-39050i5KJ..KT147198310-198712

12V 45A

main27333-57060i1C,2C..CT14#198201-199111

12V 55A

main27412-15150i3AU,1SU..AT140,ST140198604-198712

12V 55A,60A,65A

main27412-45070i12TJ,18RGEU,3AU,1SU,3T#..AT140,RT141,ST140,TT14#198201-198604

12V 55A,60A,65A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-13050i5KJ..KT147198310-198712

12V 45A

main27310-16010i4AGEU..AT141198310-198501

12V 60A

main27310-16011i4AGEU..AT141198501-198508

12V 60A

main27310-34050i12TJ..TT147198201-198310

12V 55A

main27310-38061i18RGEU,3T#..RT141,TT142198201-198508

12V 55A,60A,65A

main27310-45110i2YPU..YT140198209-198306

12V 55A

main27310-61013i3AU..AT140198201-198204

12V 55A

sub27310-61023

main27310-61023i3AU..AT140198204-198712

12V 55A

main27310-63010i1SU..ST140198201-198409

12V 55A

main27310-63011i1SU..ST140198409-198712

12V 55A

main27310-64030i1C,2C..CT14#198201-199111

12V 55A

main27310-72040i2YPU..YT140198306-198401

12V 55A

sub27310-72041

sub27412-16030

main27310-72041i2YPU..YT140198401-198902

12V 55A

main27310-72250i2YPU..YT140198902-199804

12V 60A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-16030i2YPU..YT140198401-198712

12V 55A

main27412-16040i2YPU..YT140198604-198902

12V 55A

main27412-31040i12TJ,18RGEU,3AU,1SU,3T#,2YPU..AT140,RT141,ST140,TT14#,YT140198201-198306

12V 55A,60A,65A

main27412-31040i12TJ,3AU,5KJ,1SU,3T#..AT140,KT147,ST140,TT14#198306-198409

12V 45A,55A,60A,65A

main27412-31040i3AU,5KJ,3TGTEU..AT140,KT147,TT142198409-198712

12V 45A,55A,65A

main27412-57060i1C,2C..CT14#198201-199111

12V 55A

main27412-63020i4AGEU..AT141198310-198508

12V 60A

main27412-63030i2YPU..YT140198306-198401

12V 55A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10125i3TGTEU..TT142198409-198508

12V 65A

main90099-10125i12TJ,18RGEU,1SU,3T#,2YPU..RT141,ST140,TT14#,YT140198201-198409

12V 55A,60A,65A

main90099-10125i3AU,5KJ..AT140,KT147198201-198712

12V 45A,55A

main90099-10137i1C,2C..CT14#198201-199804

12V 55A

main90099-10142i1SU..ST140198306-198902

12V 55A

sub90099-10223

main90099-10152i4AGEU..AT141198310-198501

12V 60A

main90099-10159i4AGEU..AT141198501-198508

12V 60A

main90099-10177i2YPU..YT140198902-199804

12V 60A

27330ROTOR ASSY, ALTERNATOR

main27330-15070i3TEU..TT142..5F198201-198310

12V 55A

sub27330-45090

main27330-43040i18RGEU,2YPU..RT141,YT140198201-198902

12V 55A,60A,65A

main27330-43040i3TGTEU..TT142198210-198508

12V 65A

main27330-43132i2YPU..YT140198902-199804

12V 60A

main27330-45020i5KJ..KT147198310-198712

12V 45A

main27330-45070i12TJ..TT147198201-198310

12V 55A

sub27330-16030

main27330-54181i2C..CT141199101-199111

12V 55A

main27330-56190i1C..CT140..STD198201-198404

12V 55A

sub27330-64080

main27330-63010i3AU,1SU..AT140,ST140198201-198712

12V 55A

main27330-63020i4AGEU..AT141198310-198501

12V 60A

sub27330-72101

sub27312-63020

main27330-64010i1C..CT140,147..DLX,EXS,GX198201-198712

12V 55A

main27330-64080i1C,2C..CT140,141198404-199101

12V 55A

sub27330-64170

main27330-72100i4AGEU..AT141198501-198508

12V 60A

sub27330-72101

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10116i12TJ,18RGEU,3AU,5KJ,1SU,3T#,2YPU..AT140,KT147,RT141,ST140,TT14#,YT140198201-198902

12V 45A,55A,60A,65A

main90099-10140i4AGEU..AT141198310-199804

12V 60A

27350FRAME ASSY, RECTIFIER END

main27350-64030i1C,2C..CT14#198201-199111

12V 55A

main27350-64040i1C..CT140198404-198408

12V 55A

sub27350-64030

27350BCONDENSER, ALTERNATOR

main90099-52065i12TJ,18RGEU,3AU,5KJ,1SU,3T#,2YPU..AT140,KT147,RT141,ST140,TT14#,YT140198201-198902

12V 45A,55A,60A,65A

sub90099-52034

main90099-52066i1C,2C..CT14#198201-199111

12V 55A

sub90099-52035

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i12TJ,18RGEU,3AU,5KJ,1SU,3T#,2YPU..AT140,KT147,RT141,ST140,TT14#,YT140198201-198902

12V 45A,55A,60A,65A

main27351-64010i1C,2C..CT14#198201-199111

12V 55A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-13090i5KJ..KT147198310-198712

12V 45A

main27359-15021i3AU..AT140198201-198712

12V 55A

main27359-16010i4AGEU..AT141198310-198404

12V 60A

sub27359-16011

sub27370-16011

main27359-16011i4AGEU..AT141198404-198508

12V 60A

sub27359-16012

sub27384-16380

main27359-24100i12TJ..TT147198201-198310

12V 55A

main27359-28030i18RGEU,3T#..RT141,TT142198201-198508

12V 55A,60A,65A

main27359-63010i1SU..ST140198201-198712

12V 55A

main27359-72040i2YPU..YT140198209-198902

12V 55A

main27359-72250i2YPU..YT140198902-199804

12V 60A

27362RECTIFIER ASSY, W/BRUSH

main27362-13090i5KJ..KT147198310-198712

12V 45A

main27362-15070i3TEU..TT142..5F198201-198310

12V 55A

main27362-34021i12TJ,3AU..AT140,TT147198201-198712

12V 55A

sub27362-63011

main27362-43040i3TGTEU..TT142198210-198508

12V 65A

main27362-43040i18RGEU..RT141;3TEU..TT142..4FC198201-198310

12V 60A,65A

main27362-63011i1SU..ST140198201-198712

12V 55A

main27362-72040i2YPU..YT140198209-198902

12V 55A

27371BRUSH, ALTERNATOR

main27371-31011i12TJ,18RGEU,3AU,5KJ,1SU,3T#..AT140,KT147,RT141,ST140,TT14#198201-198712

12V 45A,55A,60A,65A

main27371-44071i2YPU..YT140198209-198902

12V 55A

main27371-54412i2C..CT141199106-199111

12V 55A

main27371-56070i1C,2C..CT14#198201-199106

12V 55A

sub27371-54412

main27371-63020i4AGEU..AT141198310-198508

12V 60A

sub27371-70300

main27371-72161i2YPU..YT140198902-199804

12V 60A

sub27371-70300

27372SPRING, ALTERNATOR BRUSH

main27372-31011i2YPU..YT140198712-198902

12V 55A

main27372-31011i12TJ,18RGEU,3AU,5KJ,1SU,3T#..AT140,KT147,RT141,ST140,TT14#198201-198712

12V 45A,55A,60A,65A

main27372-56070i1C,2C..CT14#198201-199111

12V 55A

main27372-63020i2YPU..YT140198902-199804

12V 60A

sub27372-87501

main27372-72100i4AGEU..AT141198310-198508

12V 60A

sub27372-63020

main90099-17114i2YPU..YT140198209-198712

12V 55A

sub27372-31011

27410STATOR ASSY, ALTERNATOR

main27410-38120i5KJ..KT147198310-198712

12V 45A

main27410-41080i3TEU..TT142..5F198201-198508

12V 55A

main27410-43040i3TEU..TT142..4FC;18RGEU,3AU,1SU..AT140,RT141,ST140198201-198712

12V 55A,60A,65A

main27410-43040i3TGTEU..TT142198210-198508

12V 65A

main27410-43040i1C..CT140,147..DLX,EXS,GX198307-198712

12V 55A

main27410-45120i12TJ..TT147198201-198310

12V 55A

sub27410-43040

main27410-57070i1C,2C..CT140,141..STD198201-199111

12V 55A

main27410-64010i1C..CT14#..DLX,EXS,GX198201-198307

12V 55A

main27410-72040i2YPU..YT140198209-198902

12V 55A

27411PULLEY, ALTERNATOR

main27411-13160i5KJ..KT147198310-198712

12V 45A

main27411-16010i4AGEU..AT141198310-198501

12V 60A

main27411-16011i4AGEU..AT141198501-198508

12V 60A

main27411-26111i18RGEU,3AU..AT140,RT141198201-198712

12V 55A,65A

main27411-31042i12TJ,3TEU..TT14#198201-198310

12V 55A,60A

main27411-35090i3TGTEU..TT142198210-198508

12V 65A

main27411-63010i1SU..ST140198201-198202

12V 55A

sub27411-63011

sub27441-63030

main27411-63011i1SU..ST140198202-198712

12V 55A

main27411-64010i1C,2C..CT14#198201-199111

12V 55A

main27411-72040i2YPU..YT140198209-198902

12V 55A

main27411-72130i2YPU..YT140198902-199804

12V 60A

27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)

main27412-15150i2YPU..YT140198604-198902

12V 55A

main27412-44030i12TJ,3AU..AT140,TT147198201-198712

12V 55A

sub27412-44031

main27412-44031i18RGEU,3TEU..RT141,TT142198201-198310

12V 50A,60A,65A

main27412-45070i2YPU..YT140198209-198604

12V 55A

27441FAN, ALTERNATOR

main27441-34030i12TJ,3AU,5KJ..AT140,KT147,TT147198201-198712

12V 45A,55A

main27441-34111i3TEU..TT142..4FC198210-198310

12V 60A

main27441-34111i3TGTEU..TT142198210-198508

12V 65A

main27441-34111i3TEU..TT142..4FC;18RGEU,2YPU..RT141,YT140198201-198210

12V 55A,60A,65A

main27441-45110i3TEU..TT142..5F198201-198310

12V 55A

main27441-56090i1C..CT140,147..DLX,EXS,GX198201-198712

12V 55A

main27441-63030i1SU..ST140198202-198712

12V 55A

main27441-64030i1C,2C..CT140,141..STD198201-199111

12V 55A

main27441-70040i2YPU..YT140198210-198902

12V 55A

27700AREGULATOR ASSY, GENERATOR

main27700-43010i18RGEU,3T#..RT141,TT142198201-198508

12V 55A,60A,65A

main27700-57060i1C..CT140..STD198201-198606

12V 55A

main27700-63010i1C..CT140..EXS,GX;12TJ,3AU,1C,5KJ,1SU..AT140,CT147,KT147,ST140,TT147198201-198712

12V 55A,60A

main27700-63021i4AGEU..AT141198310-198508

12V 60A

sub27700-70030

main27700-63030i2YPU..YT140198209-198308

12V 55A

main27700-64030i1C,2C..CT140,141198606-199111

12V 55A

main27700-72050i2YPU..YT140198308-198902

12V 55A

sub27700-63030

main27700-72080i2YPU..YT140198902-199804

12V 60A

2737845090INSULATOR, ALTERNATOR, NO.1

main27378-45090

2738745022INSULATOR, TERMINAL

main27387-45022

2738745110INSULATOR, TERMINAL

main27387-45110

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110049

main90101-10049

9011908023

main90119-08023

9017906158

main90179-06158

9166140820

main91661-40820

9411041000

main94110-41000

9451101000

main94511-01000

9451101400

main94511-01400

9451201000

main94512-01000

9461211001

main94612-11001

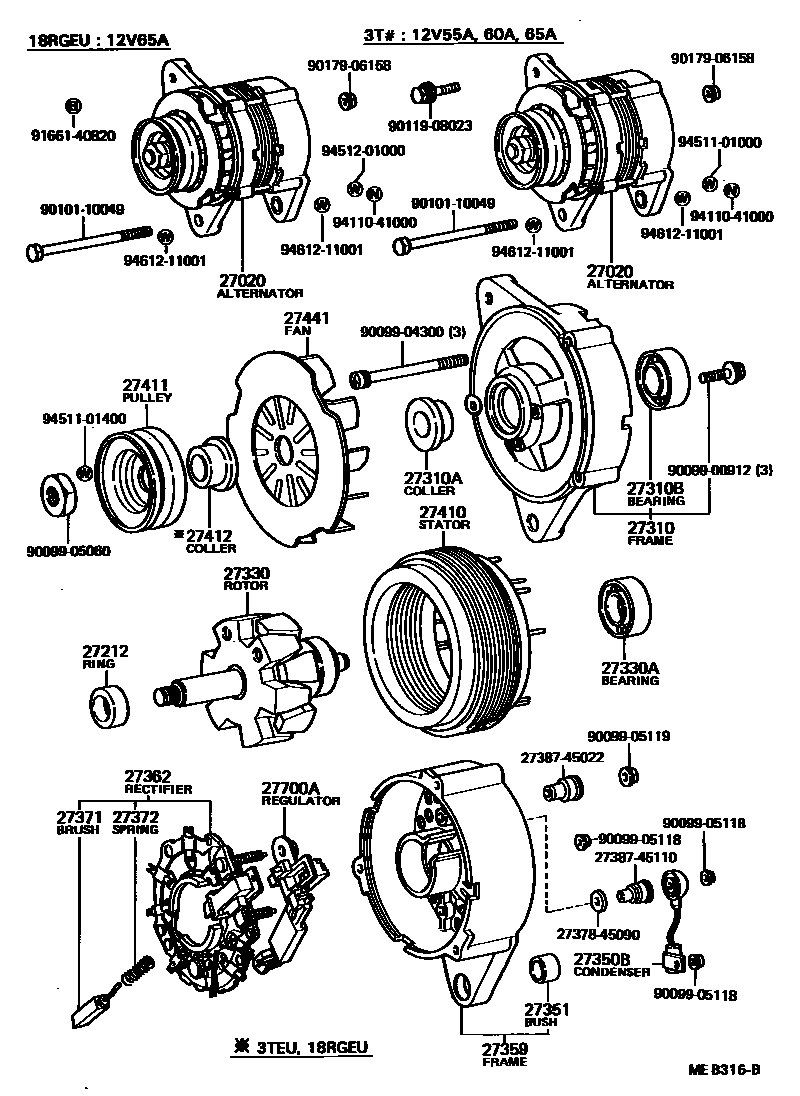

36 parts on this diagram · 10 diagrams in section
