RADIATOR & WATER OUTLET

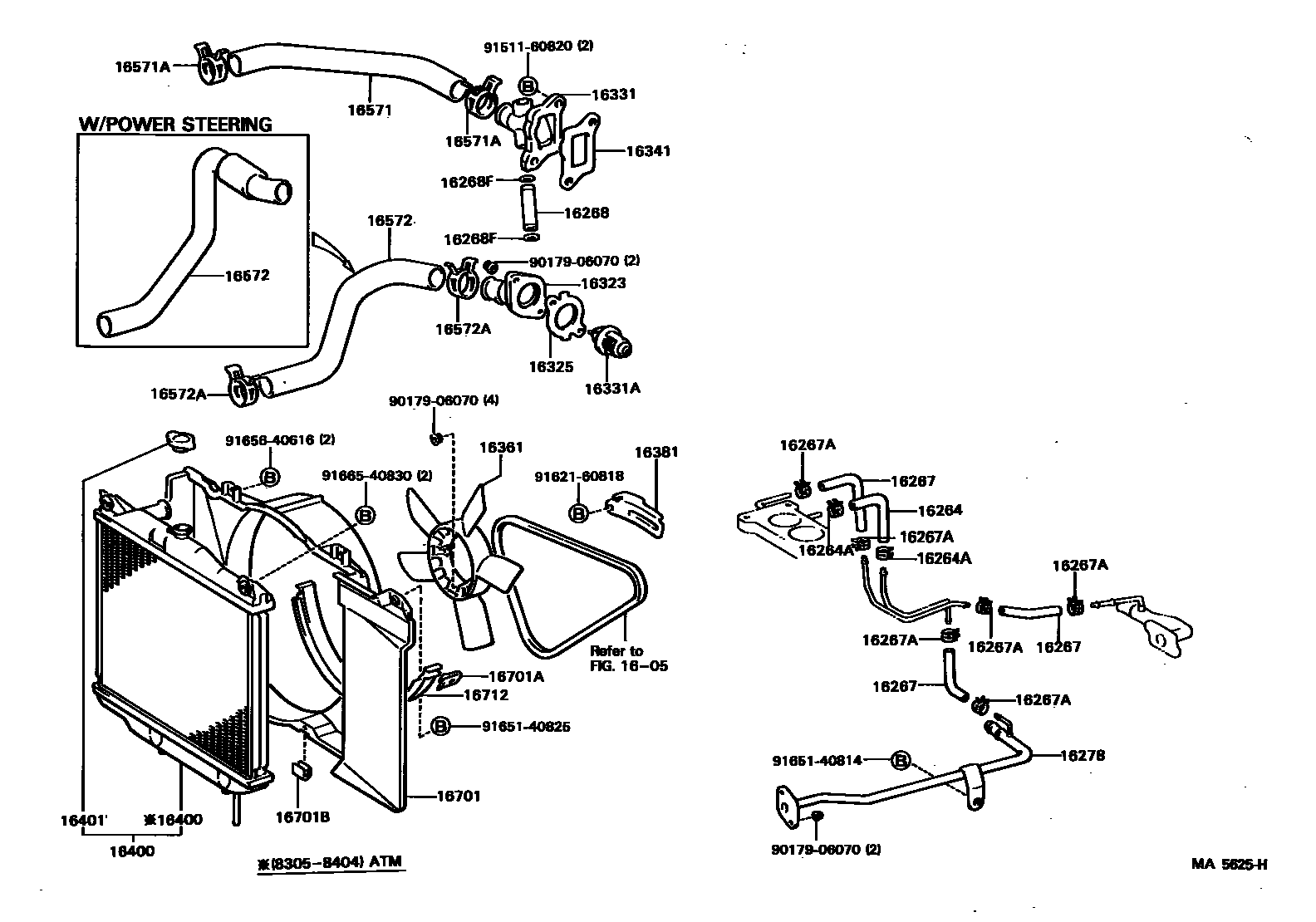

Parts diagram

1605

16264HOSE, WATER BY-PASS, NO.2

main16264-15030i198310-198712

main16264-15040i198211-198310

main16264-16020i198310-198508

main16264-28010i198201-198310

main16264-64010i198201-199111

main16264-64020i198201-198310

COLD SPEC

main16264-64040i198310-198508

main99553-00130i198308-198405

L=130

main99553-00200i198307-198308

COLD SPEC

main99555-00140i198405-198712

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-11009i198307-198308

COLD SPEC

main90467-11009i198211-198712

main90467-13001i198310-198508

main90467-15004i198201-198908

main90467-15022i198908-199111

main90467-20005i198201-198310

16267HOSE, WATER BY-PASS, NO.3

main16281-88280i198210-198508

main99553-00100i198211-198308

main99553-00100i198308-198405

L=100

main99553-00130i198308-198405

L=130

main99553-00200i198307-198308

COLD SPEC

main99555-00100i198405-198712

L=100

main99555-00100i198308-198712

main99555-00140i198405-198712

16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

main90467-11009i198211-198712

main90467-11009i198307-198308

COLD SPEC

main90467-13001i198210-198508

16268PIPE, WATER BY-PASS, NO.1

main16268-15010i198201-198503

main16268-15011i198503-198712

main16268-16010i198310-198504

main16268-16011i198504-198508

main16268-63030i198307-198308

COLD SPEC

main16268-64010i198204-198508

main16268-64050i198508-199111

main16268-72010i198209-198502

main16268-72011i198502-198608

main16268-72020i198608-199804

main16268-88273i198201-198210

main16268-88280i198310-198508

main87208-20150i198201-198204

16268FRING, O(FOR WATER BY-PASS PIPE)

main96711-24013i198201-198712

16278PIPE, WATER BY-PASS, NO.2

main16278-15040i198211-198712

main16278-16020i198310-198508

16323HOUSING, WATER INLET

main16323-15020i198201-198712

main16323-16020i198310-198508

main16323-63010i198201-198712

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i198201-199301

main16325-63011i199301-199804

main16325-70021i198201-198712

16331OUTLET, WATER

main16304-63010i198307-198308

COLD SPEC

main16331-15010i198201-198303

main16331-15050i198303-198712

main16331-16020i198310-198508

main16331-22031i198310-198712

main16331-26060i198201-198310

main16331-27020i198201-198310

main16331-63010i198201-198508

main16331-63020i198201-198508

main16331-63030i198201-198508

COLD SPEC

main16331-63030i198508-198712

main16331-64010i198201-199111

main16331-71010i198209-199804

main16331-88270i198201-198210

main16331-88280i198210-198508

16331ATHERMOSTAT

main90916-03034i198201-198212

*WAX 82-95,*(F)

main90916-03036i198212-198304

*WAX 88-100

main90916-03036i198201-198212

*WAX 88-100,*(F)

main90916-03036i198201-198212

COLD SPEC,*WAX 88-100,*(F)

main90916-03037i198201-198212

*WAX 82-95,KUZEH

main90916-03040i198201-198212

*WAX 88-100,KUZEH

main90916-03040i198201-198212

COLD SPEC,*WAX 88-100,KUZEH

main90916-03046i198201-199804

main90916-03046i198201-199111

main90916-03054i198212-198712

main90916-03054i198212-198712

main90916-03055i198212-198712

main90916-03055i198212-198508

main90916-03055i198212-198712

main90916-03069i198502-199201

16341GASKET, WATER OUTLET

main16341-13011i198310-198712

main16341-15011i198201-198712

main16341-16010i198310-198508

main16341-38011i198201-198310

main16341-63010i198201-198712

main16341-64010i198201-198903

main16341-64020i198903-199110

main16341-64021i199110-199111

main16341-71010i198209-198912

main16341-71011i198912-199707

main16341-73010i199707-199804

main16341-88260i198201-198208

main16341-88280i198208-198508

16361FAN

main16361-13060i198310-198712

main16361-15020i198201-198712

main16361-16010i198310-198508

main16361-18010i198201-198405

main16361-26040i198201-198310

main16361-34030i198201-198210

main16361-38010i198201-199804

main16361-45020i198201-198712

16381BAR, FAN BELT ADJUSTING

main16381-15011i198201-198203

main16381-15030i198203-198712

main16381-16010i198310-198508

main16381-24011i198310-198712

main16381-25010i198201-198310

main16381-34030i198201-198210

main16381-63010i198201-198712

main16381-64011i198201-198612

main16381-64040i198612-199111

main16381-71010i198209-198902

main16381-73011i198902-199804

main16381-88280i198210-198508

main88688-12040i198201-198712

W/COOLER

16400RADIATOR ASSY

main16400-13320i198404-198712

W/CAP

main16400-13330i198404-198712

W/CAP

main16400-15080i198201-198202

W/CAP

main16400-15081i198202-198712

W/CAP

main16400-15090i198201-198202

W/CAP

main16400-15091i198202-198305

W/CAP

main16400-15240i198404-198712

W/CAP

main16400-26330i198201-198310

W/CAP

main16400-26340i198201-198310

W/CAP

main16400-28060i198201-198310

W/CAP

main16400-28070i198210-198508

W/CAP

main16400-28080i198210-198306

W/CAP

main16400-28081i198404-198508

W/CAP

main16400-37090i198201-199111

W/CAP

main16400-37100i198201-198310

W/CAP

main16400-63010i198201-198712

W/CAP

main16400-63020i198201-198712

W/CAP

main16400-72010i198209-198609

W/CAP

main16400-72011i198609-198701

W/CAP

main16400-72090i198209-198811

W/CAP

main16400-72091i198811-199804

W/CAP

main16400-72190i198701-198811

W/CAP

main16400-72191i198811-199206

W/CAP

main16400-72192i199206-199804

W/CAP

main16410-13310i198310-198404

W/O CAP

main16410-13320i198310-198404

W/O CAP

main16410-15240i198305-198404

W/O CAP

main16410-28081i198306-198404

W/O CAP

16401CAP SUB-ASSY, RADIATOR

main16401-63010i198201-199111

main16401-72090i198811-199804

16571HOSE, RADIATOR, INLET

main16571-15070i198201-198712

main16571-16020i198310-198508

main16571-28030i198201-198310

W/PS

main16571-34140i198201-198210

main16571-63010i198201-198712

main16571-64010i198201-199111

main16571-72010i198209-199705

main16571-72011i199705-199804

main16572-13110i198310-198712

main16572-28010i198210-198508

main90916-01143i198201-198310

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-33002i198506-198712

RADIATOR SIDE

main90467-34001i198201-198712

main90467-34001i198310-198506

RADIATOR SIDE

main90467-37001i198201-199804

main90467-37001i198310-198712

WATER OUTLET SIDE

16572HOSE, RADIATOR, OUTLET

main16571-13140i198310-198712

main16571-26090i198201-198310

main16571-28040i198310-198508

main16572-15070i198201-198712

main16572-15101i198201-198712

W/PS

main16572-16030i198310-198508

main16572-34090i198201-198210

main16572-63010i198201-198712

main16572-64010i198201-199111

main16572-72010i198209-199705

main16572-72011i199705-199804

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-47036i198310-198712

main90467-33002i198506-198712

main90467-34001i198201-198712

main90467-37001i198201-199804

main96111-10460i198201-198508

RADIATOR SIDE

main96111-10490i198201-198508

WATER PUMP SIDE

16701SHROUD SUB-ASSY, FAN

main16711-13210i198310-198712

main16711-15070i198201-198712

main16711-26090i198201-198310

main16711-28090i198201-198305

main16711-28091i198305-198508

main16711-34110i198201-198210

main16711-63010i198201-198712

main16711-64010i198201-199111

main16711-72010i198209-199804

16701ACLIP(FOR FAN SHROUD)

main90468-06013i198201-199804

W/COOLER

main90468-06013i198310-198712

16701BCUSHION, FAN SHROUD

main90541-11002i198201-199804

16712SHROUD, FAN, NO.2

main16712-13070i198310-198712

main16712-44040i198201-198712

W/COOLER

main16712-54050i198201-199804

W/COOLER

9017906070

main90179-06070

9151160820

main91511-60820

9162160818

main91621-60818

9165140814

main91651-40814

9165140825

main91651-40825

9165640616

main91656-40616

9166540830

main91665-40830

32 parts on this diagram · 18 diagrams in section
