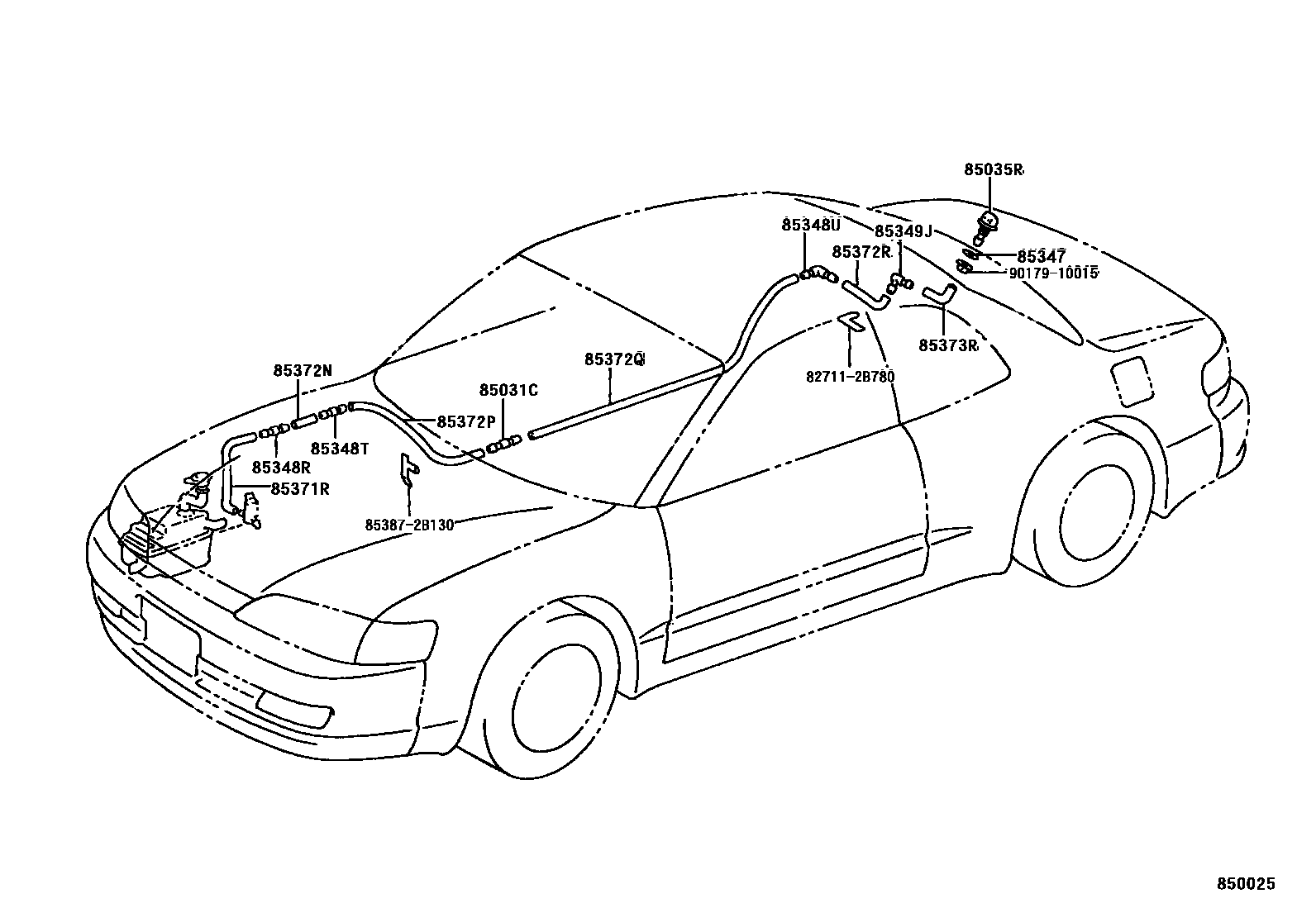

REAR WASHER

85031CVALVE SUB-ASSY, WASHER

85035RNOZZLE SUB-ASSY, REAR WASHER

85347PACKING, REAR WASHER

85348RJOINT, REAR WASHER HOSE, NO.1

85348TJOINT, REAR WASHER HOSE, NO.2

85348UJOINT, REAR WASHER HOSE, NO.3

85349JJOINT, REAR WASHER HOSE, NO.4

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

827112B780WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

853872B130CLAMP NO.1 (FOR WINDSEIELD WASHER)

9017910015

16 parts on this diagram · 1 diagram in section
