INTERIOR LAMP

81230LAMP ASSY, COURTESY

main81230-50040×2iST20#199402

81230BBULB(FOR COURTESY LAMP)

main90981-11020×2iST20#199402

81231LENS, COURTESY LAMP

main81231-50020×2iST20#199402

81260LAMP ASSY, GLOVE BOX

main81260-33010iST20#199402

81260ALAMP ASSY, MAP

main81260-14080-B1iST20#199402-199509

LI.GRAY,TRIM1#

main81260-14080-B3iST20#199509

LT.GRAY,TRIM1#

main81260-20220-B0iST20#199402-199509

main81260-20220-B1iST20#199509

81260BBULB(FOR GLOVE BOX)

main90981-11018iST20#199402

81260CBULB(FOR MAP LAMP)

main90981-12005×2iST20#199402

main90981-12014iST20#199402

81261LENS AND COVER, MAP LAMP

main81261-14080iST20#199402

main81261-20220-B0iST20#199402-199509

main81261-20220-B2iST20#199509

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-12020iST20#199402

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iST20#199402

81870EBULB, KEY CYLINDER LAMP

main90981-11018iST20#..XS,ZS199402-199509

81870FCAP, KEY CYLINDER LAMP BULB

main84998-10080iST20#..XS,ZS199402-199509

81871LENS, KEY ILLUMINATION

main81871-20030iST206..FS199402-199509

9015950193

main90159-50193

9354054016

main93540-54016

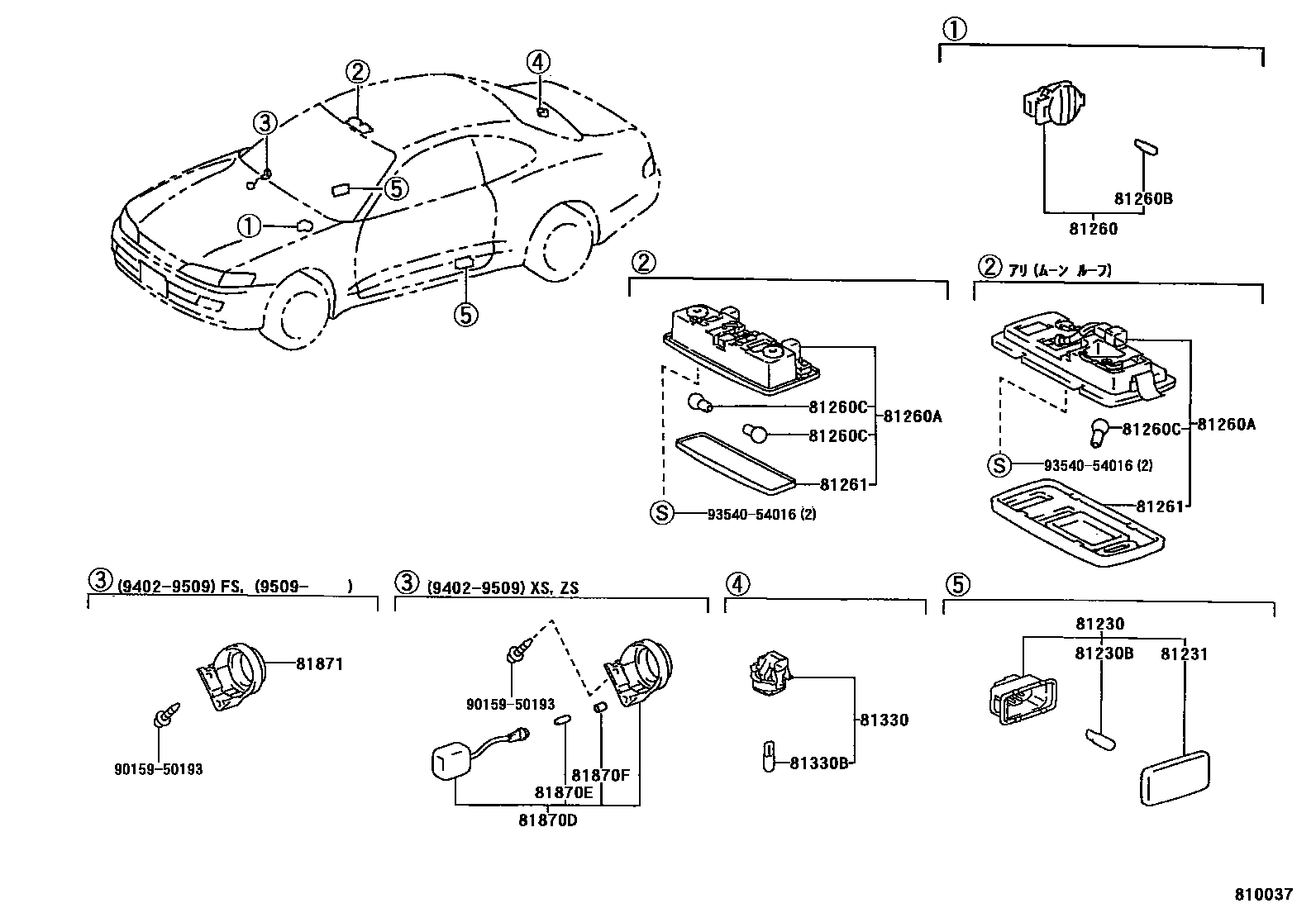

15 parts on this diagram · 1 diagram in section
