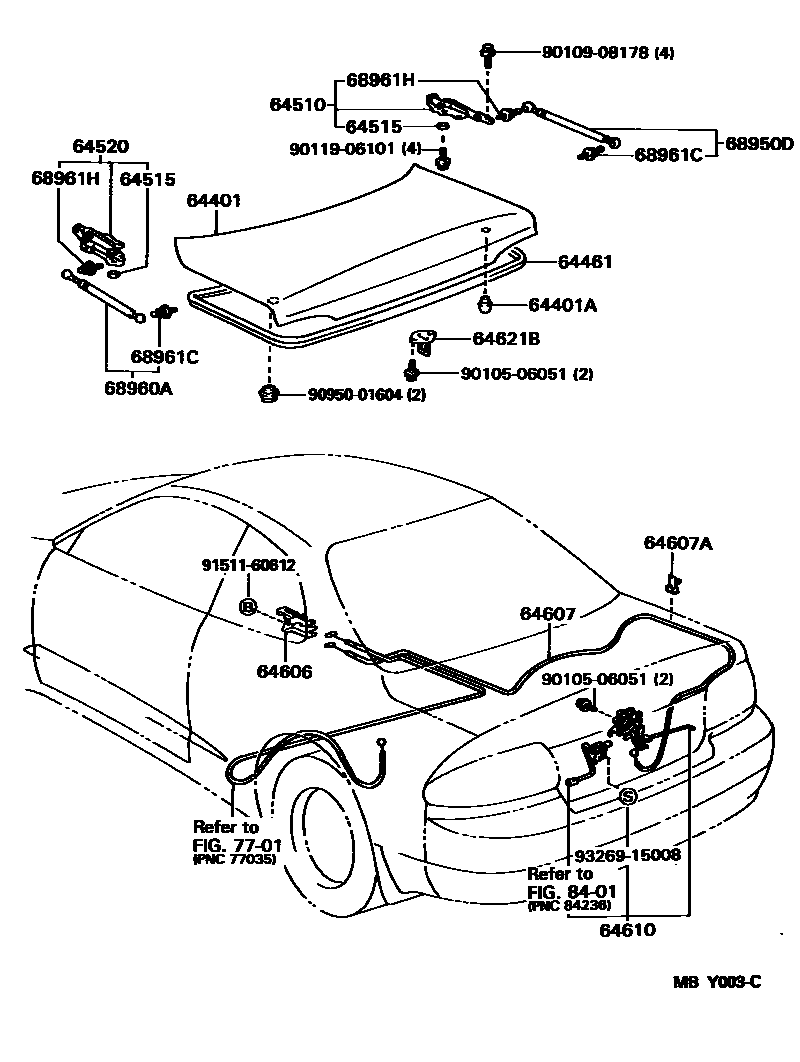

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-2B680iST20#199402

main64401-2B690iST20#199402

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-09075×2iST20#199402

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-20380iST20#199402

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-20180iST20#199402

64515PAD, LUGGAGE DOOR HINGE

main64515-20080×4iST20#199402

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-20170iST20#199402

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-20120iST20#199402-199508

main64606-20121iST20#199508

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-20890iST20#199402

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main69749-12010iST20#199402

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-20280iST20#199402

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64620-20180iST20#199402

68950DSTAY ASSY, LUGGAGE DOOR, RH

main68950-80032iST20#199402

main68950-80033iST20#199402

68960ASTAY ASSY, LUGGAGE DOOR, LH

main68950-80032iST20#199402

main68950-80033iST20#199402

68961CBOLT, LUGGAGE DOOR STAY

main68961-20130×2iST20#199402

68961HBOLT, LUGGAGE DOOR STAY

main68961-20120×2iST20#199402

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506051

main90105-06051

9010908178

main90109-08178

9011906101

main90119-06101

9095001604

main90950-01604

9151160612

main91511-60612

9326915008

main93269-15008

23 parts on this diagram · 1 diagram in section
