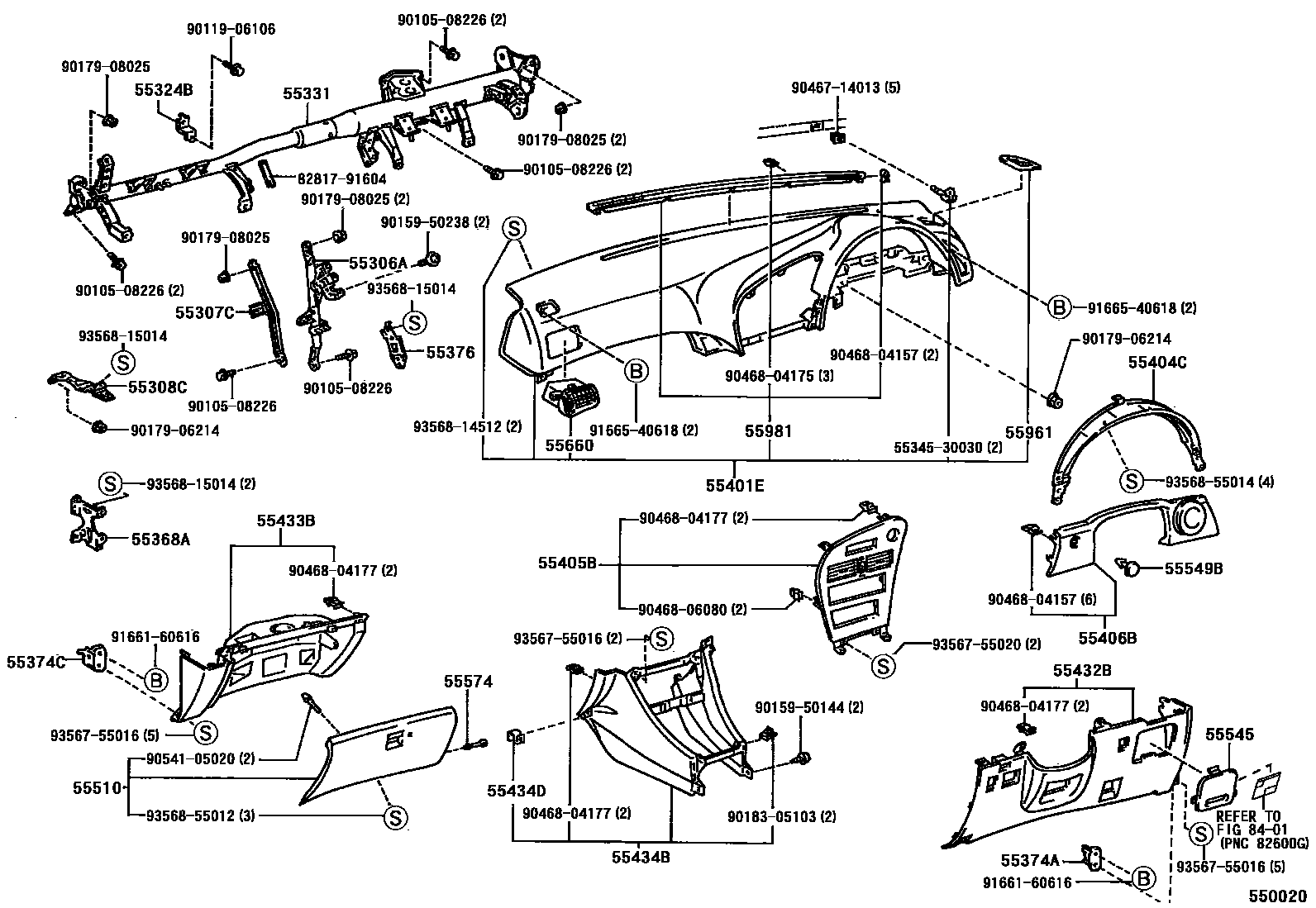

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-20220iST20#199402

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55352-20190iST20#199402

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-20200iST20#199402

55324BBRACKET, INSTRUMENT PANEL, NO.4

main55324-20100iST20#199402

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-20190iST20#199402-199606

main55330-20220iST20#199509

55368ABRACKET, RADIO MOUNTING, NO.2

main55368-20090iST20#199402

55374ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH

main55374-20030iST20#199402

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-20030iST20#199402

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-20150iST20#199402

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-20680-B0iST20#199402-199606

SHADOW GRAY,TRIM1#

main55401-20720-B0iST20#199509

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55411-20660iST20#199402

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-20190iST20#199402

55406BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER

main55406-20060iST20#199402

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-20330-B0iST20#199402

SHADOW GRAY,TRIM1#

55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

main55433-20130-B0iST20#199402

SHADOW GRAY,TRIM1#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-20170-B0iST20#199402

SHADOW GRAY,TRIM1#

55434DCLIP, INSTRUMENT PANEL FINISH, LOWER CENTER

main90183-05045×2iST20#199402

55510DOOR ASSY, GLOVE COMPARTMENT

main55501-20140-B0iST20#199402-199807

SHADOW GRAY,TRIM1#

55545COVER, FUSE BOX OPENING

main55545-20050-B0iST20#199402

SHADOW GRAY,TRIM1#

55549BCOVER, INSTRUMENT PANEL HOLE, NO.2

main55549-20030iST20#199402

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010×2iST20#199402

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-20230-B0iST20#199402

SHADOW GRAY,TRIM1#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-20230-B0iST20#199402

SHADOW GRAY,TRIM1#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-20120iST20#199402

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

5534530030GARNISH, GLOVE COMPARTMENT, UPPER

main55345-30030

8281791604PROTECTOR, WIRING HARNESS, NO.1

main82817-91604

9010508226

main90105-08226

9011906106

main90119-06106

9015950144

main90159-50144

9015950238

main90159-50238

9017906214

main90179-06214

9017908025

main90179-08025

9018305103

main90183-05103

9046714013

main90467-14013

9046804157

main90468-04157

9046804175

main90468-04175

9046804177

main90468-04177

9046806080

main90468-06080

9054105020

main90541-05020

9166160616

main91661-60616

9166540618

main91665-40618

9356755016

main93567-55016

9356755020

main93567-55020

9356814512

main93568-14512

9356815014

main93568-15014

9356855012

main93568-55012

9356855014

main93568-55014

48 parts on this diagram · 2 diagrams in section
