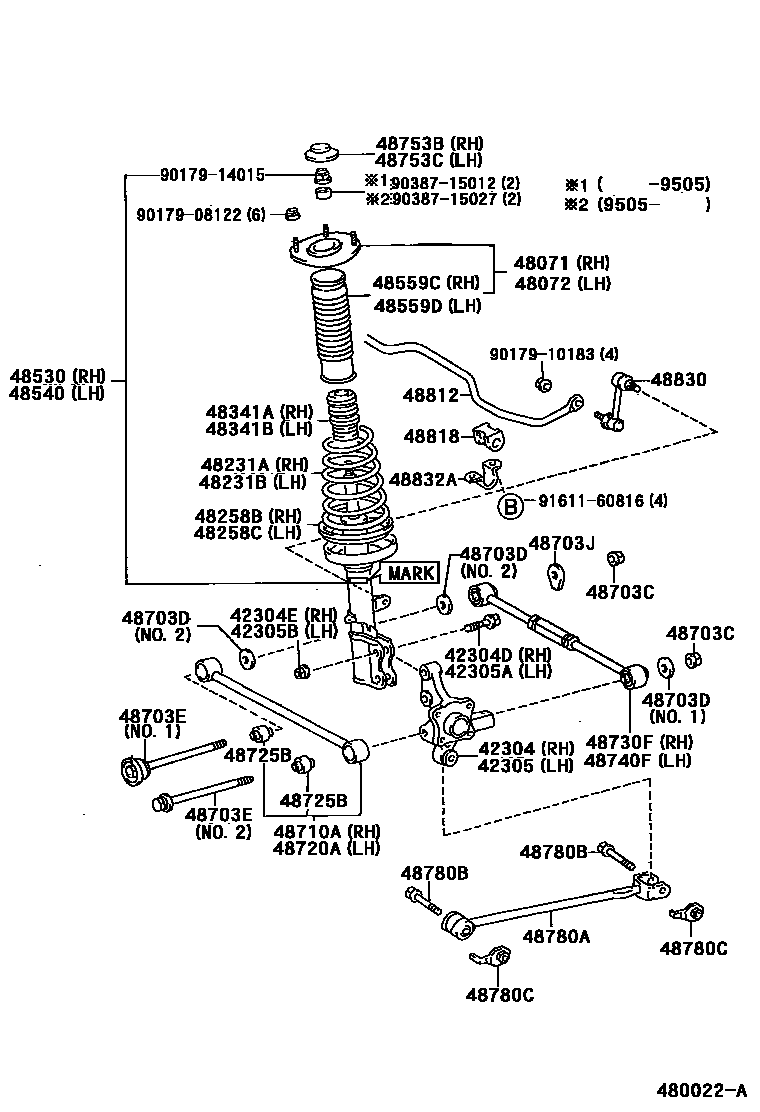

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42304DBOLT (FOR REAR AXLE CARRIER RH)
42304ENUT (FOR REAR AXLE CARRIER RH)
42305CARRIER SUB-ASSY, REAR AXLE, LH
42305ABOLT (FOR REAR AXLE CARRIER LH)
42305BNUT (FOR REAR AXLE CARRIER LH)
48071SUPPORT SUB-ASSY, REAR SUSPENSION, RH
48072SUPPORT SUB-ASSY, REAR SUSPENSION, LH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48530ABSORBER ASSY, SHOCK, REAR RH
48540ABSORBER ASSY, SHOCK, REAR LH
48559CCOVER, REAR SHOCK ABSORBER DUST, RH NO.1
48559DCOVER, REAR SHOCK ABSORBER DUST, LH NO.1
48703CNUT(FOR REAR SUSPENSION ARM)
48703DWASHER(FOR REAR SUSPENSION ARM)
48703EBOLT(FOR REAR SUSPENSION ARM)
48703JWASHER, NO.2(FOR REAR SUSPENSION ARM)
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48725BBUSH, REAR SUSPENSION ARM, NO.1
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH
48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH
48780BBOLT(FOR STRUT ROD)
48812BAR, STABILIZER, REAR
48830LINK ASSY, REAR STABILIZER
48832ABRACKET, REAR STABILIZER BAR, NO.1
9017908122
main90179-08122
9017910183
main90179-10183
9017914015
main90179-14015
9038715012
main90387-15012
9038715027
main90387-15027
9161160816
main91611-60816
42 parts on this diagram · 2 diagrams in section
