DISC WHEEL & WHEEL CAP

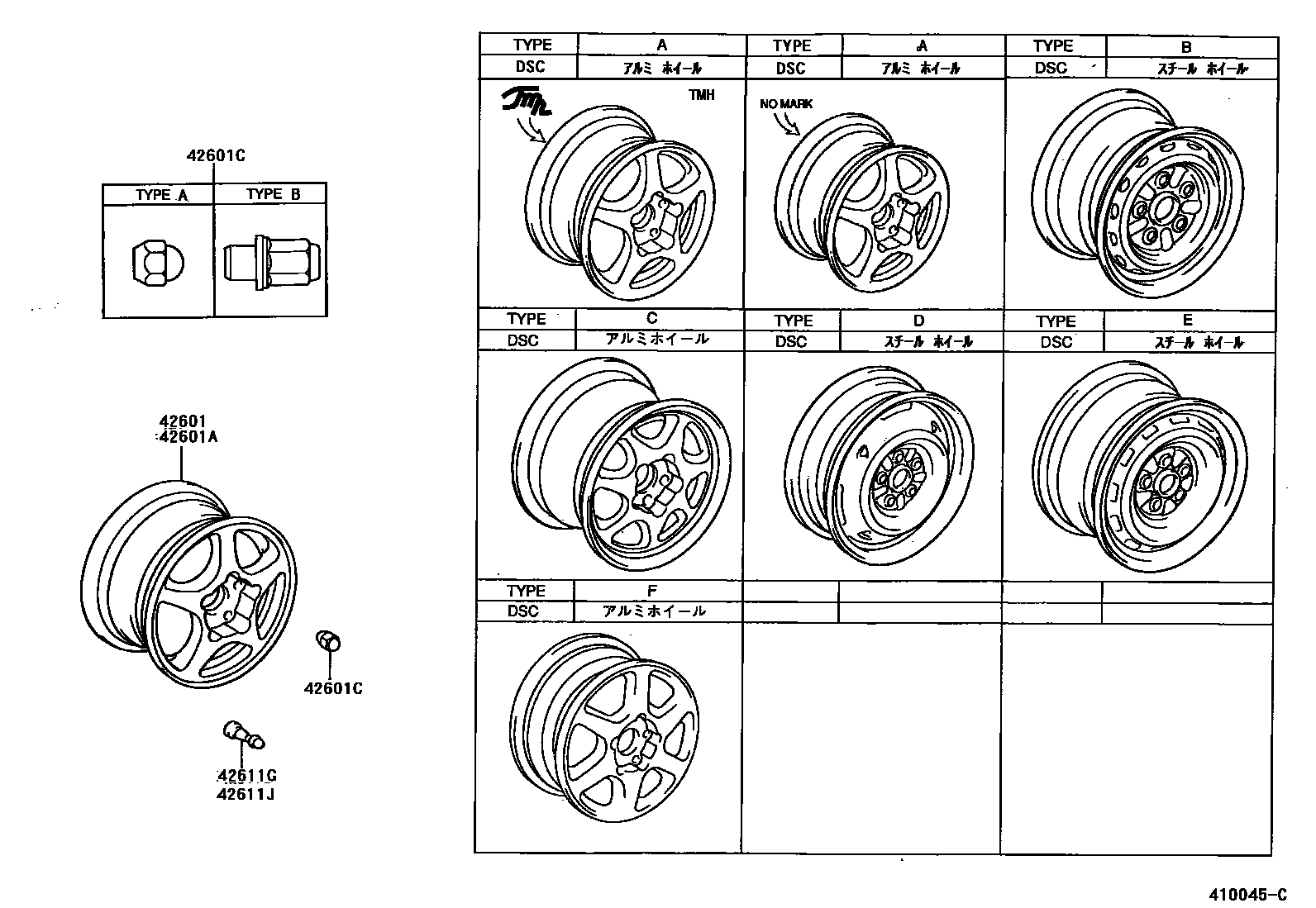

Parts diagram

42601WHEEL, DISC

main42611-20880-01×4i199402-199807

main42611-2B020×4i199509-199807

main42611-2B060×4i199402-199509

main42611-2B100×4i199509-199807

main42611-2B110×4i199402-199807

main42611-2B120×4i199402-199509

main42611-2B130×4i199509-199807

main42611-2B190×4i199606-199807

42601AWHEEL, DISC (FOR SPARE)

main42611-20840i199402-199807

main42611-20880-01i199402-199807

main42611-2B020i199509-199807

main42611-2B060i199402-199509

main42611-2B100i199509-199807

main42611-2B110i199402-199807

main42611-2B120i199402-199509

main42611-2B130i199509-199807

main42611-2B190i199606-199807

42601CNUT, HUB (FOR AXLE)

main90942-01021×20i199402-199807

main90942-01058×20i199402-199807

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4i199402

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009i199402

5 parts on this diagram · 3 diagrams in section
