TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

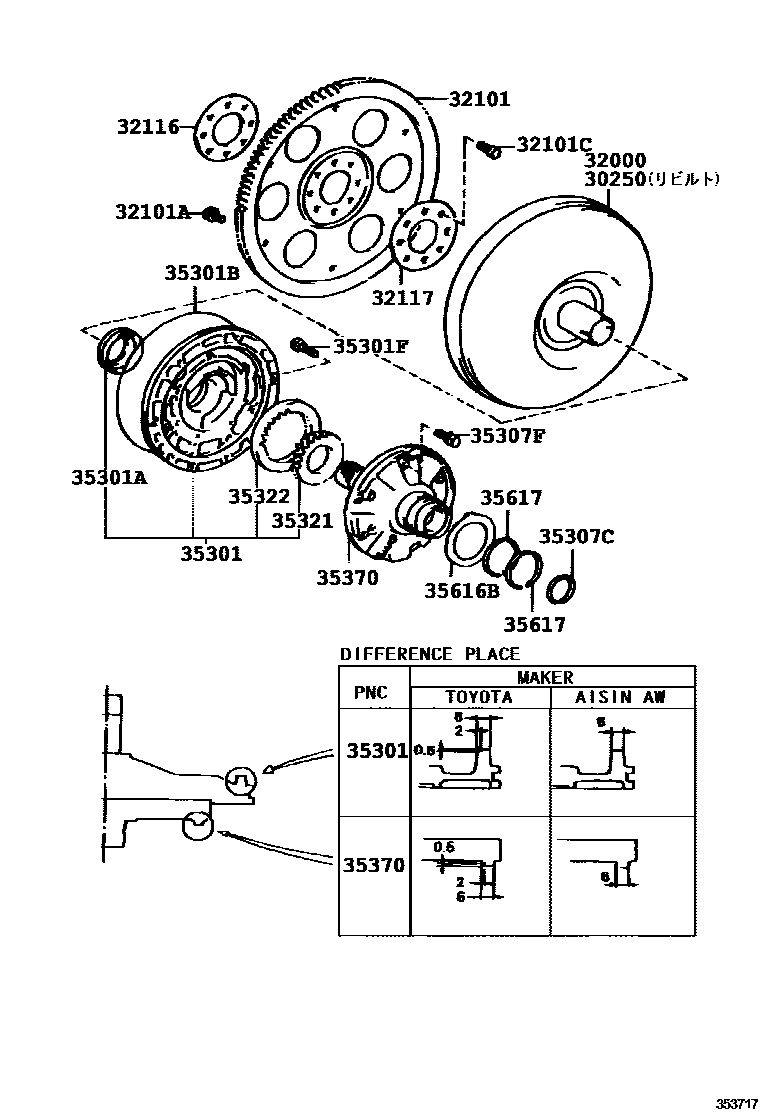

Parts diagram

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-20190i199402-199807

main30250-20200i199509-199807

32000CONVERTER ASSY, TORQUE

main32000-20190i199402-199807

main32000-20200i199509-199807

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-20081i199402

main32101-32050i199402-199406

main32101-32051i199406

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113i199402-199508

main90119-08498×5i199509-199807

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12184×8i199402

main90109-10054×8i199402

32116SPACER, DRIVE PLATE, FRONT

main32116-20050i199402

main32116-32011i199402

32117SPACER, DRIVE PLATE, REAR

main32117-20060i199402

main32117-32010i199402

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-32010i199402

main35035-32020i199402

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020i199402

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99024i199402

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08050×7i199402

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-32020i199402-199807

main35789-32030i199509-199807

35307FBOLT (FOR STATOR SHAFT)

main90119-06180×11i199402-199512

main90119-06808×11i199512

35321GEAR, FRONT OIL PUMP DRIVE

main35321-12070i199402

main35321-12080i199402

main35321-12090i199402

main35321-12100i199402

main35321-12110i199402

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-12060i199402

main35322-12070i199402

main35322-12080i199402

main35322-12090i199402

main35322-12100i199402

35370SHAFT ASSY, STATOR

main35370-12040i199402

main35370-32050i199402

35616BWASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)

main35616-32010i199402

35617RING, CLUTCH DRUM OIL SEAL

main35617-32011×2i199402

18 parts on this diagram · 1 diagram in section
