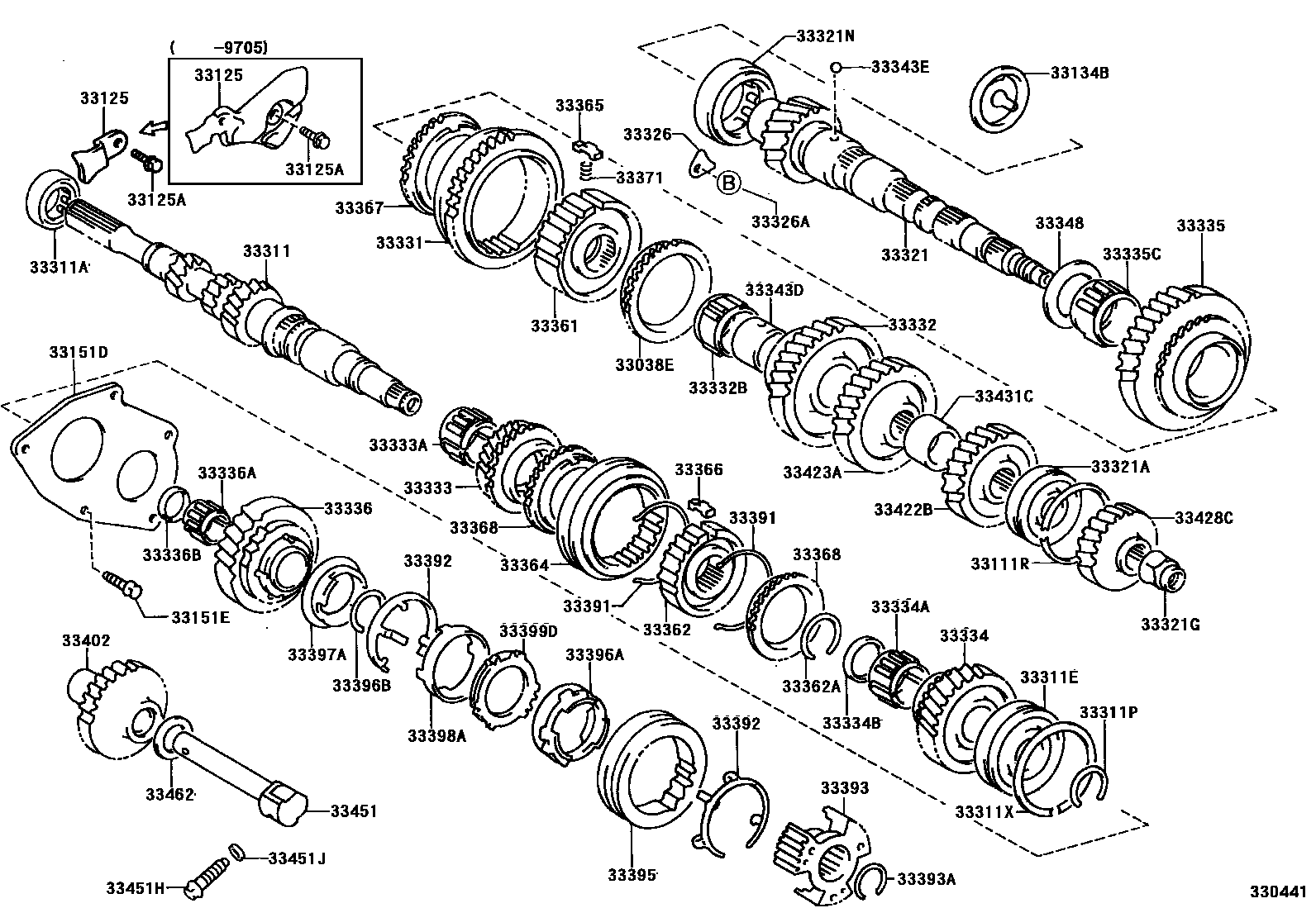

TRANSMISSION GEAR (MTM)
33038ERING SET, SYNCHRONIZER, NO.2
33111RRING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING)
33125ABOLT(FOR TRANSAXLE CASE RECEIVER)
33134BCOVER, OUTPUT SHAFT(MTM)
33151EBOLT(FOR REAR BEARING RETAINER)
33311ABEARING (FOR INPUT SHAFT FRONT)
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
33311XRING, HOLE SNAP (FOR INPUT SHAFT REAR BEARING)
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33326PLATE, BEARING LOCK
33326ABOLT (FOR BEARING LOCK PLATE)
sub91611-G0820
33332GEAR, 2ND
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33334GEAR, 4TH
33334BSPACER (FOR 4TH GEAR BEARING)
33336GEAR, 5TH
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
33336BSPACER (FOR 5TH GEAR BEARING)
33343EBALL (FOR 2ND GEAR BUSH)
33348WASHER, 1ST GEAR THRUST
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
33396ARING, SYNCHRONIZER PULL
33396BRING, SNAP (FOR SYNCHRONIZER PULL RING)
33397ARING, SYNCHRONIZER, INNER NO.5
33398ARING, SYNCHRONIZER, MIDDLE NO.5
33399DRING, SYNCHRONIZER, OUTER NO.5
33402GEAR SUB-ASSY, REVERSE IDLER
33431CSPACER, OUTPUT GEAR
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
33462WASHER, REVERSE IDLER THRUST
62 parts on this diagram · 3 diagrams in section
