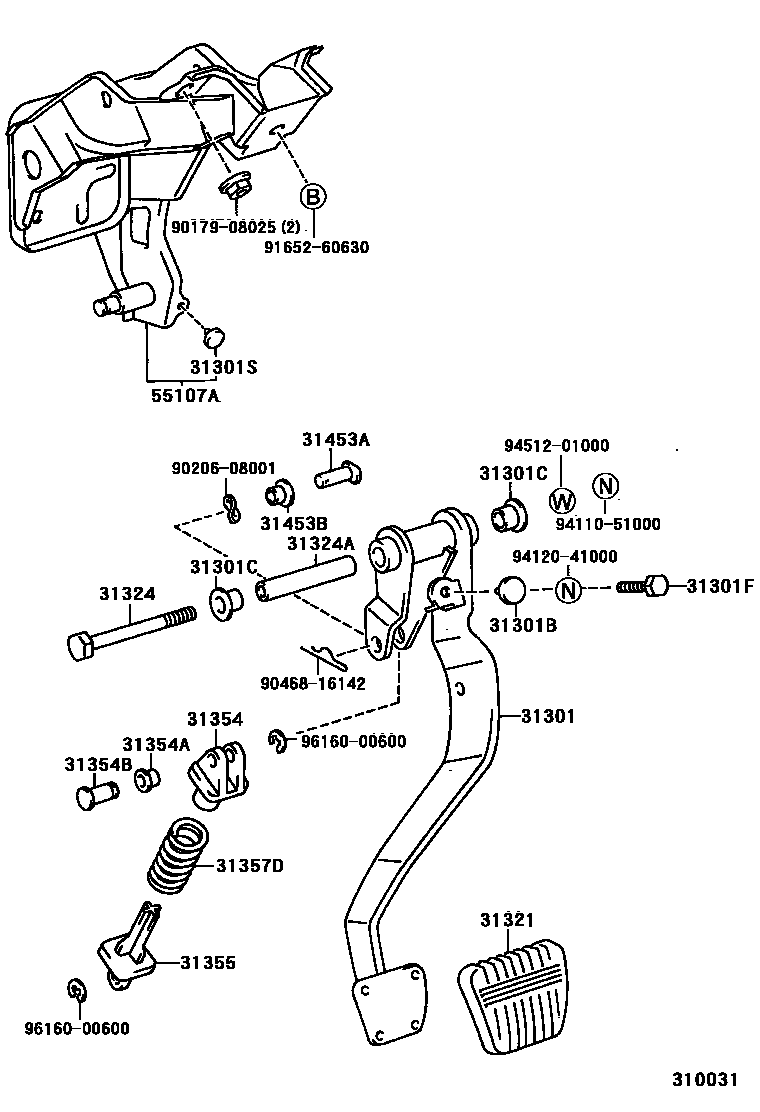

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-20530iST206,207..MTM199402

main31301-20540iST208..MTM199509

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iST20#..MTM199402

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iST20#..MTM199402

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iST20#..MTM199402

31301SCUSHION, NO.2(FOR CLUTCH PEDAL)

main90541-06036iST20#..MTM199402

31321PAD, CLUTCH PEDAL

main31321-14020iST20#..MTM199402

31324SHAFT, CLUTCH PEDAL

main91121-51085iST20#..MTM199402

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10082iST20#..MTM199402

31354SEAT, CLUTCH PEDAL SPRING, UPPER

main31354-20030iST206,207..MTM199402

31354ABUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)

main90386-10019iST206,207..MTM199402

31354BPIN, W/HOLE(FOR CLUTCH PEDAL SPRING SEAT UPPER)

main90249-10127iST206,207..MTM199402

31355SEAT, CLUTCH PEDAL SPRING, LOWER

main31355-20030iST206,207..MTM199402

31357DSPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD)

main90501-40035iST206,207..MTM199402

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08143iST20#..MTM199402

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iST20#..MTM199402

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-20400iST206,207..MTM199402

main55107-20420iST208..MTM199509

9017908025

main90179-08025

9020608001

main90206-08001

9046816142

main90468-16142

9165260630

main91652-60630

9411051000

main94110-51000

9412041000

main94120-41000

9451201000

main94512-01000

9616000600

main96160-00600

24 parts on this diagram · 3 diagrams in section
