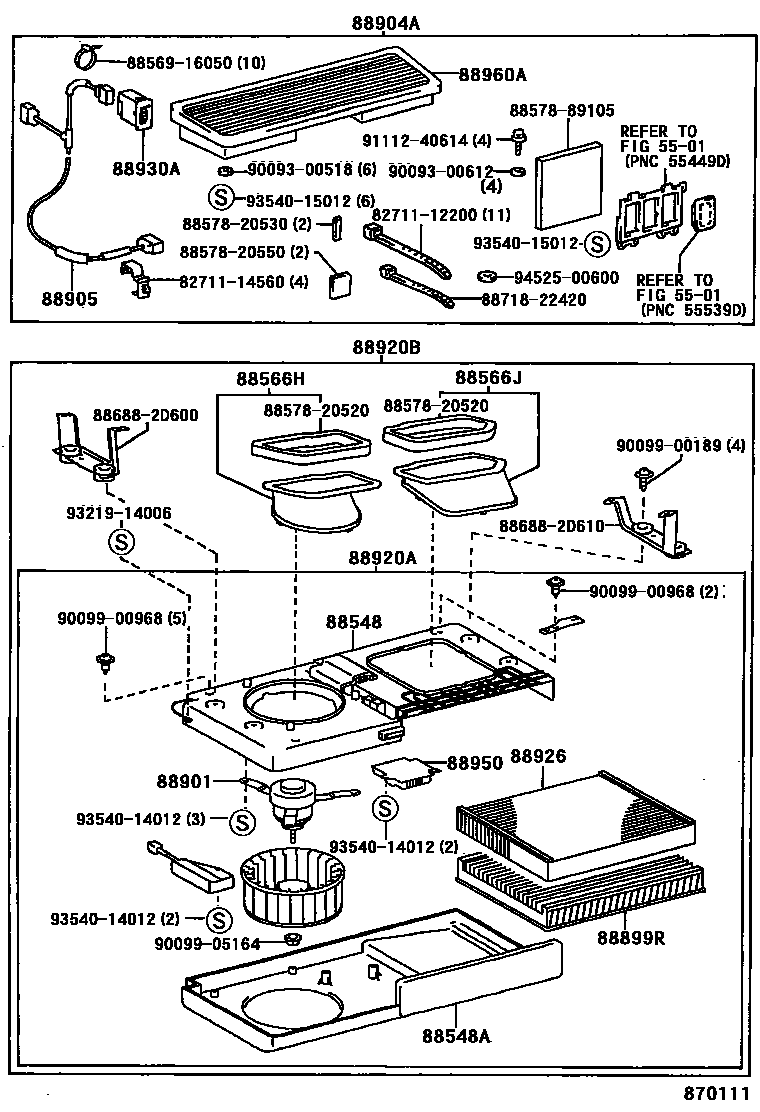

AIR PURIFIER OR ION GENERATOR

5501

88548CASE, AIR PURIFIER NO.1

main88548-12010iST20#199309

88548ACASE, AIR PURIFIER NO.2

main88548-12020iST20#199309

88566HDUCT, AIR, NO.1

main88566-20430iST20#199309

88566JDUCT, AIR, NO.2

main88566-20440iST20#199309

88899RFRAME, AIR PURIFIER

main88899-12080iST20#199309

88901MOTOR SUB-ASSY, AIR PURIFIER

main88901-12010iST20#199309

88904AACCESSORY SUB-ASSY, AIR PURIFIRE

main88904-20230-B0iST20#199309

SHADOW GRAY,TRIM1#

main88904-20230-K0iST200,201,202,203..TRX199309-199508

TAUPE,TRIM9#

88905WIRE SUB-ASSY, AIR PURIFIER, NO.1

main88905-20230iST20#199309

88920APURIFIER ASSY, AIR

main88920-12140iST20#199309

88920BPURIFIER ASSY, AIR, NO.2

main88920-20230iST20#199309

88926FILTER, AIR PURIFIER

main88926-12020iST20#199309

88930ASWITCH ASSY, AIR PURIFIER

main88930-33020iST20#199309

88950AMPLIFIER ASSY, AIR PURIFIER

main88950-12010iST20#199309

88960AGRILLE ASSY, AIR PURIFIER

main88960-20230-B0iST20#199309

SHADOW GRAY,TRIM1#

main88960-20230-K0iST200,201,202,203..TRX199309-199508

TAUPE,TRIM9#

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271114560WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14560

8856916050CLAMP (FOR COOLER RELAY)

main88569-16050

8857820520PAKING, COOLER AIR DUCT

main88578-20520

8857820530PAKING, COOLER AIR DUCT

main88578-20530

8857820550PAKING, COOLER AIR DUCT

main88578-20550

8857889105PAKING, COOLER AIR DUCT

main88578-89105

886882D600BRACKET, COOLER DIAPHRAGM

main88688-2D600

886882D610BRACKET, COOLER DIAPHRAGM

main88688-2D610

8871822420PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-22420

9009300518

main90093-00518

9009300612

main90093-00612

9009900189

main90099-00189

9009900968

main90099-00968

9009905164

main90099-05164

9111240614

main91112-40614

9321914006

main93219-14006

9354014012

main93540-14012

9354015012

main93540-15012

9452500600

main94525-00600

35 parts on this diagram · 1 diagram in section
