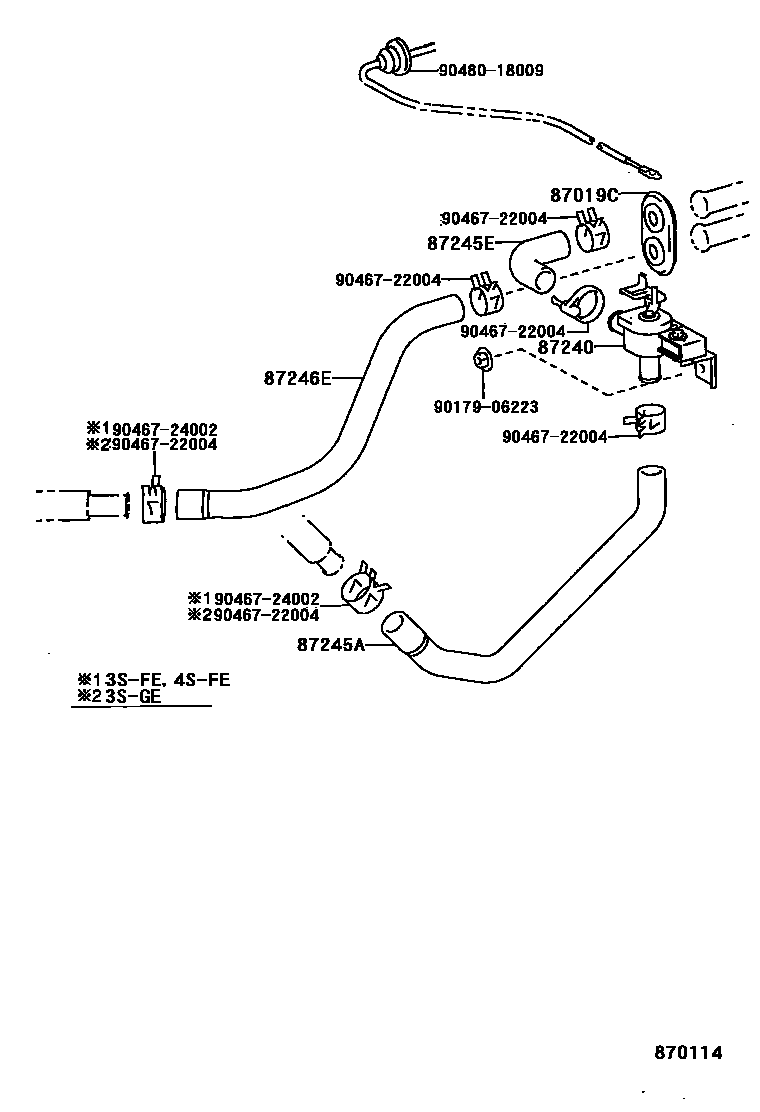

HEATING & AIR CONDITIONING - WATER PIPING

87019CGROMMET, HEATER HOSE

main90480-01405iST20#199309

87240VALVE ASSY, HEATER WATER

main87240-20410iST20#199309

87245AHOSE, HEATER WATER, INLET A

main87245-2D020iST200,201,202,203..TR,TRR,TRX199309-199508

main87245-2D060iST202,205..200GT,GT4WD,TRG,TRG4199309

main87245-2D260iST200,202,203..180E,180G,200E,200G199508

87245EHOSE, HEATER WATER, INLET E

main87245-2B510iST20#199309

87246EHOSE, HEATER WATER, OUTLET E

main87245-2D030iST200,201,202,203..TR,TRR,TRX199309-199508

main87245-2D070iST202,205..200GT,GT4WD,TRG,TRG4199309

main87245-2D270iST200,202,203..180E,180G,200E,200G199508

9017906223

main90179-06223

9046722004

main90467-22004

9046724002

main90467-24002

9048018009

main90480-18009

9 parts on this diagram · 1 diagram in section
