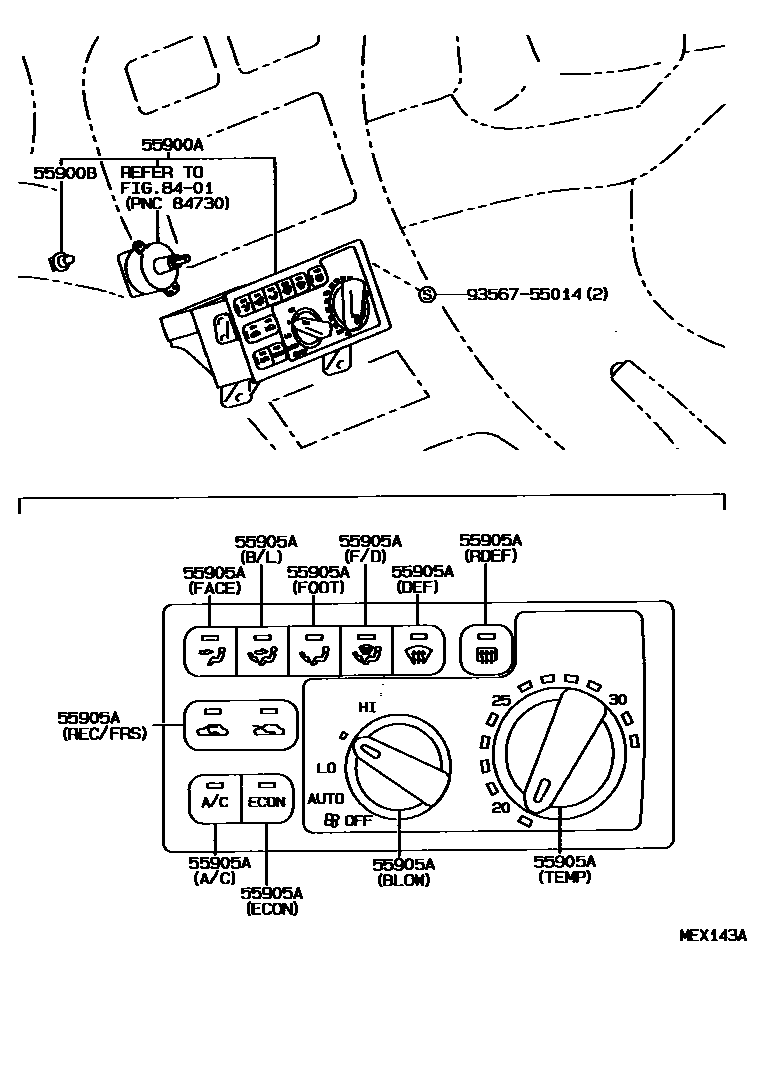

55900ACONTROL & ACCESSORY ASSY, HEATER

main55900-2B190iST20#..TRG,TRG4,TRX199309-199508

main55900-2B210iST200,202,205..180E,180G,200GT,GT4WD199508-199804

main55900-2B220iST200,202,203..TR,TRR199309-199508

main55900-2B320iST202,203..200E,200G199508-199804

55900BBULB, AIR CONDITIONER CONTROL

main84999-10530×2iST20#..200E,200G,TRG,TRG4,TRX199309-199804

main84999-70007×3iST200,202,203,205..180E,180G,200GT,GT4WD,TR,TRR199309-199804

55905AKNOB, HEATER CONTROL

main55905-2B300iST200,202,203,205..180E,180G,200GT,GT4WD,TR,TRR199309-199804

main55905-2B310iST200,202,203,205..180E,180G,200GT,GT4WD,TR,TRR199309-199804

ECON

main55905-2B320iST200,202,203,205..180E,180G,200GT,GT4WD,TR,TRR199309-199804

FACE

main55905-2B330iST200,202,203,205..180E,180G,200GT,GT4WD,TR,TRR199309-199804

BI-LEVEL

main55905-2B340iST200,202,203,205..180E,180G,200GT,GT4WD,TR,TRR199309-199804

FOOT

main55905-2B350iST200,202,203,205..180E,180G,200GT,GT4WD,TR,TRR199309-199804

FOOT/DEF

main55905-2B360iST200,202,203,205..180E,180G,200GT,GT4WD,TR,TRR199309-199804

DEF

main55905-2B370iST200,202,203,205..180E,180G,200GT,GT4WD,TR,TRR199309-199804

main55905-2B380iST200,202,203,205..180E,180G,200GT,GT4WD,TR,TRR199309-199804

main55905-2B390iST200,202,203,205..180E,180G,200GT,GT4WD,TR,TRR199309-199804

BLOW

main55905-2B410iST20#..200E,200G,TRG,TRG4,TRX199309-199804

FACE

main55905-2B420iST20#..200E,200G,TRG,TRG4,TRX199309-199804

BI-LEVEL

main55905-2B430iST20#..200E,200G,TRG,TRG4,TRX199309-199804

FOOT

main55905-2B440iST20#..200E,200G,TRG,TRG4,TRX199309-199804

FOOT/DEF

main55905-2B450iST20#..200E,200G,TRG,TRG4,TRX199309-199804

DEF

main55905-2B460iST20#..200E,200G,TRG,TRG4,TRX199309-199804

main55905-2B470iST20#..200E,200G,TRG,TRG4,TRX199309-199804

main55905-2B480iST20#..200E,200G,TRG,TRG4,TRX199309-199804

ECON

main55905-2B490iST20#..200E,200G,TRG,TRG4,TRX199309-199804

BLOW-LO

main55905-2B500iST20#..200E,200G,TRG,TRG4,TRX199309-199804

BLOW-M1,M2

main55905-2B520iST20#..200E,200G,TRG,TRG4,TRX199309-199804

BLOW-HI

main55905-2B530iST20#..200E,200G,TRG,TRG4,TRX199309-199804

main55905-2B540iST20#..200E,200G,TRG,TRG4,TRX199309-199804

main55905-2B550iST20#..200E,200G,TRG,TRG4,TRX199309-199804

main55905-2B560iST20#..200E,200G,TRG,TRG4,TRX199309-199804

main55905-33030iST200,202,203,205..180E,180G,200GT,GT4WD,TR,TRR199309-199804

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9356755014

main93567-55014

5 parts on this diagram · 5 diagrams in section
