WIRING & CLAMP

0001 1ENGINE ROOM WIRE 0002 1ENGINE WIRE 0003 1ENGINE WIRE 0004 1ENGINE WIRE 0005 1COWL,INSTRUMENT WIRE 0006 1DOOR,ROOF WIRE 0007 1FLOOR,LUGGAGE WIRE 0008 1CABLE BOND 0009 1CLAMP & PROTECTOR 0010 1CLAMP & PROTECTOR 0011 1CONNECTOR

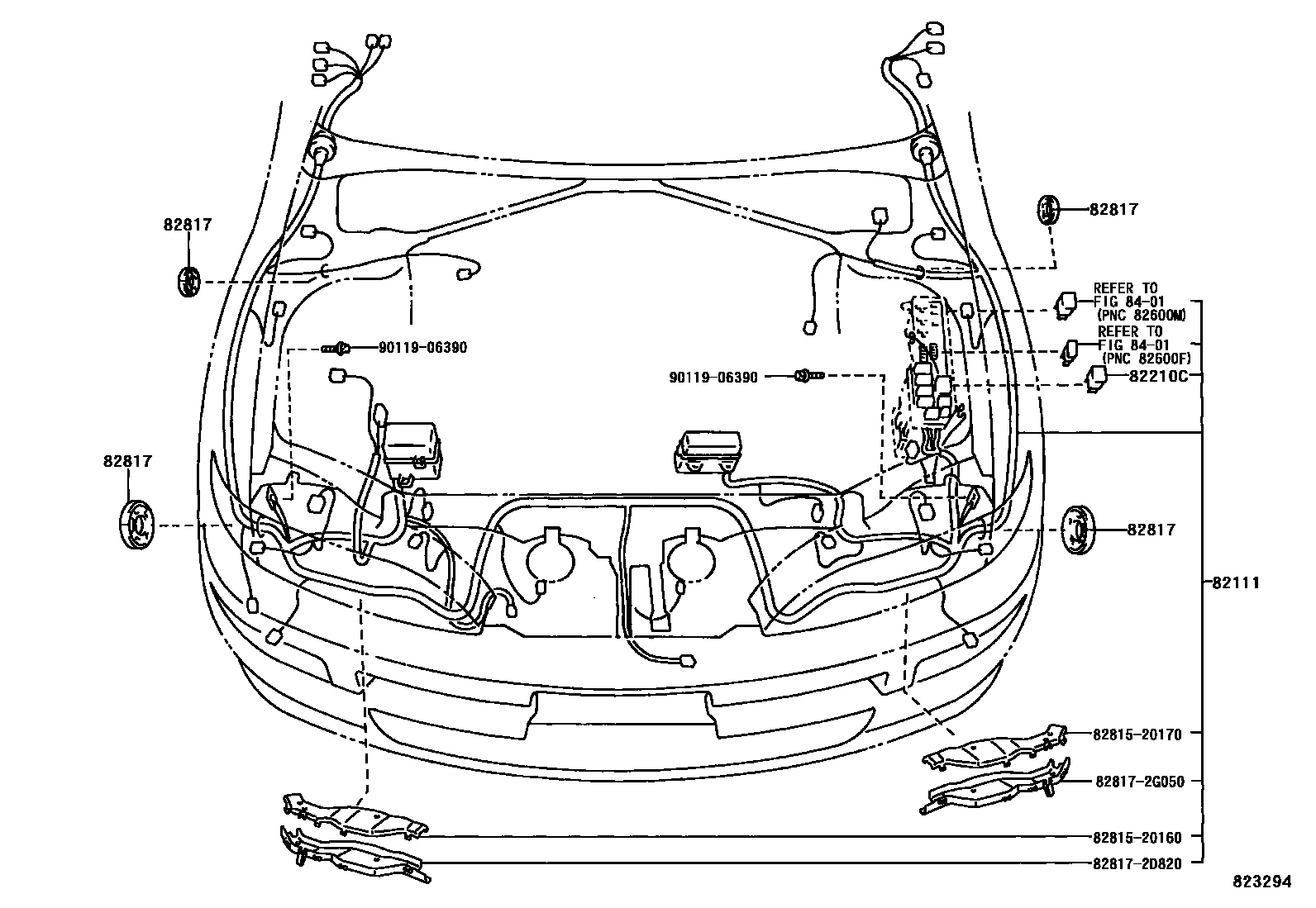

82111WIRE, ENGINE ROOM MAIN

main82111-2H230iST200,202,205199309-199508

main82111-2H240iST201,203199309-199508

main82111-2H250iST200,202,205199309-199508

main82111-2H260iST201,203199309-199508

main82111-2H620iST200,202,205199309-199508

main82111-2L200iST200,202,205199508-199606

main82111-2L210iST203199508-199606

main82111-2L220iST200,202,205199508-199606

main82111-2L221iST200,202,205199606-199711

sub82111-2L222

main82111-2L222iST200,202,205199711

main82111-2L230iST203199508-199606

main82111-2L231iST203199606-199712

main82111-2L240iST200,202,205199508-199606

82210CFUSIBLE LINK

main90982-08189iST20#199309

main90982-08190iST20#199309

main90982-08227iST20#199309

main90982-08246iST20#199309

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-2B730iST20#199309

main82817-2D840iST20#199309

8401

8281520160COVER, WIRING HARNESS PROTECTOR

main82815-20160

8281520170COVER, WIRING HARNESS PROTECTOR

main82815-20170

828172D820PROTECTOR, WIRING HARNESS, NO.1

main82817-2D820

828172G050PROTECTOR, WIRING HARNESS, NO.1

main82817-2G050

9011906390

main90119-06390

9 parts on this diagram · 11 diagrams in section
