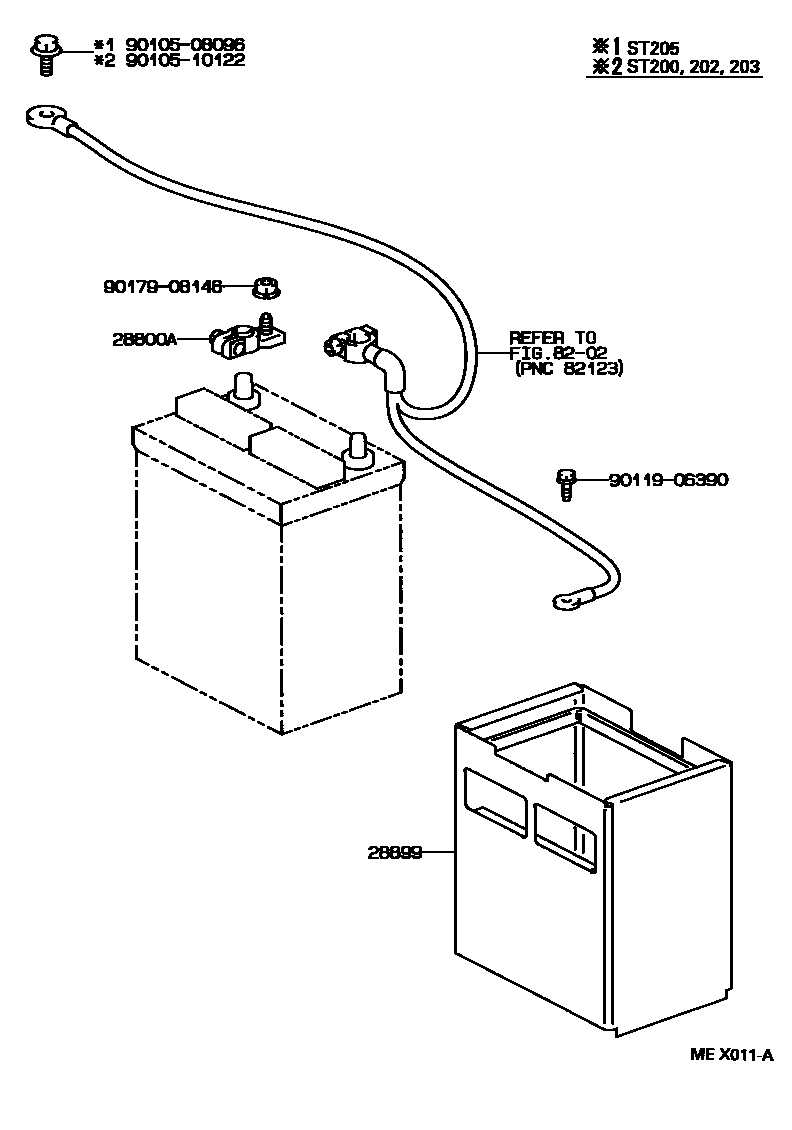

BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05028i3S#,4SFE..ST20#199309-199709

main90982-05034i3S#,4SFE..ST20#199709

28899INSULATOR, BATTERY

main28899-46020i3S#,4SFE..ST20#199601-199712

main28899-74110i3S#,4SFE..ST20#..MTM199309-199508

main28899-74120i3S#,4SFE..ST20#199309-199508

main28899-74150i3S#,4SFE..ST20#..MTM199712

main28899-74160i3S#,4SFE..ST20#199508-199601

8202WIRING & CLAMP

→ Go to FIG 82-02

9010508096

main90105-08096

9010510122

main90105-10122

9011906390

main90119-06390

9017908146

main90179-08146

7 parts on this diagram · 1 diagram in section
