REAR COMBINATION LAMP

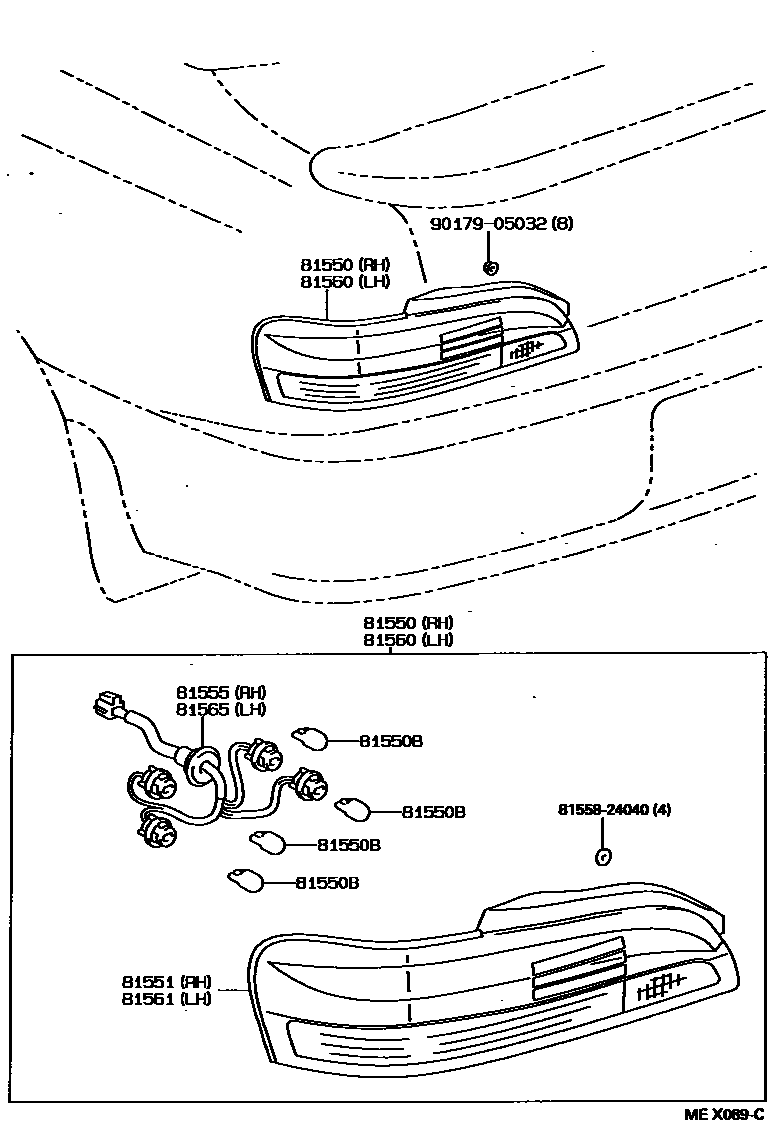

Parts diagram

81550LAMP ASSY, REAR COMBINATION, RH

main81550-2B410i199309-199508

main81550-2B460i199508-199712

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11039×2i199508-199712

main90981-13043×4i199309-199508

main90981-13044×4i199712

81551LENS, REAR COMBINATION LAMP, RH

main81551-2B410i199309-199508

main81551-2B460i199712

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-2B410i199309-199508

main81555-2B460i199508-199712

81560LAMP ASSY, REAR COMBINATION, LH

main81560-2B410i199309-199508

main81560-2B460i199508-199712

81561LENS, REAR COMBINATION LAMP, LH

main81561-2B410i199309-199508

main81561-2B460i199508-199712

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-2B410i199309-199508

main81555-2B460i199508-199712

8155824040SHADE, REAR COMBINATION LAMP, NO.1 RH

main81558-24040

9017905032

main90179-05032

9 parts on this diagram · 1 diagram in section
