E
EPC Data

MUDGUARD & SPOILER

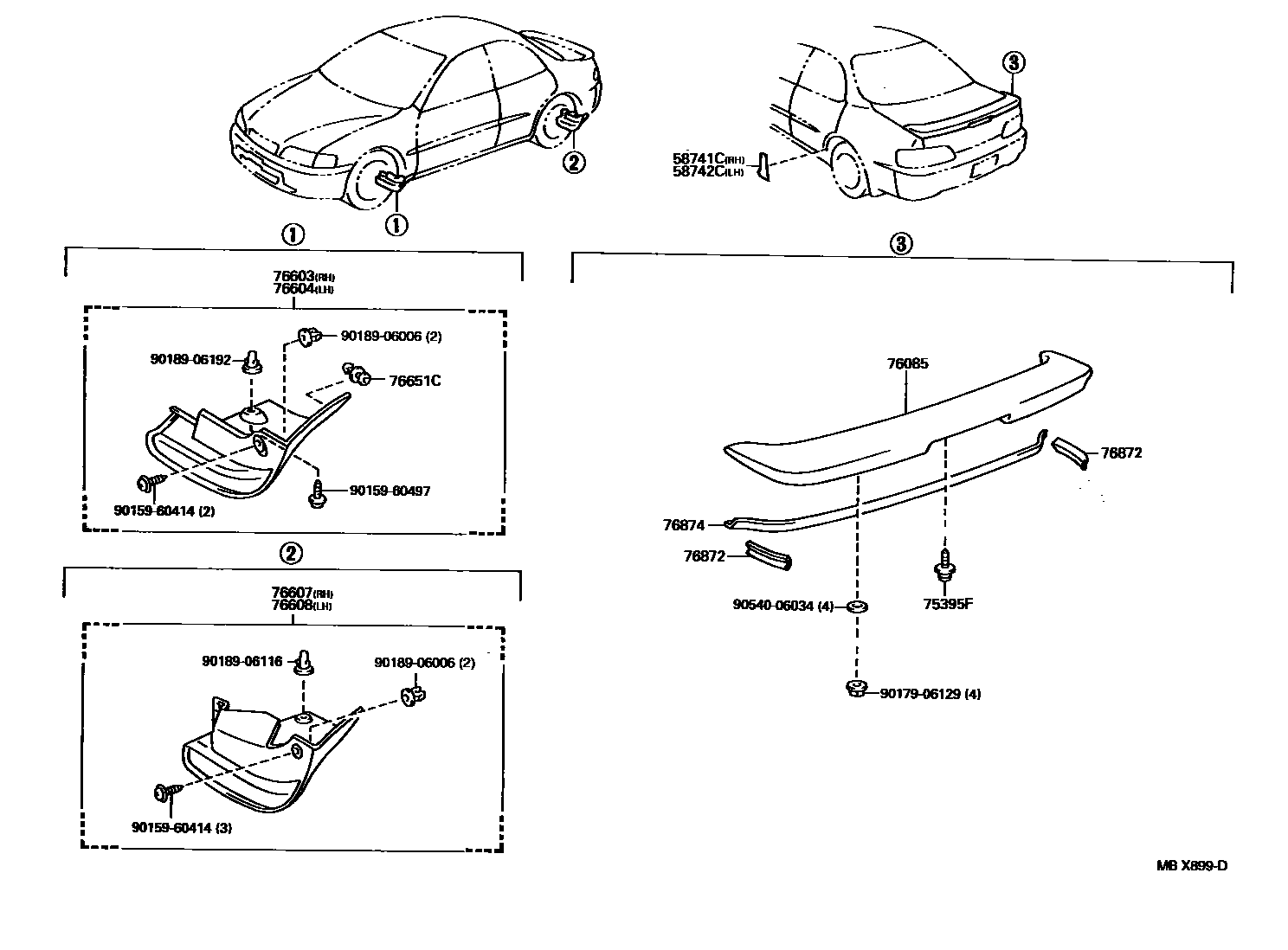

Parts diagram
58741CPROTECTOR, QUARTER PANEL, RH
main58741-20150i199309-199408
main58741-20160i199408
58742CPROTECTOR, QUARTER PANEL, LH
main58742-20140i199309-199408
main58742-20150i199408
75395FCLIP, OUTSIDE MOULDING, NO.1
main75395-12090i199309-199508
main75395-20120×2i199508
76085SPOILER SUB-ASSY, REAR
main76085-20917i199309-199508
main76871-20913i199508
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
main76621-29175-A0i199309-199508
SUPER WHITE 2,040
main76621-29175-A1i199309-199508
WARM GRAY PEARL MICA,046
main76621-29175-B0i199309-199508
LT. GREIGE ME.,1A2
main76621-29175-B1i199406-199503
main76621-29175-C0i199309-199508
BLACK,202
main76621-29175-D0i199309-199508
RED MICA,3K4
main76621-29175-G0i199309-199508
DK. GREEN MICA,6M1
main76621-29195-A0i199508
WHITE PEARL MI,049
main76621-29195-B0i199508
SILVER ME.,199
main76621-29195-C0i199508
BLACK,202
main76621-29195-D0i199508
RED MICA,3K4
main76621-29195-G0i199508
DK. GREEN MICA,6M1
main76621-29195-J0i199508
DK. BLUE M.M.,8L2
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
main76622-29175-A0i199309-199508
SUPER WHITE 2,040
main76622-29175-A1i199309-199508
WARM GRAY PEARL MICA,046
main76622-29175-B0i199309-199508
LT. GREIGE ME.,1A2
main76622-29175-B1i199406-199503
main76622-29175-C0i199309-199508
BLACK,202
main76622-29175-D0i199309-199508
RED MICA,3K4
main76622-29175-G0i199309-199508
DK. GREEN MICA,6M1
main76622-29195-A0i199508
WHITE PEARL MI,049
main76622-29195-B0i199508
SILVER ME.,199
main76622-29195-C0i199508
BLACK,202
main76622-29195-D0i199508
RED MICA,3K4
main76622-29195-G0i199508
DK. GREEN MICA,6M1
main76622-29195-J0i199508
DK.BLUE M.M.,8L2
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
main76625-29205-A0i199309-199508
SUPER WHITE 2,040
main76625-29205-A1i199309-199508
WARM GRAY PEARL MICA,046
main76625-29205-B0i199309-199508
LT. GREIGE ME.,1A2
main76625-29205-B1i199406-199503
main76625-29205-C0i199309-199508
BLACK,202
main76625-29205-D0i199309-199508
RED MICA,3K4
main76625-29205-G0i199309-199508
DK. GREEN MICA,6M1
main76625-29215-A0i199508
WHITE PEARL MI,049
main76625-29215-B0i199508
SILVER ME.,199
main76625-29215-C0i199508
BLACK,202
main76625-29215-D0i199508
RED MICA,3K4
main76625-29215-G0i199508
DK. GREEN MICA,6M1
main76625-29215-J0i199508
DK. BLUE M.M.,8L2
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
main76626-29205-A0i199309-199508
SUPER WHITE 2,040
main76626-29205-A1i199309-199508
WARM GRAY PEARL MICA,046
main76626-29205-B0i199309-199508
LT. GREIGE ME.,1A2
main76626-29205-B1i199406-199503
main76626-29205-C0i199309-199508
BLACK,202
main76626-29205-D0i199309-199508
RED MICA,3K4
main76626-29205-G0i199309-199508
DK. GREEN MICA,6M1
main76626-29215-A0i199508
WHITE PEARL MI,049
main76626-29215-B0i199508
SILVER ME.,199
main76626-29215-C0i199508
BLACK,202
main76626-29215-D0i199508
RED MICA,3K4
main76626-29215-G0i199508
DK. GREEN MICA,6M1
main76626-29215-J0i199508
DK. BLUE M.M.,8L2
76651CRETAINER, FRONT MUDGUARD
main76651-12060×2i199309
76872PROTECTOR, REAR SPOILER, NO.1
main76872-20180×2i199309-199508
sub90999-91054
main76872-20190i199508
76874PROTECTOR, REAR SPOILER, NO.3
main76874-20140i199309-199508
sub90999-91057
main76874-20170i199508
9015960414
main90159-60414
9015960497
main90159-60497
9017906129
main90179-06129
9018906006
main90189-06006
9018906116
main90189-06116
9018906192
main90189-06192
9054006034
main90540-06034

18 parts on this diagram · 3 diagrams in section
