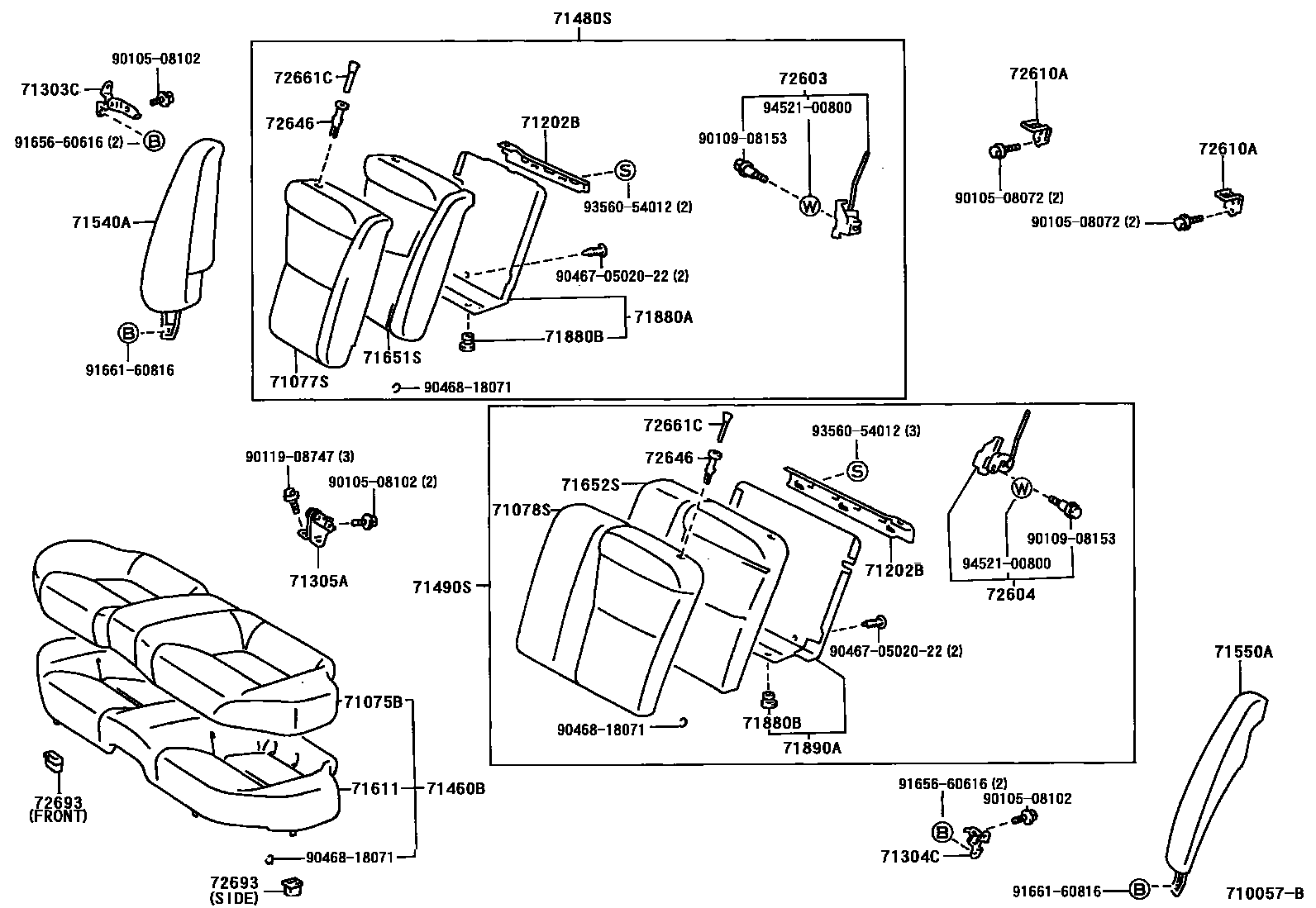

REAR SEAT & SEAT TRACK

0001 1 0003 1��(�-����)

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71065-2B450-B0iST200..TR199309-199508

SHAD0W GRAY,TRIM1#

main71065-2B470-B0iST202,203,205..TRG,TRG4,TRR199309-199503

SHAD0W GRAY,TRIM1#

main71065-2B471-B0iST202,203,205..TRG,TRG4,TRR199503-199508

SHADOW GRAY,TRIM1#

main71065-2B480-B0iST200,201,202,203..TRX199309-199412

SHAD0W GRAY,TRIM1#

main71065-2B480-K0iST200,201,202,203..TRX199309-199412

TAUPE,TRIM9#

main71065-2B481-B0iST200,202,203..TRX199412-199508

SHADOW GRAY,TRIM1#

main71065-2B481-K0iST200,202,203..TRX199412-199508

TAUPE,TRIM9#

main71065-2B620-B0iST200,202,205..180E,200E,GT4WD199508

SHADOW GRAY,TRIM1#

main71065-2B630-B0iST200,202,203..180G,200G; ST205199508

main71065-2B640-B0iST202..200GT199508

SHADOW GRAY,TRIM1#

main71065-2B650-B0iST200..180E199606-199804

main71065-2B750-C0iST202..200GT199511-199603

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-2G310-B0iST200..TR199309-199412

SHAD0W GRAY,TRIM1#

main71077-2G311-B0iST200..TR199412-199508

SHADOW GRAY,TRIM1#

main71077-2G330-B0iST202,203,205..TRG,TRG4,TRR199309-199412

SHAD0W GRAY,TRIM1#

main71077-2G332-B0iST202,203,205..TRG,TRG4,TRR199412-199508

SHADOW GRAY,TRIM1#

main71077-2G340-B0iST200,201,202,203..TRX199309-199412

SHAD0W GRAY,TRIM1#

main71077-2G340-K0iST200,201,202,203..TRX199309-199412

TAUPE,TRIM9#

main71077-2G341-B0iST200,202,203..TRX199412-199508

SHADOW GRAY,TRIM1#

main71077-2G341-K0iST200,202,203..TRX199412-199508

TAUPE,TRIM9#

main71077-2G460-B0iST200,202,205..180E,200E,GT4WD199508

SHADOW GRAY,TRIM1#

main71077-2G470-B0iST200,202,203..180G,200G; ST205199508

main71077-2G480-B0iST202..200GT199508

SHADOW GRAY,TRIM1#

main71077-2G490-B0iST200..180E199606-199804

main71077-2G590-C0iST202..200GT199511-199603

BLACK,TRIM1#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-2B250-B0iST200..TR199309-199412

SHAD0W GRAY,TRIM1#

main71078-2B251-B0iST200..TR199412-199508

SHADOW GRAY,TRIM1#

main71078-2B270-B0iST202,203,205..TRG,TRG4,TRR199309-199412

SHAD0W GRAY,TRIM1#

main71078-2B271-B0iST202,203,205..TRG,TRG4,TRR199412-199503

SHADOW GRAY,TRIM1#

main71078-2B272-B0iST202,203,205..TRG,TRG4,TRR199503-199508

SHADOW GRAY,TRIM1#

main71078-2B280-B0iST200,201,202,203..TRX199309-199412

SHAD0W GRAY,TRIM1#

main71078-2B280-K0iST200,201,202,203..TRX199309-199412

TAUPE,TRIM9#

main71078-2B281-B0iST200,202,203..TRX199412-199508

SHADOW GRAY,TRIM1#

main71078-2B281-K0iST200,202,203..TRX199412-199508

TAUPE,TRIM9#

main71078-2B400-B0iST200,202,205..180E,200E,GT4WD199508

SHADOW GRAY,TRIM1#

main71078-2B410-B0iST200,202,203..180G,200G; ST205199508

main71078-2B420-B0iST202..200GT199508

SHADOW GRAY,TRIM1#

main71078-2B430-B0iST200..180E199606-199804

main71078-2B490-C0iST202..200GT199511-199603

71202BPANEL, REAR SEATBACK

main71202-20020iST20#199309

main71203-20030iST20#199309

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-20120iST20#199309

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71304-20110iST20#199309

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-20190iST20#199309

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71560-2B590-B0iST200..TR199309-199508

SHAD0W GRAY,TRIM1#

main71560-2B610-B0iST202,203..TRG,TRR199309-199508

SHAD0W GRAY,TRIM1#

main71560-2B620-B0iST205199405-199508

SHAD0W GRAY,TRIM1#

main71560-2B630-B0iST200,201,202,203..TRX199309-199412

***,SHAD0W GRAY,TRIM1#

main71560-2B630-K0iST200,201,202,203..TRX199309-199412

***,TAUPE,TRIM9#

main71560-2B631-B0iST200,202,203..TRX199412-199508

***,SHADOW GRAY,TRIM1#

main71560-2B631-K0iST200,202,203..TRX199412-199508

***,TAUPE,TRIM9#

main71560-2B780-B0iST200,202..180E,200E199508

***,SHADOW GRAY,TRIM1#

main71560-2B790-B0iST200,202,203..180G,200G199508

***,SHADOW GRAY,TRIM1#

main71560-2B800-B0iST205199508

***,SHADOW GRAY,TRIM1#

main71560-2B810-B0iST202..200GT199508

***,SHADOW GRAY,TRIM1#

main71560-2B820-B0iST200..180E199606-199804

main71560-2B830-B0iST205199508

71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

main71480-2G590-B0iST200..TR199407-199412

main71480-2G660-B0iST202,203,205..TRG,TRG4,TRR199407-199412

main71480-2G780-B0iST200..TR199407-199412

main71480-2G781-B0iST200..TR199412-199508

main71480-2G800-B0iST202,203,205..TRG,TRG4,TRR199309-199407

SHAD0W GRAY,TRIM1#

main71480-2G801-B0iST202,203,205..TRG,TRG4,TRR199412-199508

main71480-2G810-B0iST200,201,202,203..TRX199309-199412

***,SHAD0W GRAY,TRIM1#

main71480-2G810-K0iST200,201,202,203..TRX199309-199412

***,TAUPE,TRIM9#

main71480-2G811-B0iST200,202,203..TRX199412-199508

***,SHADOW GRAY,TRIM1#

main71480-2G811-K0iST200,202,203..TRX199412-199508

***,TAUPE,TRIM9#

main71480-2H110-B0iST200,202,205..180E,200E,GT4WD199508

main71480-2H120-B0iST200,202,205..180E,200E,GT4WD199508

main71480-2H130-B0iST200,202,203..180G,200G; ST205199508

main71480-2H140-B0iST200,202,203..180G,200G; ST205199508

main71480-2H150-B0iST202..200GT199508

main71480-2H160-B0iST202..200GT199508

main71480-2H190-B0iST200..180E199606-199804

71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

main71490-2B450-B0iST200..TR199407-199412

main71490-2B520-B0iST202,203,205..TRG,TRG4,TRR199407-199412

main71490-2B600-B0iST200..TR199309-199407

SHAD0W GRAY,TRIM1#

main71490-2B601-B0iST200..TR199412-199508

main71490-2B620-B0iST202,203,205..TRG,TRG4,TRR199309-199407

SHAD0W GRAY,TRIM1#

main71490-2B621-B0iST202,203,205..TRG,TRG4,TRR199412-199508

main71490-2B630-B0iST200,201,202,203..TRX199309-199412

***,SHAD0W GRAY,TRIM1#

main71490-2B630-K0iST200,201,202,203..TRX199309-199412

***,TAUPE,TRIM9#

main71490-2B631-B0iST200,202,203..TRX199412-199508

***,SHADOW GRAY,TRIM1#

main71490-2B631-K0iST200,202,203..TRX199412-199508

***,TAUPE,TRIM9#

main71490-2D020-B0iST200,202,205..180E,200E,GT4WD199508

main71490-2D030-B0iST200,202,205..180E,200E,GT4WD199508

main71490-2D040-B0iST200,202,203..180G,200G; ST205199508

main71490-2D050-B0iST200,202,203..180G,200G; ST205199508

main71490-2D060-B0iST202..200GT199508

main71490-2D070-B0iST202..200GT199508

main71490-2D100-B0iST200..180E199606-199804

71540ABACK ASSY, REAR SIDE SEAT, RH

main71540-20240-B0iST20#..180E,180G,200E,200G,GT4WD199508

SHADOW GRAY,TRIM1#

main71540-20280-B0iST200..TR199309-199508

SHAD0W GRAY,TRIM1#

main71540-20300-B0iST202,203,205..TRG,TRG4,TRR199309-199508

SHADOW GRAY,TRIM1#

main71540-20310-B0iST200,201,202,203..TRX199309-199508

***,SHAD0W GRAY,TRIM1#

main71540-20310-K0iST200,201,202,203..TRX199309-199508

***,TAUPE,TRIM9#

main71540-20320-B0iST202..200GT199508

SHADOW GRAY,TRIM1#

main71540-20340-B0iST200..180E199606-199804

main71540-20400-C0iST202..200GT199511-199603

71550ABACK ASSY, REAR SIDE SEAT, LH

main71550-20240-B0iST20#..180E,180G,200E,200G,GT4WD199508

SHADOW GRAY,TRIM1#

main71550-20280-B0iST200..TR199309-199508

SHAD0W GRAY,TRIM1#

main71550-20300-B0iST202,203,205..TRG,TRG4,TRR199309-199508

SHADOW GRAY,TRIM1#

main71550-20310-B0iST200,201,202,203..TRX199309-199508

***,SHAD0W GRAY,TRIM1#

main71550-20310-K0iST200,201,202,203..TRX199309-199508

***,TAUPE,TRIM9#

main71550-20320-B0iST202..200GT199508

SHADOW GRAY,TRIM1#

main71550-20340-B0iST200..TR199504-199508

main71550-20400-C0iST202..200GT199511-199603

71611PAD, REAR SEAT CUSHION

main71503-20090iST200,201,202,203199309

main71503-20100iST205199405

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71507-20250×2iST20#199508

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71508-20060iST200,201,202,203..180G,200G,200GT,TRG,TRR,TRX199309

main71508-20070iST200,202,205..180E,200E,GT4WD,TR199309

71880ACARPET ASSY, REAR SEATBACK BOARD, RH

main71880-20290-C0iST200,201,202,203..TRX199309-199508

BLACK,TRIM1#,9#

71880BCLIP(FOR REAR SEATBACK CARPET)

main90467-05083×2iST20#199309

71890ACARPET ASSY, REAR SEATBACK BOARD, LH

main71890-20220-C0iST200,201,202,203..TRX199309-199508

BLACK,TRIM1#,9#

72603LOCK SUB-ASSY, REAR SEATBACK, RH

main72630-20200iST20#199309

72604LOCK SUB-ASSY, REAR SEATBACK, LH

main72640-20190iST20#199309

72610ASTRIKER ASSY, REAR SEATBACK LOCK

main72610-20040×2iST20#199309

72646GROMMET, REAR SEATBACK STOP BUTTON

main72646-14030-K0×2iST200,201,202,203..TRX199309-199508

TAUPE,TRIM9#

main72646-14030-P0×2iST20#199309-199407

SHADOW GRAY,TRIM1#

72661CBUTTON, REAR SEATBACK LOCK RELEASE

main72661-12010-K0×2iST200,201,202,203..TRX199309-199508

TAUPE,TRIM9#

main72661-12010-P0×2iST20#199508-199804

SHADOW GRAY,TRIM1#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-20060×2iST20#199309

main72693-32020×2iST20#199309

9010508072

main90105-08072

9010508102

main90105-08102

9010908153

main90109-08153

9011908747

main90119-08747

904670502022

main90467-0502022

9046818071

main90468-18071

9165660616

main91656-60616

9166160816

main91661-60816

9356054012

main93560-54012

9452100800

main94521-00800

34 parts on this diagram · 2 diagrams in section
