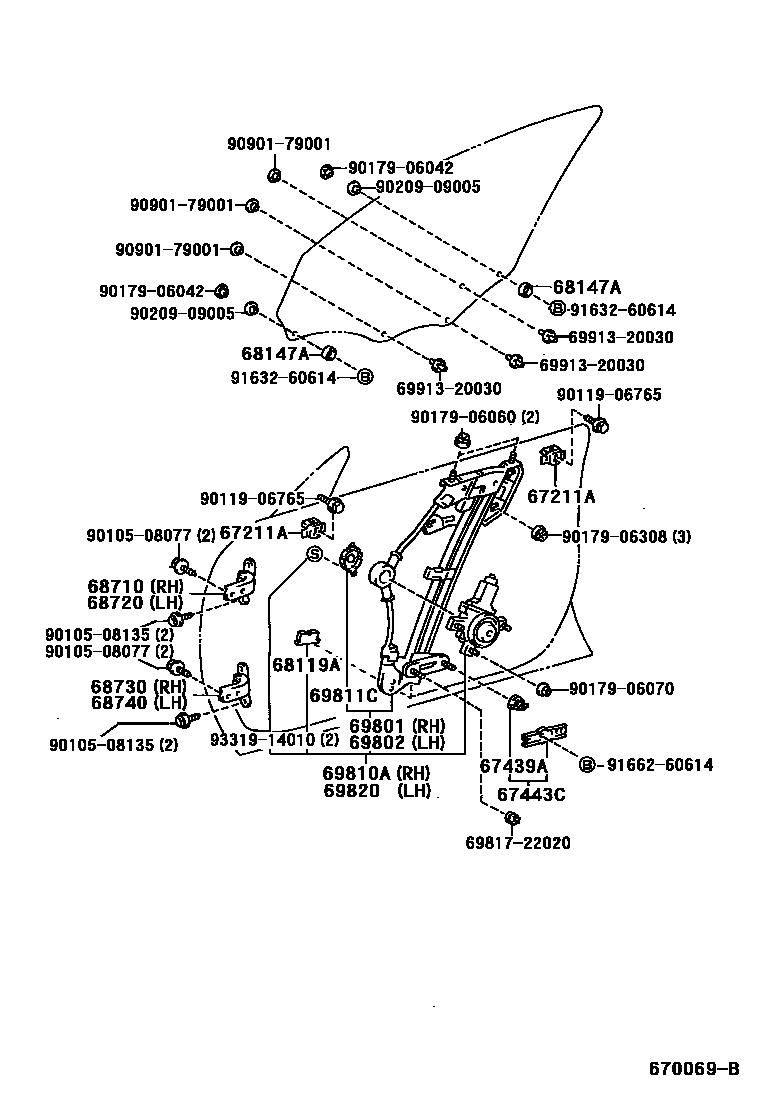

FRONT DOOR WINDOW REGULATOR & HINGE

67211ASTOP, FRONT DOOR WINDOW, UPPER

main67211-22040×4iST20#199309

67439ASNAP, FRONT DOOR WINDOW GUIDE

main67439-12020×2iST20#199309

67443CPLATE, FRONT DOOR WINDOW GUIDE, LOWER

main67443-20080×2iST20#199309

68119ACUSHION, WINDOW REGULATOR DOOR GLASS BRACKET, NO.1

main69887-20030×2iST20#199309

68147ASTOP, FRONT DOOR GLASS, UPPER

main68147-20040×4iST20#199309

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12130iST20#199309-199509

main68710-12150iST20#199509

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12130iST20#199309-199509

main68720-12150iST20#199509

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12090iST20#199309-199509

main68730-12110iST20#199509

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12090iST20#199309-199509

main68740-12110iST20#199509

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-20250iST20#199309-199409

main69801-20251iST20#199409

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-20270iST20#199309-199409

main69802-20271iST20#199409

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-20350iST20#199309

69811CPLATE, FRONT DOOR POWER WINDOW REGULATOR BASE

main69813-20050×2iST20#199409-199501

main69813-32030×2iST20#199309-199409

main69814-20050iST20#199501

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-20370iST20#199309

6981722020PLATE, QUARTER WINDOW REGULATOR BASE, RH

main69817-22020

6991320030BOLT, FRONT DOOR GLASS SETTING

main69913-20030

9010508077

main90105-08077

9010508135

main90105-08135

9011906765

main90119-06765

9017906042

main90179-06042

9017906060

main90179-06060

9017906070

main90179-06070

9017906308

main90179-06308

9020909005

main90209-09005

9090179001

main90901-79001

9163260614

main91632-60614

9166260614

main91662-60614

9331914010

main93319-14010

28 parts on this diagram · 1 diagram in section
