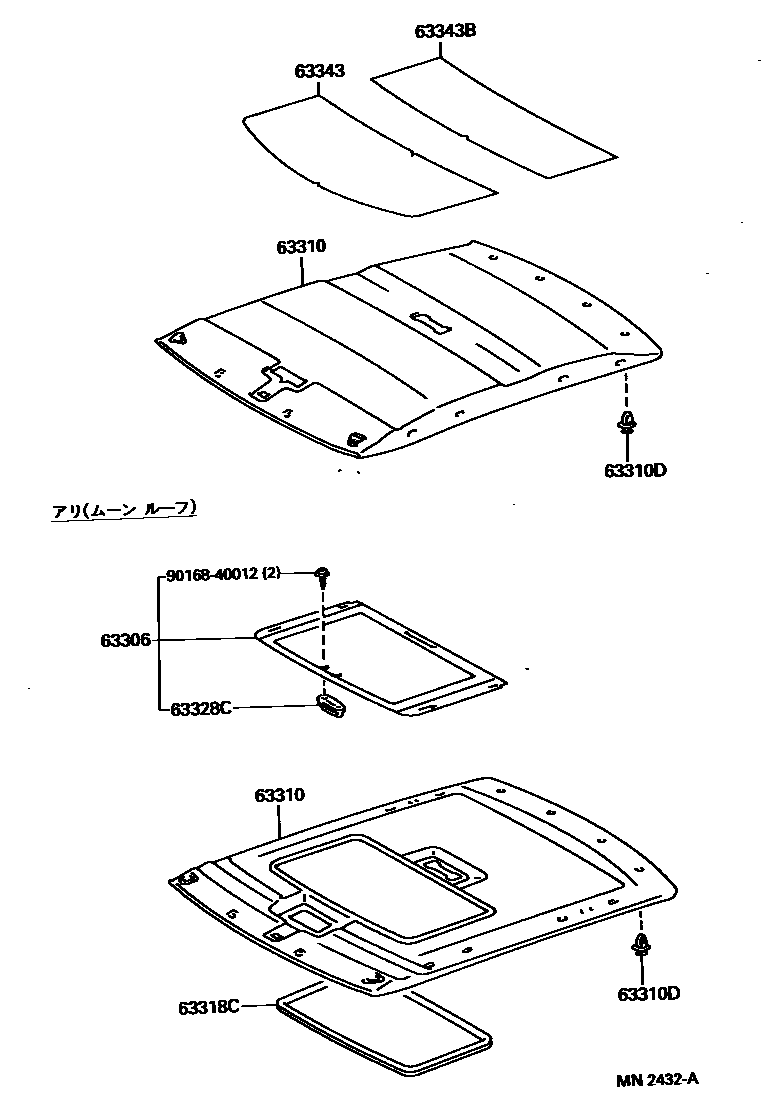

ROOF HEADLINING & SILENCER PAD

63306TRIM SUB-ASSY, SUNSHADE

main63306-20060-B0iST20#..TRG,TRG4,TRR,TRX199309-199508

IVORY,TRIM1#

main63306-20060-B2iST20#199508

LT. GRAY,TRIM1#

main63306-20060-K0iST200,201,202,203..TRX199309-199508

TAUPE,TRIM9#

63310HEADLINING ASSY, ROOF

main63310-2B520-B0iST20#199309-199508

SHADOW GRAY,TRIM1#

main63310-2B520-B1iST20#199508

LT. GRAY,TRIM1#

main63310-2B520-K0iST200,201,202,203..TRX199309-199508

TAUPE,TRIM9#

main63310-2B530-B0iST20#..TRG,TRG4,TRR,TRX199309-199508

main63310-2B530-B1iST20#199508

main63310-2B530-K0iST200,201,202,203..TRX199309-199508

63310DCLIP, ROOF HEADLINING

main90467-09126×4iST20#199309

63318CMOULDING, SUN ROOF OPENING TRIM

main63318-20130-B1iST20#..TRG,TRG4,TRR,TRX199309-199508

main63318-20130-B3iST20#199508

main63318-20130-K1iST200,201,202,203..TRX199309-199508

63328CKNOB, SUNSHADE TRIM

main63328-33010-B1iST20#..TRG,TRG4,TRR,TRX199309-199508

SHADOW GRAY,TRIM1#

main63328-33010-B5iST20#199508

LT.GRAY,TRIM1#

main63328-33010-K0iST200,201,202,203..TRX199309-199508

LIGHT TAUPE,TRIM9#

63343PAD, ROOF SILENCER, NO.3

main63343-32030iST20#199309-199409

main63357-90B05iST20#199409

63343BPAD, ROOF SILENCER, REAR

main63343-12050iST20#199309-199409

main63357-90B05iST20#199409

9016840012

main90168-40012

8 parts on this diagram · 1 diagram in section
