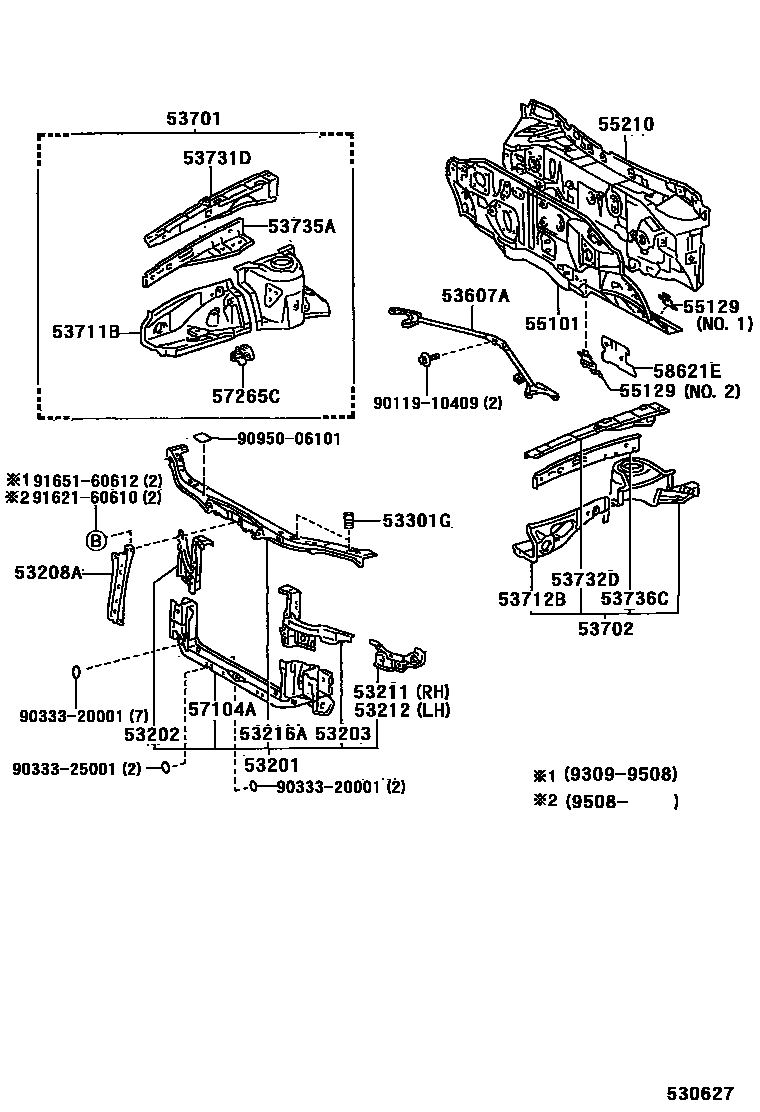

FRONT FENDER APRON & DASH PANEL

53201SUPPORT SUB-ASSY, RADIATOR

main53201-20680iST200,201,202,203199309

main53201-20700iST205199405

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-20130iST20#199309

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-20210iST20#199309

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-20090iST20#199309

53211SUPPORT, RADIATOR, RH

main53211-20240iST20#199309

53212SUPPORT, RADIATOR, LH

main53212-20240iST20#199309

53216ASUPPORT, RADIATOR, UPPER

main53216-20170iST200,201,202,203199309

main53216-20200iST205199405

53301GCUSHION, HOOD BUMPER

main90541-15020×4iST20#199409

main90541-15111×4iST20#199309-199409

53607ABRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER

main53607-20050iST202,203,205199309

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-20760iST20#199309

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-20730iST20#199309

53711BAPRON, FRONT FENDER, FRONT RH

main53711-20901iST20#199309

53712BAPRON, FRONT FENDER, FRONT LH

main53712-20310iST20#199309

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-20110iST20#199309

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-20110iST20#199309

53735AMEMBER, FRONT APRON TO COWL SIDE, LOWER RH

main53735-20070iST20#199309

53736CMEMBER, FRONT APRON TO COWL SIDE, LOWER LH

main53736-20090iST20#199309

55101PANEL SUB-ASSY, DASH

main55101-2B550iST20#..MTM199309

main55101-2B560iST20#..ATM199309

55129COVER, DASH PANEL HOLE

main55129-20020×2iST20#199508

main55139-20010×2iST20#199508

55210INSULATOR ASSY, DASH PANEL

main55210-20250iST20#199309-199501

main55210-20251iST20#199501

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-20120iST20#199309

57265CBRACKET, ENGINE MOUNTING, RH

main57265-20120iST20#199309

58621EPAD, FRONT FLOOR SILENCER

main58621-20040iST20#199502

9011910409

main90119-10409

9033320001

main90333-20001

9033325001

main90333-25001

9095006101

main90950-06101

9162160610

main91621-60610

9165160612

main91651-60612

29 parts on this diagram · 1 diagram in section
