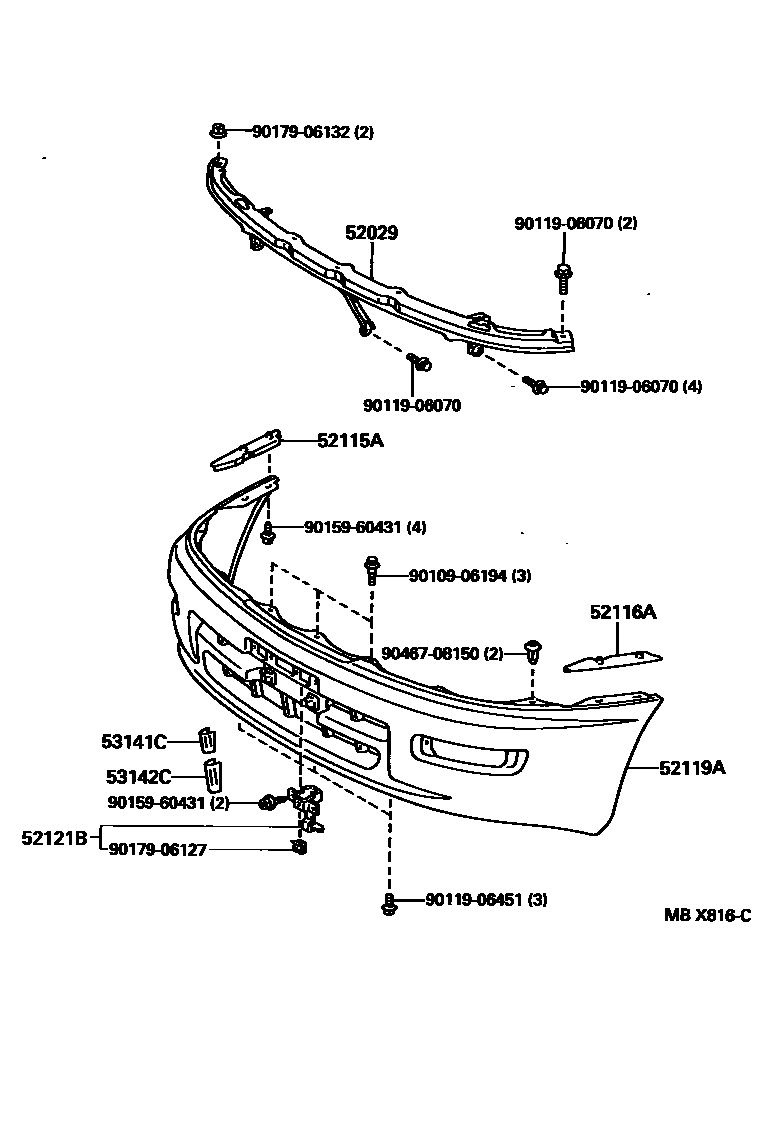

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-20070iST20#199309

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-20350iST20#199309

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-20250iST20#199309

52119ACOVER, FRONT BUMPER

main52119-2B230-A0iST20#199309-199508

SUPER WHITE 2,040

main52119-2B230-A1iST20#199309-199508

WARM GRAY PEARL MICA,046

main52119-2B230-B0iST20#199309-199508

LT. GREIGE ME.,1A2

main52119-2B230-B1iST200,202..TRX199406-199503

main52119-2B230-C0iST20#199309-199508

BLACK,202

main52119-2B230-D0iST20#199309-199508

RED MICA,3K4

main52119-2B230-G0iST20#199309-199508

DK. GREEN MICA,6M1

main52119-2B300-A0iST20#199508

WHITE PM,049

main52119-2B300-B0iST20#199508

SILVER ME,199

main52119-2B300-C0iST20#199508

BLACK,202

main52119-2B300-D0iST20#199508

RED MM,3K4

main52119-2B300-G0iST20#199508

DK GREEN MICA,6M1

main52119-2B300-J0iST20#199508

DK.BLUE M.M.,8L2

52121BBRACKET, FRONT LICENCE PLATE MOUNTING

main52121-20130×2iST20#199309

53141CGARNISH, RADIATOR GRILLE

main53141-20090×2iST20#199309-199508

main53141-20120iST20#199508

53142CGARNISH, RADIATOR GRILLE, NO.2

main53142-20050×2iST20#199309-199508

9010906194

main90109-06194

9011906070

main90119-06070

9011906451

main90119-06451

9015960431

main90159-60431

9017906127

main90179-06127

9017906132

main90179-06132

9046708150

main90467-08150

14 parts on this diagram · 2 diagrams in section
