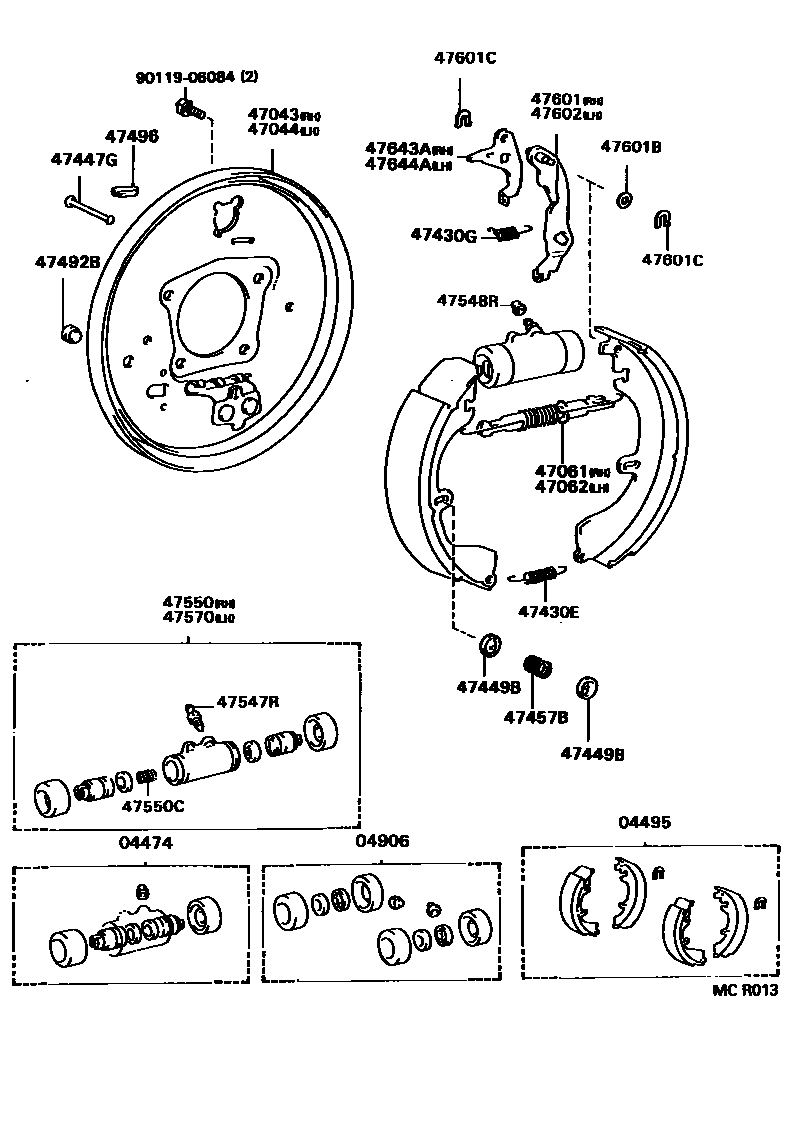

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-10032iST200,201199309

sub04474-63020

04495SHOE KIT, REAR BRAKE

main04495-12220iST200,201199309

sub04495-12250

main04497-12120iST200,201199309

04906CUP KIT, REAR WHEEL CYLINDER

main04906-10021iST200,201199309

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-32010iST200,201199309

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-32010iST200,201199309

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-20020iST200,201199309

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-20020iST200,201199309

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18034iST200,201199309

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12036iST200,201199309

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-30010iST200,201199309

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30030iST200,201199309

47457BSPRING, COMPRESSION(FOR REAR SHOE HOLD DOWN SPRING PIN)

main90501-18017iST200,201199309

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-32010iST200,201199309

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iST200,201199309

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iST200199505

main47547-22020iST200,201199309-199505

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iST200,201199309

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-20150iST200199505

main47550-20180iST200,201199309-199505

sub47550-20150

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-07006iST200,201199309

sub90029-60014

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-20060iST200199505

main47570-20080iST200,201199309-199505

sub47570-20060

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-32010iST200,201199309

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150iST200,201199309

main90564-08151iST200,201199309

main90564-08152iST200,201199309

main90564-08172iST200,201199309

main90564-08173iST200,201199309

main90564-08174iST200,201199309

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iST200,201199309

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-32010iST200,201199309

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-32010iST200,201199309

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-32010iST200,201199309

9011906084

main90119-06084

26 parts on this diagram · 1 diagram in section
