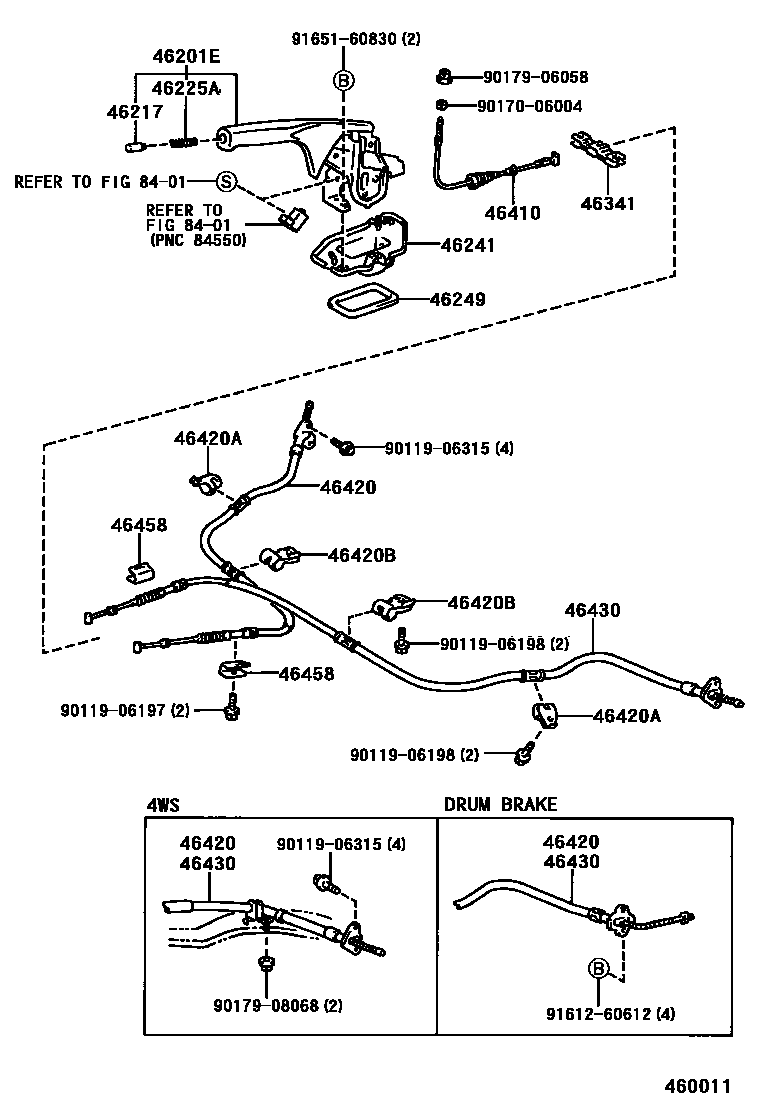

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-20310-C0iST200,201,202,203..TRX199309-199508

BLACK,TRIM1#,9#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-20040-C0iST200,201,202,203..TRX199309-199508

BLACK,TRIM1#,9#

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10069iST20#199309

46241BOOT, PARKING BRAKE LEVER

main46241-20140iST20#199309-199506

main46241-20160iST20#199506

46249SHIELD, PARKING BRAKE HOLE

main46249-20070iST20#199309

46341EQUALIZER, PARKING BRAKE

main46341-24010iST20#199309

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-20420iST20#199309

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-20410iST200199309

main46420-20420iST205199405

main46420-20430iST201199309-199410

main46420-20440iST202199309

main46420-20450iST203199309-199712

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01554iST205199405

main90949-01555iST205199405

main90949-01746×2iST200,202199309

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01552×2iST200,201,202,203199309

main90949-01556iST205199405

main90949-01557iST205199405

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-20490iST200199309

main46430-20500iST205199405

main46430-20510iST201199309-199410

main46430-20520iST202199309

main46430-20530iST203199309-199712

46458RETAINER, CABLE

main46458-28010×2iST20#199309

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906197

main90119-06197

9011906198

main90119-06198

9011906315

main90119-06315

9017006004

main90170-06004

9017906058

main90179-06058

9017908068

main90179-08068

9161260612

main91612-60612

9165160830

main91651-60830

21 parts on this diagram · 2 diagrams in section
