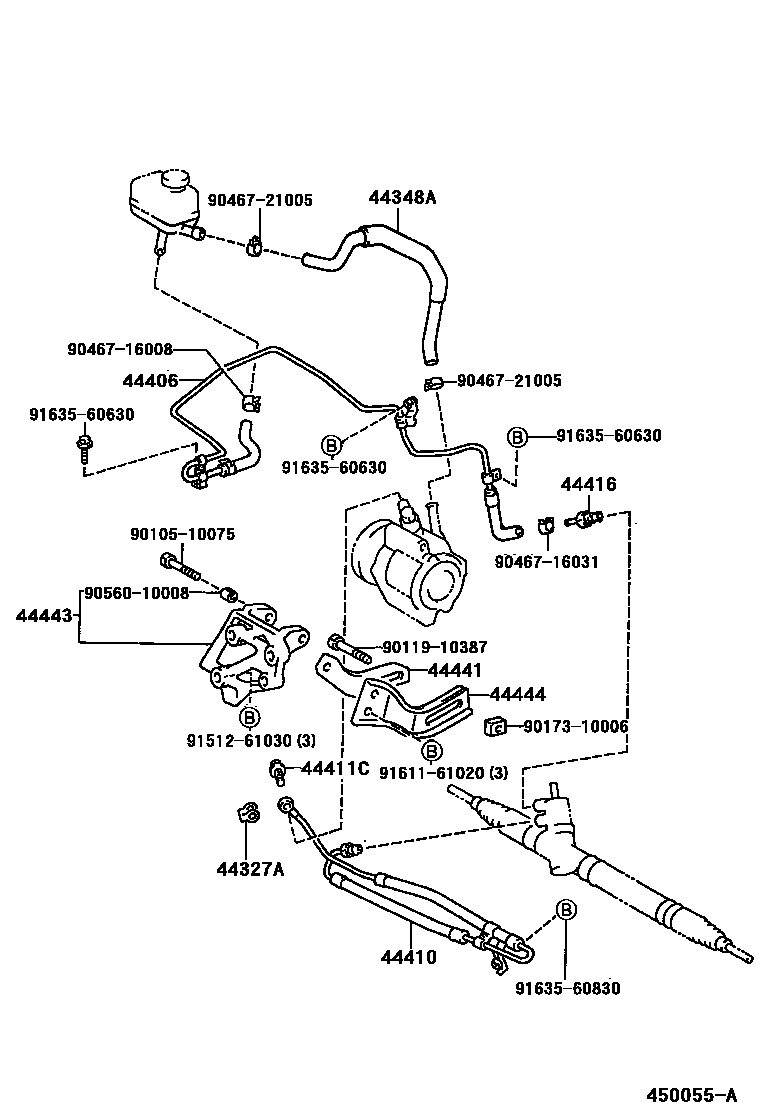

POWER STEERING TUBE

0001 1 0002 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030199309

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-20490199309

main44348-20500199309

44406TUBE SUB-ASSY, RETURN

main44406-20600199309

main44406-20610199309

44410TUBE ASSY, PRESSURE FEED

main44410-2B010199309-199602

main44410-2B130199508-199712

main44410-2B220199508

main44410-2B240199602

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16013199309-199310

main96341-41603199310

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-20220199309

44441BRACKET, PUMP, FRONT

main44441-32010199309

44443BRACKET, PUMP

main44443-20050199309

44444STAY, PUMP, REAR

main44444-20030199309

9010510075

main90105-10075

9011910387

main90119-10387

9017310006

main90173-10006

9046716008

main90467-16008

9046716031

main90467-16031

9046721005

main90467-21005

9056010008

main90560-10008

9151261030

main91512-61030

9161161020

main91611-61020

9163560630

main91635-60630

9163560830

main91635-60830

20 parts on this diagram · 2 diagrams in section
