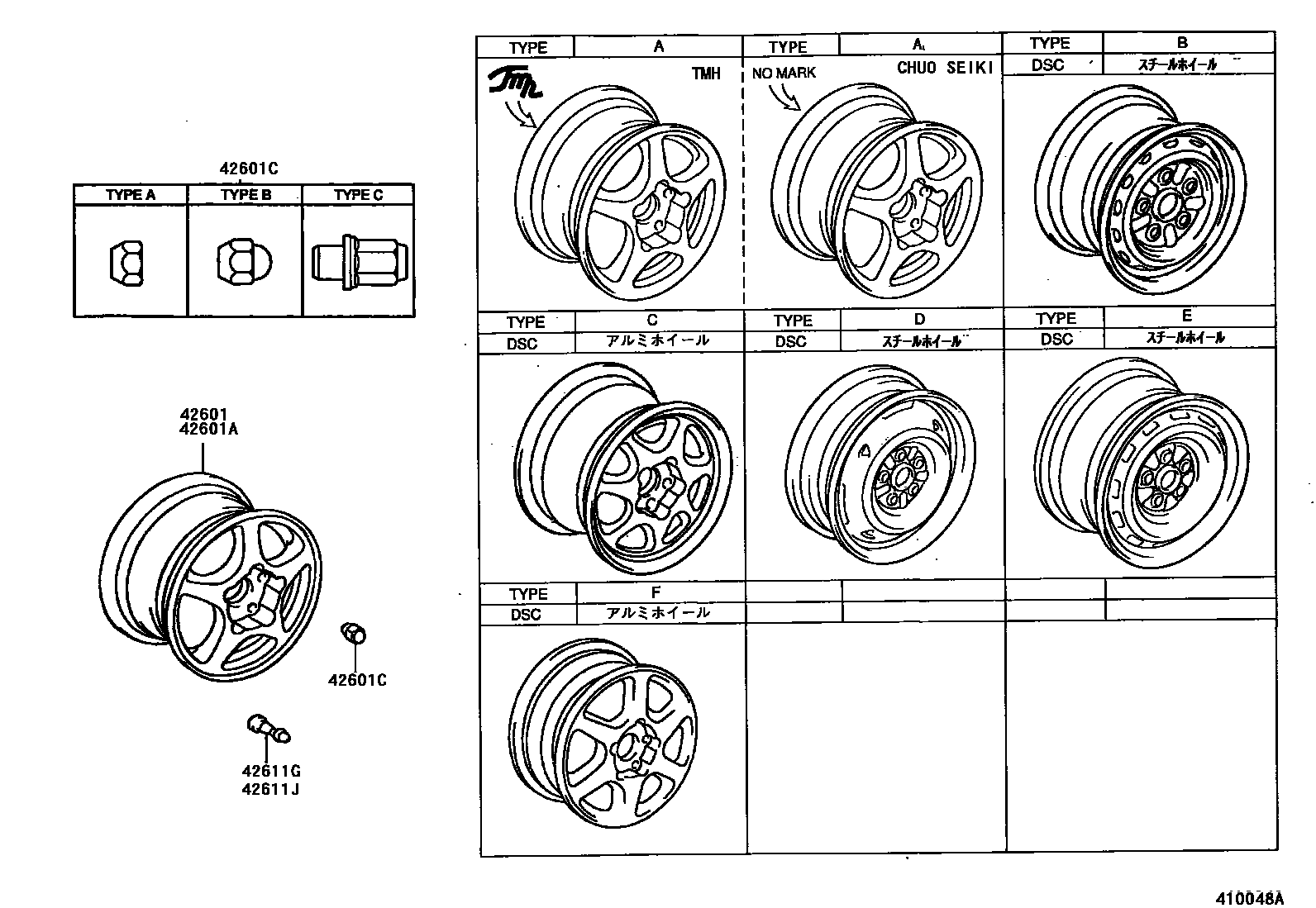

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-20880-01×4iST200,201,202,203..TR,TRR,TRX199309-199410

main42611-2B020×4iST202,203..200G199508-199804

main42611-2B060×4iST202,203,205..200GT,GT4WD,TRG,TRG4,TRR199309-199804

main42611-2B100×4iST200,202,203..180E,180G,200E,200G199508-199804

main42611-2B110×4iST202,203,205..200GT,GT4WD,TRG,TRG4,TRR199309-199804

main42611-2B120×4iST200,202,203..TR,TRX199410-199508

main42611-2B130×4iST202..200GT199511-199603

main42611-2B190×4iST200,202,203..180E,180G,200E,200G199606-199804

42601AWHEEL, DISC (FOR SPARE)

main42611-20840iST20#199309-199804

main42611-20880-01iST200,201,202,203..TR,TRR,TRX199309-199410

main42611-2B020iST202,203..200G199508-199804

main42611-2B060iST202,203,205..200GT,GT4WD,TRG,TRG4,TRR199309-199804

main42611-2B100iST200,202,203..180E,180G,200E,200G199508-199804

main42611-2B110iST202,203,205..200GT,GT4WD,TRG,TRG4,TRR199309-199804

main42611-2B120iST200,202,203..TR,TRX199410-199508

main42611-2B130iST202..200GT199511-199603

main42611-2B190iST200,202,203..180E,180G,200E,200G199606-199804

42601CNUT, HUB (FOR AXLE)

main90942-01007×20iST200,201,202,203..TR,TRR,TRX199309-199410

main90942-01021×20iST200,202,203,205..180E,180G,200E,200G,200GT,GT4WD,TRG,TRG4,TRR199309-199804

main90942-01058×20iST20#199309-199804

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iST20#199309

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iST20#199309

5 parts on this diagram · 3 diagrams in section
