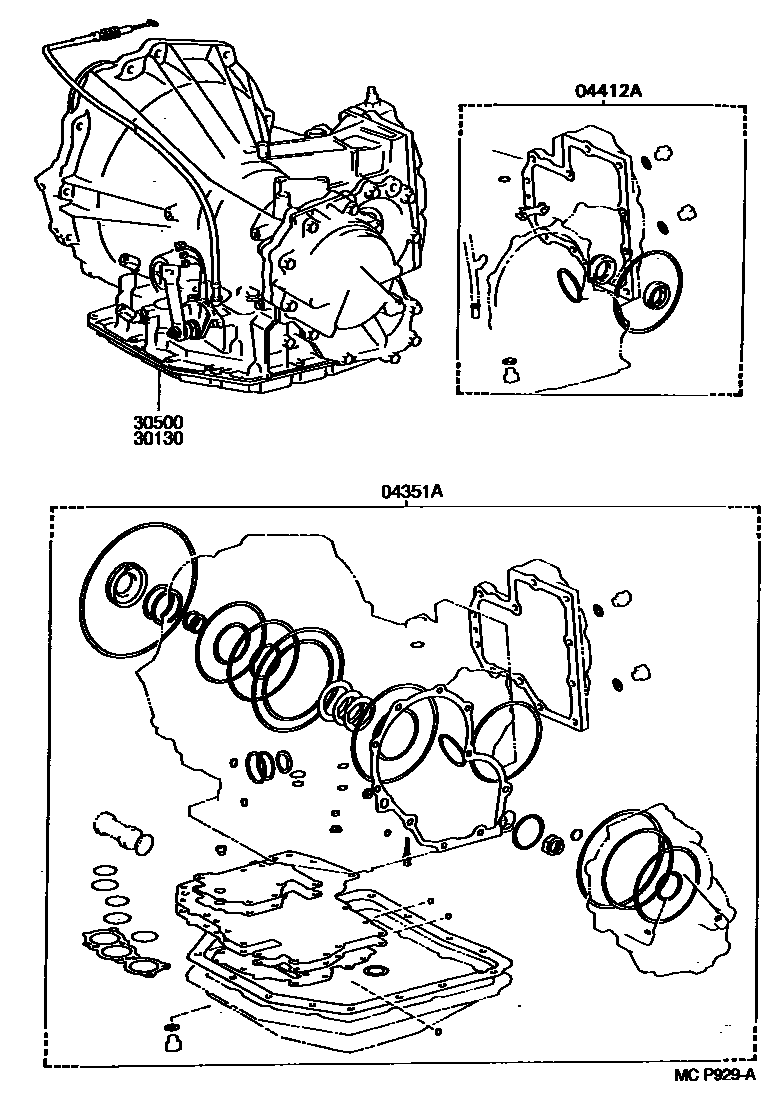

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1A140E 0002 1A540H

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-20080iST200,201..ATM199309-199804

main04351-20090iST202,203..ATM199309-199606

main04351-20090iST202..ATM..200GT199606-199804

main04351-20110iST202,203..ATM..(200E,200G,TRR,TRX)199402-199804

main04351-42010iST205..ATM199405-199804

04412AGASKET KIT, DIFFERENTIAL CARRIER(ATM)

main04412-16020iST200,201,202,203..ATM199309

30130TRANSAXLE ASSY, REBUILT

main30130-2B390iST200,201..ATM199309-199606

main30130-2B400iST202,203..ATM..(200E,200G,TRR,TRX)199309-199606

main30130-2B410iST202..ATM..(200GT,TRG)199309

main30130-2B430iST202,203..ATM..(200E,200G,TRR,TRX)199309-199606

main30130-2B610iST200..ATM199606

main30130-2B670iST202,203..ATM..(200E,200G)199606

30500TRANSAXLE ASSY, AUTOMATIC

main30500-2B390iST200,201..ATM199309-199606

main30500-2B400iST202,203..ATM..(200E,200G,TRR,TRX)199309-199606

main30500-2B410iST202..ATM..(200GT,TRG)199309

main30500-2B430iST202,203..ATM..(200E,200G,TRR,TRX)199309-199606

main30500-2B610iST200..ATM199606

main30500-2B670iST202,203..ATM..(200E,200G)199606

4 parts on this diagram · 2 diagrams in section
